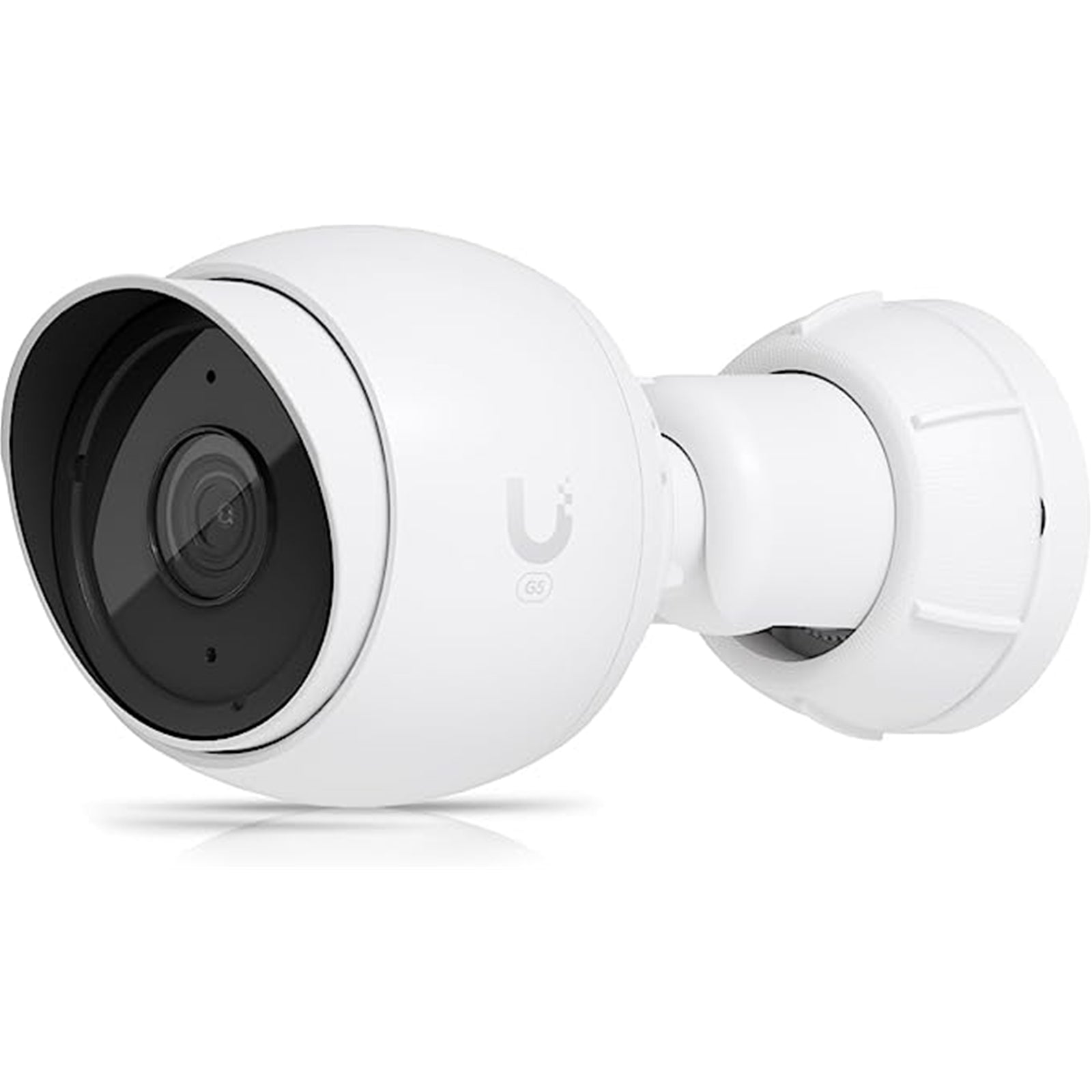

Ubiquiti UniFi Protect G5 Bullet 2K Indoor/Outdoor Security Camera

The Ubiquiti UVC-G5-Bullet delivers professional-grade surveillance with 2K HD resolution and 5MP CMOS sensor technology. This PoE-powered security camera captures detailed footage at 30 FPS with an 84.4° horizontal view angle, providing comprehensive coverage for both indoor and outdoor installations.

Advanced Imaging Technology

Equipped with a 5MP CMOS sensor, the G5 Bullet records at 2688 x 1512 resolution in 16:9 format. The fixed focal length lens delivers sharp, clear images with an 84.4° horizontal, 45.4° vertical, and 99.8° diagonal field of view. Built-in IR LED illumination with IR cut filter enables night vision up to 10 meters, ensuring 24/7 monitoring capability even in low-light conditions.

Weatherproof Construction

The IPX4-rated weatherproof enclosure protects against water splashes from any direction, making it suitable for outdoor installations. Built from polycarbonate and aluminum alloy materials with IK04 impact resistance, the camera withstands harsh environmental conditions. Operating temperature range of -20 to 40°C (-4 to 104°F) ensures reliable performance year-round.

Flexible Installation Options

The three-axis adjustment system allows precise positioning for optimal camera angles. Includes both wall mount and pole mount kits for versatile installation. Compact dimensions of 75.5 x 74.4 mm without mount (75.5 x 150 mm with wall mount) make it suitable for various mounting locations. Camera weighs 225g without mount, 315g with wall mount.

Network and Power

Powered via PoE (37-57V DC) through a 10/100 MbE RJ45 connection, eliminating the need for separate power cables. Maximum power consumption of 4W ensures energy-efficient operation. The dual-core ARM Cortex-A7 processor handles H.264 and MJPEG video compression efficiently.

UniFi Protect Integration

Managed through the UniFi Protect application (Version 2.2.7 or 2.7.18 and later for web, 1.10.0 and later for mobile on iOS and Android). Built-in microphone supports audio recording and can be disabled in software. Advanced image settings include color adjustment, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, noise reduction by motion, privacy masking, and text overlay.

Package Contents

• 1x UVC-G5-Bullet Camera
• 1x UVC-G5-Bullet Gland
• 1x Wall Mount Kit (Screws Included)
• 1x Pole Mount Kit

Certifications

FCC, IC, and CE certified for compliance with international standards.

Technical Specifications

Mechanical

Dimensions Without mount
75.5 x 74.4 mm (2.97 x 2.93")With wall mount: 75.5 x 150 mm (2.97 x 5.9")

Weight
Without mount: 225 g (7.94 oz) With wall mount: 315 g (11.11 oz)

Enclosure materials
Polycarbonate, aluminum alloy

Mount materials
Wall mount: aluminum alloy, polycarbonate

Pole mount
aluminum alloy

Weatherproofing
IPX4

Resistance
IK04

Optics

Sensor
5 MP CMOS sensor

Lens
Fixed focal length

View angle
H: 84.4°, V: 45.4°, D: 99.8°

Night mode
Built-in IR LED illumination and IR cut lter

Video

Video compression
H.264, MJPEG

Resolution
2688 x 1512 (16:9)

Max. frame rate
30 FPS

Image settings
Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay

System

Processor specs
Dual-core Arm Cortex -A7 based chip

Networking interface
10/100 MbE RJ45

Max power consumption
4W

Power method
PoE

Supported voltage range
37–57V DC

button
Factory reset

Mounting
Wall, pole mount

Operating temperature
-20 to 40 degree C (-4 to 104 degree F)

Operating humidity
0 to 90% noncondensing

Certifications
FCC, IC, CE

Audio

Microphone
Yes (Can be disabled in software)

Software
UniFi OS application
UniFi Protect

Mobile app
UniFi ProtectiOS and Android

Package contents
1x UVC-G5-Bullet Camera
1x UVC-G5-Bullet Gland
1x Wall Mount Kit (Screws Included)
1x Pole Mount Kit

• Camera Resolution: 2688x1512
• Camera Type: Bullet
• POE Capability: N/A
• Pack Size: Single
