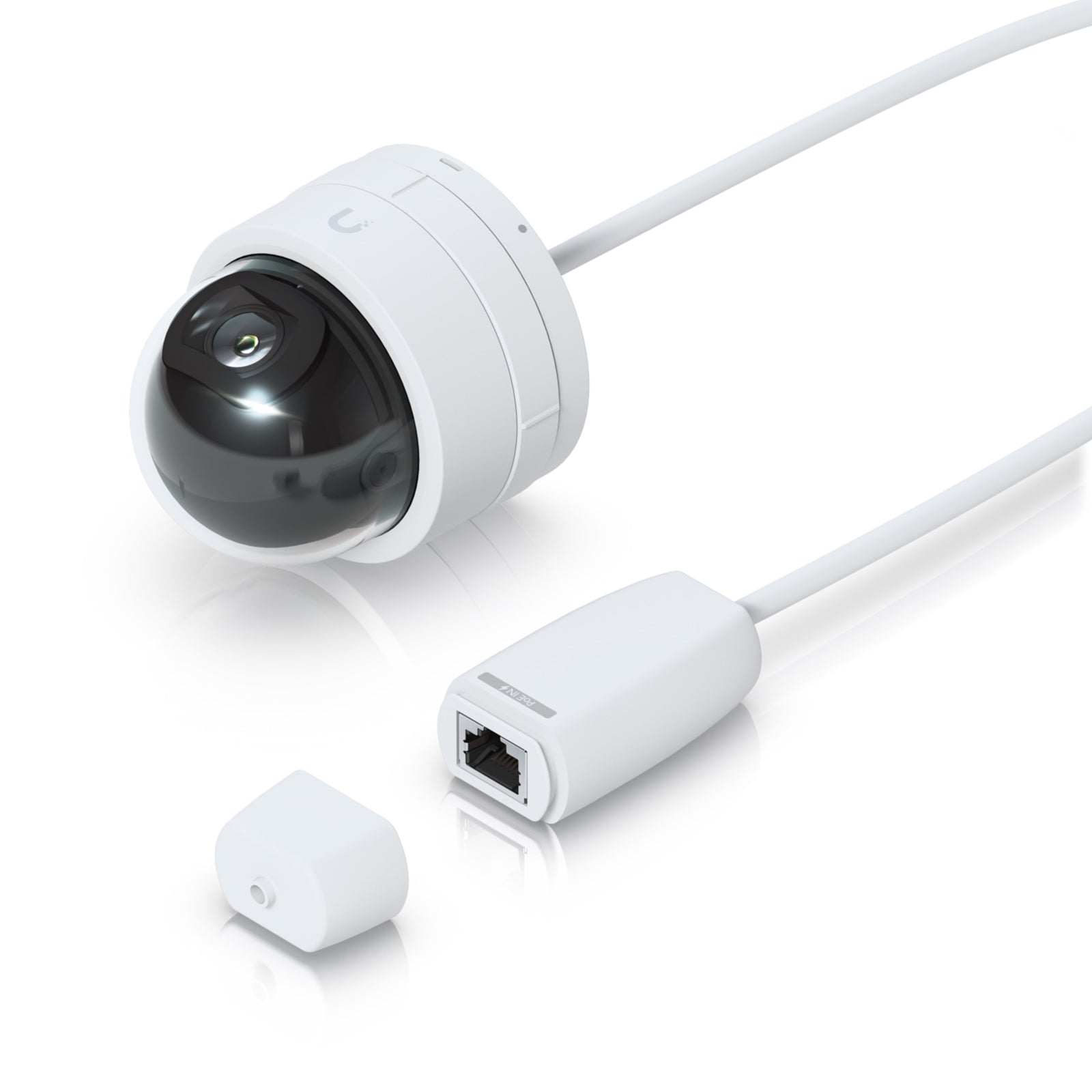

Ubiquiti UniFi Protect G5 Dome Ultra - Professional 2K HD PoE Security Camera

The Ubiquiti UVC-G5-DOME-ULTRA delivers professional-grade surveillance in an ultra-compact, tamper-resistant design. This 4MP PoE camera combines 2K HD video quality with advanced AI detection capabilities, making it an ideal solution for comprehensive indoor security monitoring.

2K HD Video Quality with Ultra-Wide Coverage

Featuring a 1/2.4" CMOS sensor, this camera captures crisp 2688 x 1512 resolution video at 30 FPS. The fixed focal length lens provides an ultra-wide 102.4° horizontal viewing angle, 54.9° vertical, and 120.6° diagonal coverage, minimizing blind spots and reducing the number of cameras needed for complete area coverage.

Advanced Night Vision and AI Detection

Built-in IR LED illumination with automatic IR cut filter enables clear monitoring up to 20 meters (65 feet) in complete darkness. The dual-core Arm Cortex-A7 processor powers AI event detection, intelligently identifying and alerting you to relevant security events while reducing false alarms.

Tamper-Resistant Construction

The aluminum alloy and polycarbonate enclosure with stainless steel mount achieves IK06 impact resistance rating. At just 175 grams and measuring 63.6mm diameter x 68.2mm height, this low-profile camera installs discreetly while resisting tampering attempts. Optional flush mount accessories enable seamless in-ceiling installation.

Simple PoE Installation

Single-cable PoE connectivity (37-57V DC) provides both power and network connection through the 10/100 Mbps Ethernet port, with maximum power consumption of just 4.2W. This simplifies installation and reduces cable clutter while ensuring reliable operation.

Professional Image Control

Comprehensive image settings include adjustable color, brightness, sharpness, contrast, white balance, and exposure control. Advanced noise reduction features (2DNR, 3DNR, NR by motion) ensure clear footage in varying lighting conditions. Privacy masking and text overlay capabilities provide additional customization options.

Reliable Performance

Designed for continuous operation in ambient temperatures from -20°C to 40°C (-4°F to 104°F) and humidity levels from 10-90% non-condensing. FCC, IC, and CE certified for quality and compliance assurance.

2K (4MP) video resolution
Ultra-wide viewing angle (102.4 degrees)
20 m (65 ft) IR night vision
AI event detections
Connect and power using PoE
Optional Flush Mount for in-ceiling installation

Dimensions
dia63.6 x 68.2 mm (dia2.5 x 2.7")

Weight
175 g (6.2 oz)

Enclosure Material
Aluminum alloy, polycarbonate

Mount Material
Stainless steel

Resistance
IK06

Sensor
1/2.4" CMOS

Lens
Fixed focal length

View Angle
H: 102.4deg, V: 54.9deg, D: 120.6deg

Night Mode
Built-in IR LED illumination and IR cut filter

IR Distance
20 m (65 ft)

Resolution
4MP 2688 x 1512 (16:9)

Max. Frame Rate
30 FPS

Image Settings
Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay

Processor
Dual-core Arm Cortex-A7 based chip

Networking Interface
10/100 MbE RJ45 port

Max. Power Consumption
4.2W

Power Method
POE

Supported Voltage Range
37–57V DC

Button
Factory Reset

Mounting
Surface Mount

Ambient Operating Temperature
-20 to 40deg C (-4 to 104deg F)

Ambient Operating Humidity
10 to 90% noncondensing

Certifications
FCC, IC, CE

• Camera Resolution: 4MP
• Camera Type: Dome
• POE Capability: 48v
• Pack Size: Single
