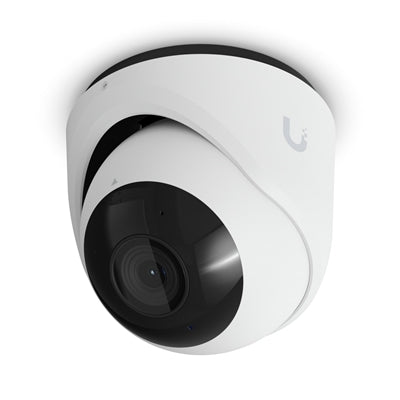

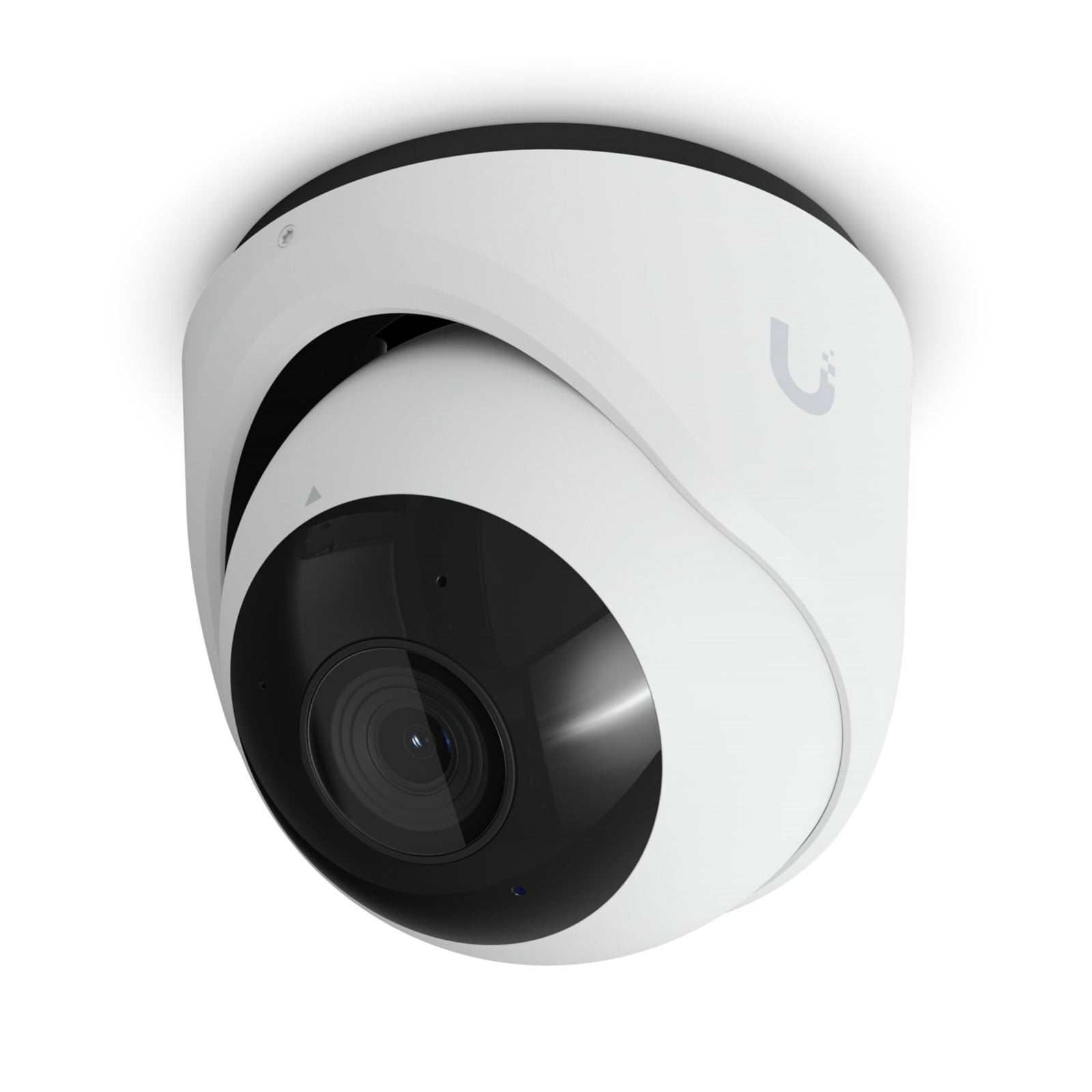

Ubiquiti UVC-G6-Turret-W 4K PoE Security Camera

The Ubiquiti UVC-G6-Turret-W delivers professional-grade surveillance with its 1/1.8" 8MP image sensor capturing 4K resolution at 30 FPS. Designed for UniFi Protect systems, this turret camera combines advanced AI processing with weatherproof construction for reliable outdoor monitoring.

Advanced AI Detection Capabilities

Equipped with a Multi-TOPS AI Engine, this camera provides intelligent detection for people, vehicles, and animals. The built-in face recognition and license plate recognition features enable precise identification and monitoring. Smart detection algorithms reduce false alerts by distinguishing between actual threats and environmental changes.

Professional Image Quality

The 8MP sensor delivers 3864 x 2160 resolution with a comprehensive 109.9° horizontal, 56.7° vertical, and 134.1° diagonal field of view. Built-in IR LED illumination provides clear night vision up to 30 meters. Image settings include HDR, 2DNR, 3DNR, adjustable brightness, contrast, sharpness, and exposure control for optimal performance in varying lighting conditions.

Durable All-Weather Construction

IP66 weatherproofing protects against rain, snow, and dust, while IK04 tamper resistance guards against physical interference. The aluminum alloy and polycarbonate enclosure withstands ambient temperatures from -30°C to 50°C. At 550g, the compact 100 x 95mm housing installs easily on ceilings or walls with included mounting hardware.

Flexible Installation & Power

3-axis manual adjustment allows precise camera positioning after installation. PoE capability (37-57V DC) simplifies deployment with a single cable for both power and data through the 10/100 MbE RJ45 port. Maximum power consumption of 12.5W ensures efficient operation. Optional arm, pendant, and junction box mounts accommodate various installation requirements.

Technical Specifications

Powered by a quad-core Arm Cortex-A53 processor, the camera handles advanced AI processing locally. The integrated microphone captures audio for comprehensive surveillance. NDAA compliant certification ensures government and enterprise deployment compatibility. CE, FCC, and IC certifications verify quality and safety standards.

Overview

Dimensions
100 x 95 mm
(3.9 x 3.7")

IR Night Vision
30 m (98 ft)

Face Recognition
Yes

License Plate Recognition
Yes

Smart Detections (People, Vehicles, Animals)
Yes

Resolution
4K

Field of View
H: 109.9°, V: 56.7°, D: 134.1°

Audio
Microphone

Weatherproofing
IP66

Tamper Resistance
IK04

Mounting
Ceiling, wall (Included)
Arm, pendant, junction box (Optional)

Performance

Networking Interface
10/100 MbE RJ45 port

Video

Image Settings
Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay, HDR

Max. Frame Rate
30 FPS

Resolution
8MP 3864 x 2160 (16:9)

Optics

Sensor
1/1.8" 8MP

Lens
Fixed focal length

Night Mode
Built-in IR LED illumination and IR cut filter

Hardware

Max. Power Consumption
12.5W

Supported Voltage Range
37–57V DC

Power Method
PoE

Processor
Quad-core Arm Cortex-A53 based chip

Weight
550 g (1.2 lb)

Enclosure Material
Aluminum alloy, polycarbonate

Button
(1) Factory-reset

Cable

Cable Connector Type
RJ45

Cable Length
30 cm (1 ft)

Jacket Material
Thermoplastic elastomer

Jacket Enclosure Dimensions
20 x 70.6 mm (0.8 x 2.8")

Jacket Enclosure Material
Thermoplastic elastomer, polycarbonate, silicone rubber

Ambient Operating Temperature
-30 to 50 C (-22 to 122 F)

Ambient Operating Humidity
0 to 90% noncondensing

NDAA Compliant
Yes

Certifications
CE, FCC, IC

• Camera Resolution: 4K
• Camera Type: Turret
• POE Capability: 48v
• Pack Size: Single
