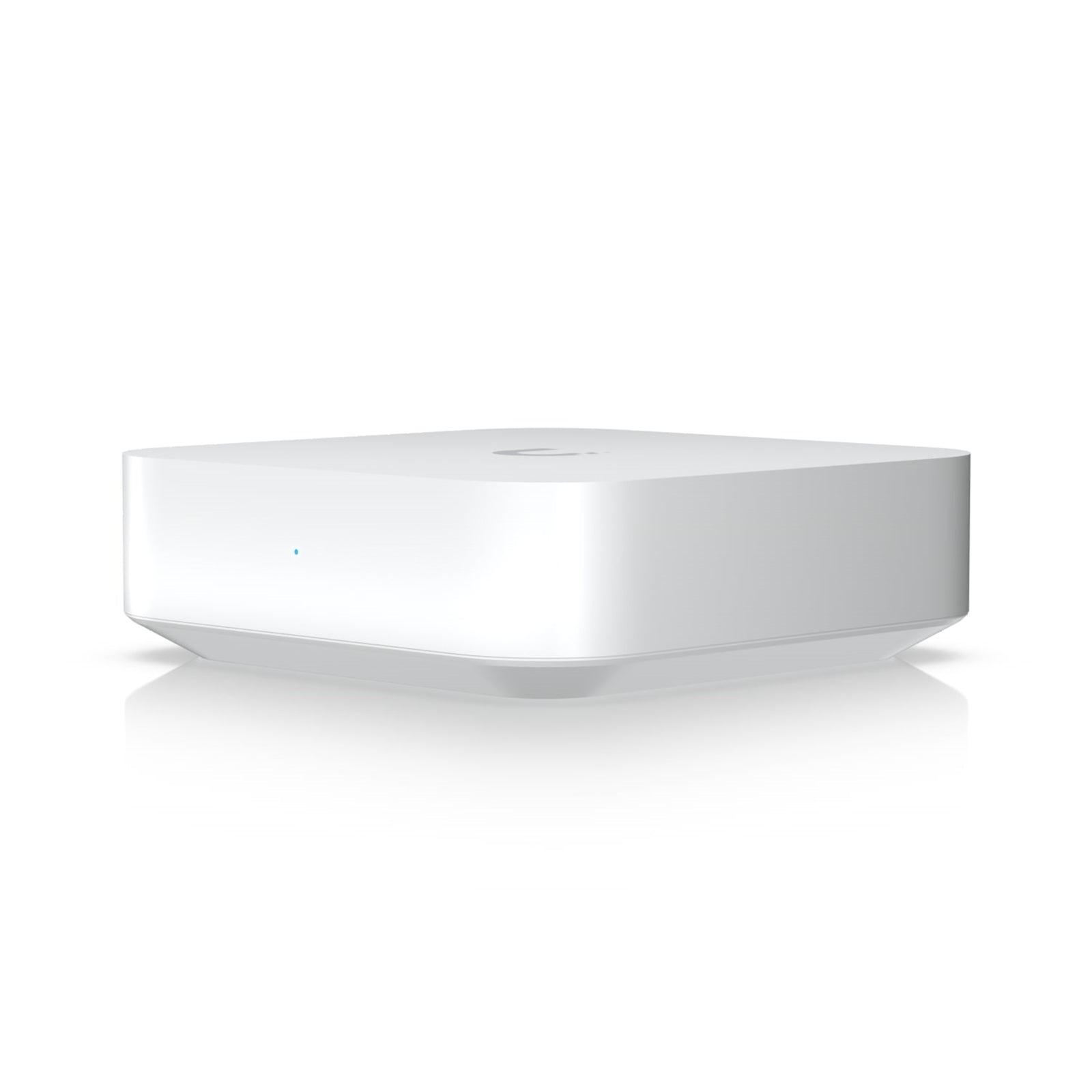

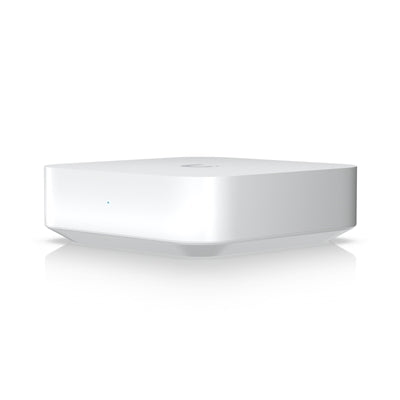

Ubiquiti UXG-Lite UniFi Security Gateway - High-Performance Compact Router

Includes UK USB C Power Supply

The Ubiquiti UniFi UXG-Lite delivers enterprise-grade routing and security features in a compact 98 x 98 x 30mm footprint. Designed for small businesses and advanced home networks, this gateway provides up to 10x routing performance increase over the legacy UniFi USG, particularly when operating with IPS/IDS, QoS, and Smart Queues enabled.

Performance and Management

Powered by a dual-core ARM Cortex-A53 processor at 1 GHz with 1 GB DDR3L memory, the UXG-Lite handles demanding network tasks efficiently. The device integrates seamlessly into UniFi ecosystems, managed via Cloud Key, Official UniFi Hosting, or UniFi Network Server running version 8.0.7 or later. Bluetooth 5.1 support enables simplified setup and management.

Connectivity and Ports

The gateway features one Gigabit Ethernet WAN port and one Gigabit Ethernet LAN port, providing reliable wired connectivity for network expansion. USB-C power delivery (5V/3A) with included UK adapter supports 100-240V input, consuming a maximum of 3.83W during operation.

Advanced Security Features

Next-generation security capabilities include application-aware firewall rules and signature-based IPS/IDS threat detection. The UXG-Lite supports content, country, domain, and ad filtering, alongside VLAN/subnet-based traffic segmentation and full stateful firewall protection. These features provide comprehensive network security without compromising performance.

Quality of Service and Traffic Management

WiFi QoS integration with UniFi Access Points ensures optimal wireless performance. Application, domain, and country-based QoS policies enable precise traffic prioritization. The gateway identifies applications and device types automatically, while providing internet quality monitoring and outage reporting for proactive network management.

Advanced Networking Capabilities

License-free SD-WAN functionality enables intelligent multi-WAN routing. VPN support includes WireGuard, L2TP, and OpenVPN server capabilities, plus OpenVPN client and IPsec site-to-site VPN. One-click Teleport and Identity Enterprise VPN simplify remote access deployment. Additional features include policy-based WAN and VPN routing, DHCP relay, customizable DHCP server, IGMP proxy, and IPv6 ISP support.

Technical Specifications

Mechanical: Polycarbonate enclosure measuring 98 x 98 x 30mm, weighing 320g

Hardware: Dual-core ARM Cortex-A53 at 1 GHz, 1 GB DDR3L memory, Ethernet and Bluetooth 5.1 management interfaces

Networking: 1x GbE RJ45 WAN port, 1x GbE RJ45 LAN port

Power: USB Type-C (5V/3A), 100-240V input, 3.83W max consumption

Environment: Operating temperature -10 to 40°C, humidity 5-95% non-condensing

Certifications: CE, FCC, IC

Package Contents

1x UXG-Lite gateway, 1x USB-C power adapter (UK)

• Ports: 2
• Firewall: Yes
• Rack Mountable: No
