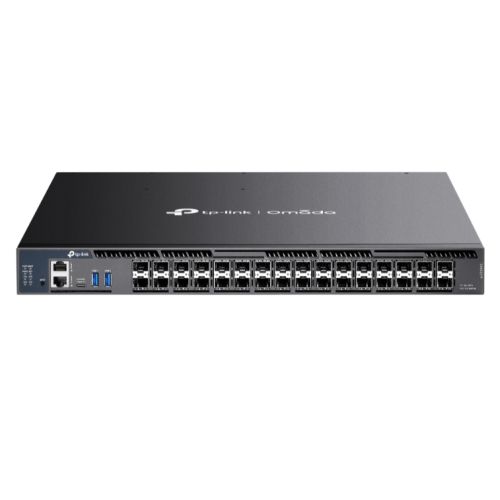

TP-LINK Omada SX6632YF 10G/25G Stackable L3 Managed Aggregation Switch

The TP-LINK SX6632YF delivers enterprise-grade network aggregation with 26x 10G SFP+ slots and 6x 25G SFP28 slots, providing 820 Gbps switching capacity per unit. Designed for SMB, enterprise, and ISP convergence layer deployments, this stackable L3 managed switch combines high-speed fiber connectivity with comprehensive routing protocols and redundant power architecture.

High-Performance Fiber Connectivity

The SX6632YF features all-fiber port configuration with 26x 10 Gbps SFP+ slots and 6x 25 Gbps SFP28 slots, delivering 820 Gbps switching capacity and 610.1 Mpps packet forwarding rate. Physical stacking supports up to 8 units with 300 Gbps stack bandwidth, achieving combined 6560 Gbps capacity for scalable network infrastructure with built-in redundancy.

Complete Layer 3 Routing Capabilities

This L3 managed switch supports Static Routing, RIP v1/v2, OSPF v2/v3, ECMP with 256 entries, and VRRP v2/v3 for up to 64 groups. PIM-DM multicast routing ensures efficient multicast group management. The switch handles up to 256 IPv4 and 256 IPv6 interfaces, with 2,048 IPv4 and 1,024 IPv6 static routes, plus 15,300 host route table entries for complex network topologies.

Enterprise-Grade Reliability

Built for mission-critical environments, the SX6632YF includes two field-replaceable hot-swappable redundant power supplies (100-240 VAC). VRRP protocol provides gateway redundancy, while ERPS supports up to 64 rings for rapid protection and recovery in ring topology deployments. The 128K MAC address table and dual image/configuration support ensure continuous operation.

Advanced Security and QoS

Security features include IEEE 802.1X authentication, ACL support for IPv4 and IPv6, Dynamic ARP Inspection, Port Security, DoS Defend, and MAB. Traffic management utilizes Class of Service, bandwidth control, and flow-based actions. The switch supports 4,093 IGMP groups, 256 VLAN VPN entries, and comprehensive storm control for broadcast, multicast, and unknown-unicast traffic.

Flexible Management Options

Integrate with Omada SDN platform for centralized cloud management via hardware controller, cloud-based controller, or software controller. Zero-Touch Provisioning simplifies deployment. Standalone management available through web GUI, CLI (console/telnet/SSH), SNMP v1/v2c/v3, and RMON. Additional protocols include 802.3ah OAM, LLDP/LLDP-MED, sFlow, and DDM for comprehensive monitoring.

ISP and Service Provider Features

The SX6632YF includes specialized ISP features: L2PT (Layer 2 Protocol Tunneling), Device Link Detect Protocol (DLDP), PPPoE ID Insertion, and 802.3ah Ethernet Link OAM. GVRP, QinQ VLAN VPN, and Protocol VLAN support service provider network requirements. ERPS ring protection and RSPAN enable carrier-grade reliability and monitoring.

Specifications: Rackmountable 1U chassis (440 x 380 x 44 mm), operates -5°C to 50°C at 300m elevation, includes power cord, rackmount kit, rubber feet, and console cables. Ships with one PSM550-AC power module; second redundant PSU sold separately. Limited lifetime warranty.
