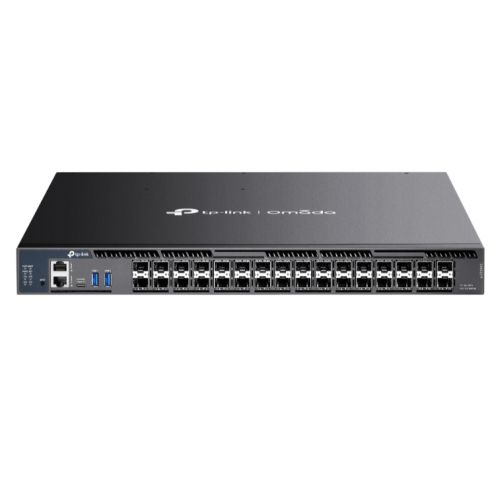

Omada 26-Port 10G Stackable L3 Managed Aggregation Switch with 6 25G Slots

• 26x 10G SFP+ slots and 6x 25G SFP28 slots
• 820 Gbps switching capacity
• Physical Stacking for built-in redundancy and performance
• L3 features: RIP, OSPF, ECMP, VRRP, PIM-DM, DHCP Server/Relay
• Security Strategies: ACL, Port Security, DoS Defend, 802.1X
• Highly Available with two field-replaceable power supplies, VRRP, and ERPS
• Centralized cloud management via the Omada SDN controller
• Standalone management via web, CLI, SNMP, and RMON

Description

Specification

• Rackmountable: Yes
• Managed: Yes
• Number of Ports: 26
• #Hide#Max SFP Transfer Rate: 25G SFP
• Interface(s): 6 x 10/25G SFP28 Slots
  26 x 1/10G SFP+ Slots
  2 x USB 3.0 Ports
  1 x RJ45 Console Port
  1 x USB Type C Console Port
  1 x RJ45 Management Port
• Bandwidth: Stack Bandwidth: Up to 300 Gbps (6 stack ports)
• Switching Capacity: 820 Gbps
• Power Supply: "Two field-replaceable and hot-swappable redundant power supplies (100–240 VAC, 50/60 Hz)

  *Ships with one PSM550-AC module by default, and another field-replaceable redundant power supply requires a separate purchase."
• Dimensions: 440 x 380 x 44 mm
• Mac Address Table: 128 K
• Packet Forwarding Rate: 610.1 Mpps
• Jumbo Frame: 9KB
• Additional Features: Automatic Device Discovery
  Automatic Device Discovery
  Batch Configuration
  Batch Firmware Upgrading
  Intelligent Network Monitoring
  Abnormal Event Warnings
  Unified Configuration
  Reboot Schedule

  ISP Features:
  802.3ah Ethernet Link OAM
  L2PT (Layer 2 Protocol Tunneling)
  Device Link Detect Protocol (DLDP)
  DDM
  sFlow
  PPPoE ID Insertion
• Quality of Service: Class of Service
  Bandwidth Control
  User-Defined OUI
  Smoother Performance
  Action for Flows
• Layer Features: "L3:
  IP Interfaces: IPv4: Max 256, IPv6: Max 256
  Static Routing: IPv4: Max 2,048, IPv6: Max 1,024
  Host Route Table: Max 15,300 entries
  RIP: Version v1/v2, Max 102,400
  OSPF: Version v2/v3;
  VRRP: Version v2/v3, Max 64 groups
  ECMP: 256 entries, max 32 ECMP Nexhops per Destination
  Static ARP - 1,024 static entries
  Dynamic ARP - 24,576 dynamic entries
  Proxy ARP
  DHCP Server
  DHCP Relay

  "
• .: "L2 and L2+:
  Link Aggregation
  Spanning Tree Protocol
  Loopback Detection
  Flow Control
  Supports 4,093 IGMP groups
  ERPS: Up to 64 ERPS rings
  Mirroring
  RSPAN
  Mac Address
  Virtual MAC (only supported in standalone mode)"
• VLAN: "VLAN Group (802.1q VLAN)
  802.1Q Tagged VLAN
  MAC VLAN entries: 200
  Multicast VLAN
  Management VLAN
  VLAN VPN (QinQ): Max 256 entries
  GVRP
  Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries
  VLAN VPN
  Voice VLAN
  Private VLAN"
• Security: Port Isolation
  CPU-Deffend
  ARP Inspection (Dynamic ARP Inspection)
  DoS Defend
  IP-MAC-Port Binding
  IPv6-MAC
  DHCP Filter
  Static/Dynamic Port Security
  Broadcast/Multicast/Unknown-unicast Storm Control
  802.1X
  AAA (including TACACS+)
  Secure web management through HTTPS with SSLv3/TLS 1.2
  Secure Command Line Interface (CLI) management with SSHv2
  IP/Port/MAC based access control
• Management: " Omada App, Centralized Management & Cloud Access :
  Requires Omada Hardware, Cloud-Based or Software Controller

  Zero-Touch Provisioning :
  Requires Omada Cloud-Based Controller

  "
• .: " Management Features :
  Web-based GUI
  Command Line Interface (CLI) through console port, telnet
  SNMPv1/v2c/v3
  SDM Template
  DHCP/BOOTP Client
  802.1ab LLDP/LLDP-MED
  DHCP Auto Install
  Dual Image, Dual Configuration
  CPU Monitoring
  Cable Diagnostics
  Password Recovery
  SNTP
  System Log"
• Environment: "Operating Temperature:
  -5 °C to 50 °C (23 °F to 122 °F) @ 300 meters
  -5 °C to 45 °C (23 °F to 113 °F) @ 2,000 meters
  -5 °C to 40 °C (23 °F to 104 °F) @ 3,000 meters

  Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)
  Operating Humidity: 10–90% RH non-condensing
  Storage Humidity: 5–90% RH non-condensing"
• Package Contents: SX6632YF Switch
  Power Cord
  Quick Installation Guide
  Rackmount Kit
  Rubber Feet
• Package Type: Retail
• Package Weight: 10.1100 kg
• Warranty: Limited Lifetime
• #Hide#POE: No
