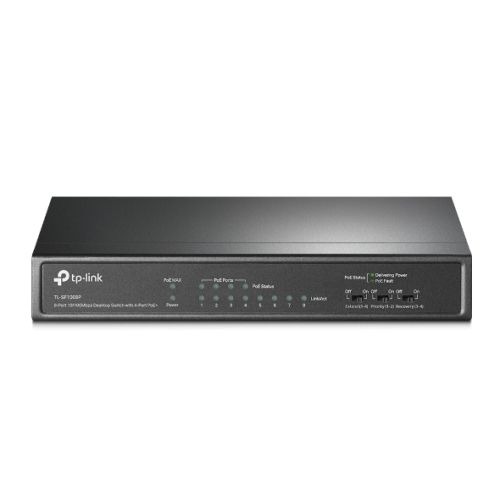

TP-Link TL-SF1008P 8-Port Desktop Switch with 4-Port PoE+

The TP-Link TL-SF1008P is an 8-port 10/100Mbps unmanaged desktop switch featuring 4 PoE+ ports with a 66W power budget. This steel-cased switch delivers reliable network connectivity and power to IP cameras, access points, VoIP phones, and other IEEE 802.3af/at compliant devices without requiring separate power adapters.

PoE+ Power Delivery for Multiple Devices

Four dedicated PoE+ ports support up to 30W per port with a total 66W power budget across all PoE ports. The switch automatically detects and delivers the required power to connected devices while protecting both PoE and non-PoE equipment from damage. When total consumption exceeds 66W, intelligent power management prioritizes higher-priority ports to maintain stable operation.

Extended Range for IP Surveillance

Extend Mode enables PoE transmission distances up to 250 meters, making this switch ideal for deploying IP cameras in large areas such as warehouses, parking lots, or campus environments. In this mode, port speeds downgrade to 10Mbps to maintain stable power delivery over extended distances.

Priority Mode and Auto Recovery

Priority Mode ensures ports 1-2 receive higher priority for bandwidth-sensitive applications like video surveillance in critical areas. PoE Auto Recovery automatically detects and reboots unresponsive or offline powered devices, eliminating the need for manual intervention and ensuring continuous operation of your network infrastructure.

Fanless Design and Durable Construction

The fanless design reduces power consumption and operates silently, making it suitable for noise-sensitive environments like offices and retail spaces. High-quality metal casing protects internal components and ensures long-term reliability through rigorous testing standards.

Plug-and-Play Installation

No configuration required. Simply connect your devices and the switch handles the rest with auto-negotiation and auto MDI/MDIX support. The 1.6 Gbps switching capacity and 1.1904 Mpps packet forwarding rate ensure smooth data transfer for your network.

8-Port 10/100Mbps Desktop Switch with 4-Port PoE+

• 8x 10/100 Mbps RJ45 ports
• 4x PoE+ ports transfer data and power on individual cables
• Works with IEEE 802.3af/at compliant PDs
• Supports PoE Power up to 30 W for each PoE port
• Supports PoE Power up to 66 W for all PoE ports
• Up to 250m data and power transmitting range under Extend Mode
• Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
• PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
• Fanless Design reduces power consumption and works silently in its location
• Plug and play with no configuration required

Dedicated 8-Port Switch with 4-Port PoE+ (66 W Budget) for Numerous Applications

Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 66 W PoE power budget for the 4× PoE ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

Dedicated Design for IP Surveillance—Up to 250 m Transmissions

With extend mode, the PoE transmission distance reaches up to 250 m—perfect for IP Camera deployment in large areas.

*The speed of the ports in extend mode will downgrade to 10 Mbps. The actual transmission distance may vary due to power consumption of PoE-powered devices or the cable quality and type.

Priority Video Quality Guaranteed

Quality of sensitive applications like video monitoring in critical business areas is guaranteed by offering higher priority options for ports 1–2 when one-touch Priority Mode is on.

System Self-Healing with PoE Auto Recovery

The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without need for manual monitoring and restart.

Intelligent Power Management

When total power consumption exceeds 66 W, the intelligent power management will cut the lower priority port power. This ensures the high priority port's power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

Durable Metal Casing

The interior components of TL-SF1008P are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SF1008P delivers switching performance you can depend on.

Specification

• Rackmountable: No
• Managed: No
• Number of Ports: 8
• Max RJ45 Transfer Rate: 10/100 Mbps
• Interface(s): 8 x 10/100 Mbps RJ45 Ports (4× 10/100 Mbps 802.3af/at PoE+ ports)
  AUTO Negotiation
  AUTO MDI/MDIX
• PoE Ports (RJ45): Standard: 802.3 af/at compliant
  PoE Ports: Ports 1–4
  Power Supply: 66 W
• Switching Capacity: 1.6 Gbps
• Power Supply: External Power Adapter (Output: 53.5 V DC / 1.31 A)
• Dimensions: 6.7 x 3.9 x 1.1 in. (171 x 98 x 27 mm)
• Transfer Method: Store-And-Forward
• Mac Address Table: 2K
• Packet Forwarding Rate: 1.1904 Mpps
• Jumbo Frame: 2 KB
• Additional Features: See Overview
• Security: Physical Security Lock
• Environment: Operating Temperature: 0C~40C (32F~104F)
  Storage Temperature: -40C~70C (-40F~158F)
  Operating Humidity: 10%~90% non-condensing
  Storage Humidity: 5%~90% non-condensing
• Package Contents: TL-SF1008P
  Power Adapter
  User Guide
• Package Type: Retail
• Package Weight: 1.0800 kg
• Warranty: Lifetime Warranty
• #Hide#POE: Yes
