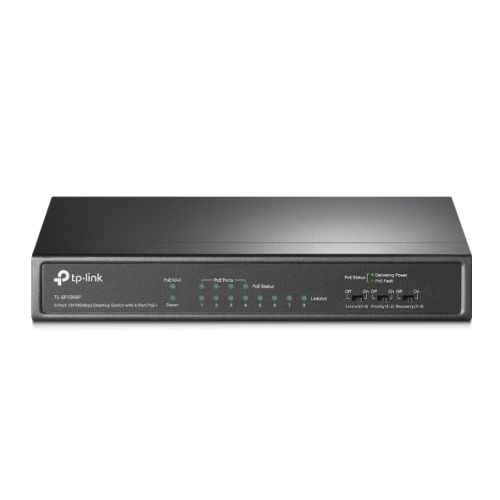

8-Port 10/100Mbps Desktop Switch with 4-Port PoE+

• 8x 10/100 Mbps RJ45 ports
• 4x PoE+ ports transfer data and power on individual cables
• Works with IEEE 802.3af/at compliant PDs
• Supports PoE Power up to 30 W for each PoE port
• Supports PoE Power up to 66 W for all PoE ports
• Up to 250m data and power transmitting range under Extend Mode
• Priority Mode ensures high priority of ports 1–2 to guarantee the quality of sensitive application
• PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
• Fanless Design reduces power consumption and works silently in its location
• Plug and play with no configuration required

Description

Specification

• Rackmountable: No
• Managed: No
• Number of Ports: 8
• Max RJ45 Transfer Rate: 10/100 Mbps
• Interface(s): 8 x 10/100 Mbps RJ45 Ports (4× 10/100 Mbps 802.3af/at PoE+ ports)
  AUTO Negotiation
  AUTO MDI/MDIX
• PoE Ports (RJ45): Standard: 802.3 af/at compliant
  PoE Ports: Ports 1–4
  Power Supply: 66 W
• Switching Capacity: 1.6 Gbps
• Power Supply: External Power Adapter (Output: 53.5 V DC / 1.31 A)
• Dimensions: 6.7 x 3.9 x 1.1 in. (171 x 98 x 27 mm)
• Transfer Method: Store-And-Forward
• Mac Address Table: 2K
• Packet Forwarding Rate: 1.1904 Mpps
• Jumbo Frame: 2 KB
• Additional Features: See Overview
• Security: Physical Security Lock
• Environment: Operating Temperature: 0C~40C (32F~104F)
  Storage Temperature: -40C~70C (-40F~158F)
  Operating Humidity: 10%~90% non-condensing
  Storage Humidity: 5%~90% non-condensing
• Package Contents: TL-SF1008P
  Power Adapter
  User Guide
• Package Type: Retail
• Package Weight: 1.0800 kg
• Warranty: Lifetime Warranty
• #Hide#POE: Yes
