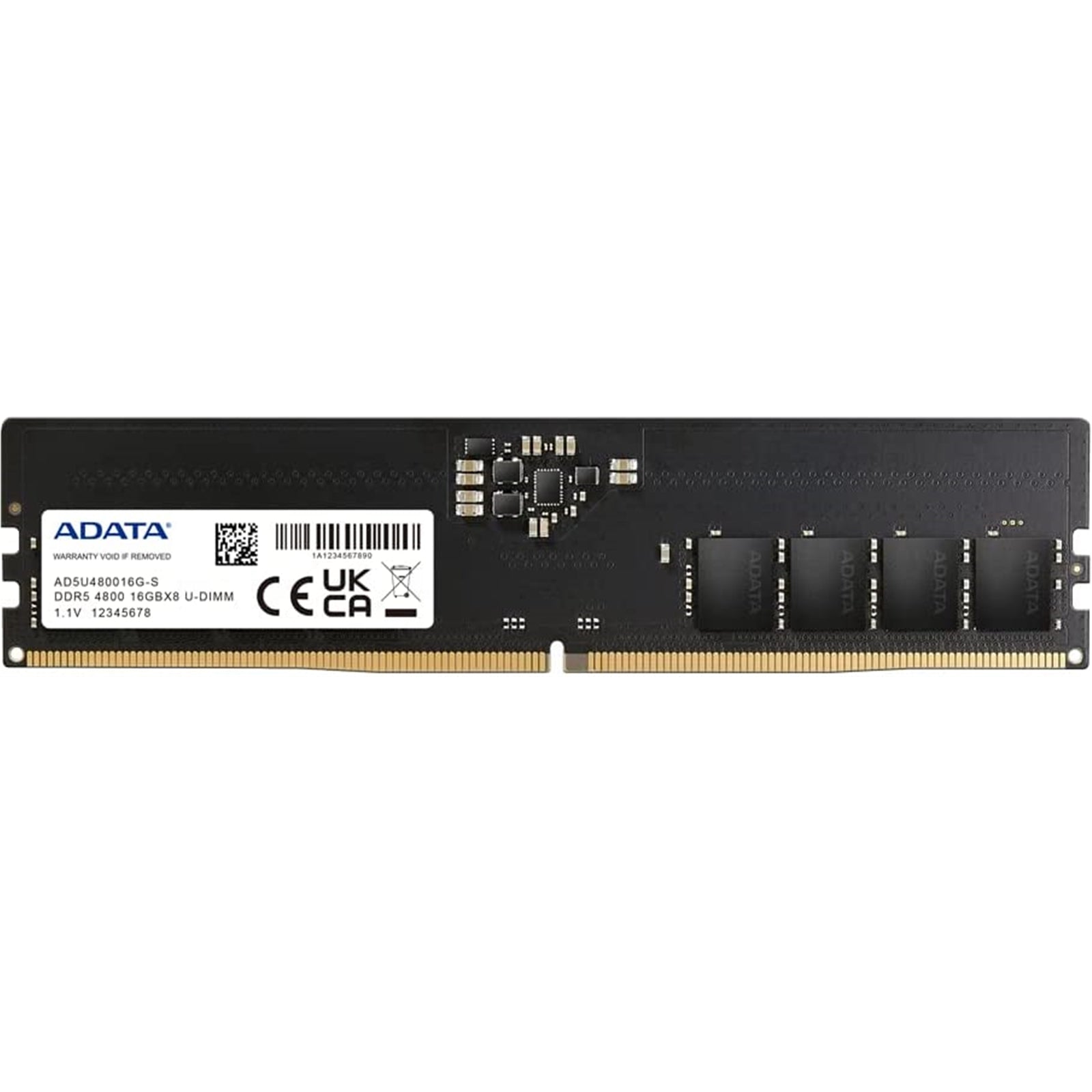

ADATA Premier DDR5 16GB Desktop Memory Module

The ADATA AD5U480016G-S delivers DDR5 performance for desktop systems requiring reliable, high-speed memory. This 16GB U-DIMM module operates at 4800MHz with PC5-38400 compliance, providing 38.4GB/s bandwidth for demanding applications and multitasking workloads.

DDR5 Performance Specifications

This 288-pin memory module features CL40 latency and operates at 1.1V, making it 8% more power-efficient than DDR4 modules. The integrated Power Management IC (PMIC) ensures stable power delivery during operation. With frequencies reaching 4800 MT/s, this module represents a significant performance increase over DDR4-3200's maximum frequency.

Error Correction and Reliability

Built-in error correcting code (ECC) technology automatically corrects errors in real-time, reducing CPU calculation overhead and providing enhanced stability for enterprise-class systems and workstations. This feature ensures data integrity during memory-intensive operations.

Enhanced Architecture

DDR5 architecture doubles the capacity potential of DDR4 by incorporating more memory bank groups and banks within the same physical footprint. The module also features doubled Burst Length and Prefetch capabilities, increasing data write operations and upfront data handling. The centrally positioned PMIC contributes to the cleaner module design while managing power distribution.

Technical Specifications

Higher Frequencies
The DDR5-4800 U-DIMM delivers blazing frequencies of up to 4800 MT/s, a major leap from the max. frequency of DDR4 modules (3200 MT/s)

More Energy-Efficient
This next-gen memory module operates on just 1.1V, making it 8% more power-efficient than DDR4. What's more, it features a built-in Power Management IC (PMIC) to enhanced power supply stability.

Capacity Doubled
This memory module's architecture allows for more memory bank groups and banks. With the same area, more bank groups can be packed into the module, doubling what was possible with DDR4, giving you higher capacities.

Improved Stability
With error correcting code (ECC) this module can correct errors automatically in real-time. In addition to greatly reducing the burden of CPU calculations, it also provides increased stability and reliability for enterprise-class computers.

QuikTips: DDR5 vs DDR4 - Appearance
DDR5 U-DIMM modules have the same dimensions and pin count as DDR4 modules. The most obvious difference is the position of the fool-proof notch. Also, DDR5 integrates I/O resistors with CMD/ADD resistors. Also, the appearance of DDR5 modules are cleaner than DDR4. In addition, you can see a PMIC in the center.

QuikTips: DDR5 vs DDR4 - Chip Architecture
DDR5 modules provide two times more capacity than DDR4 by packing in more banks and bank groups. In addition, Burst Length, Prefetch are also doubled, increasing the number of data writes and the amount of data taken upfront. And to ensure data integrity, they feature error correcting code (ECC) technology.

QuikTips: DDR5 vs DDR4 - Performance
The biggest change is that bandwidth and frequency are significantly higher. The ADATA DDR5 memory modules deliver frequencies of up to 4800MT/s and feature bandwidth of 38.4GB/s, which is 50% higher than the DDR4-3200. The maximum frequency is increased 1.63 times compared to DDR4.

Specifications

Series
ADATA Premier

DDR Type
DDR5

Size
1 x 16GB

Speed
4800 MHz

Compliance
PC5-38400

Pins
288-pin

CAS Latency
CL40

Data Integrity Check
ECC

Voltage
1.1V

Heatsink
No

LED Lighting
-

Package Type
Retail

Package Weight
0.0280 kg

Warranty
Lifetime

• Form Factor: DIMM
• DDR Type: DDR5
• Speed: 4800MHz
• Capacity: 16GB
• RGB: No
