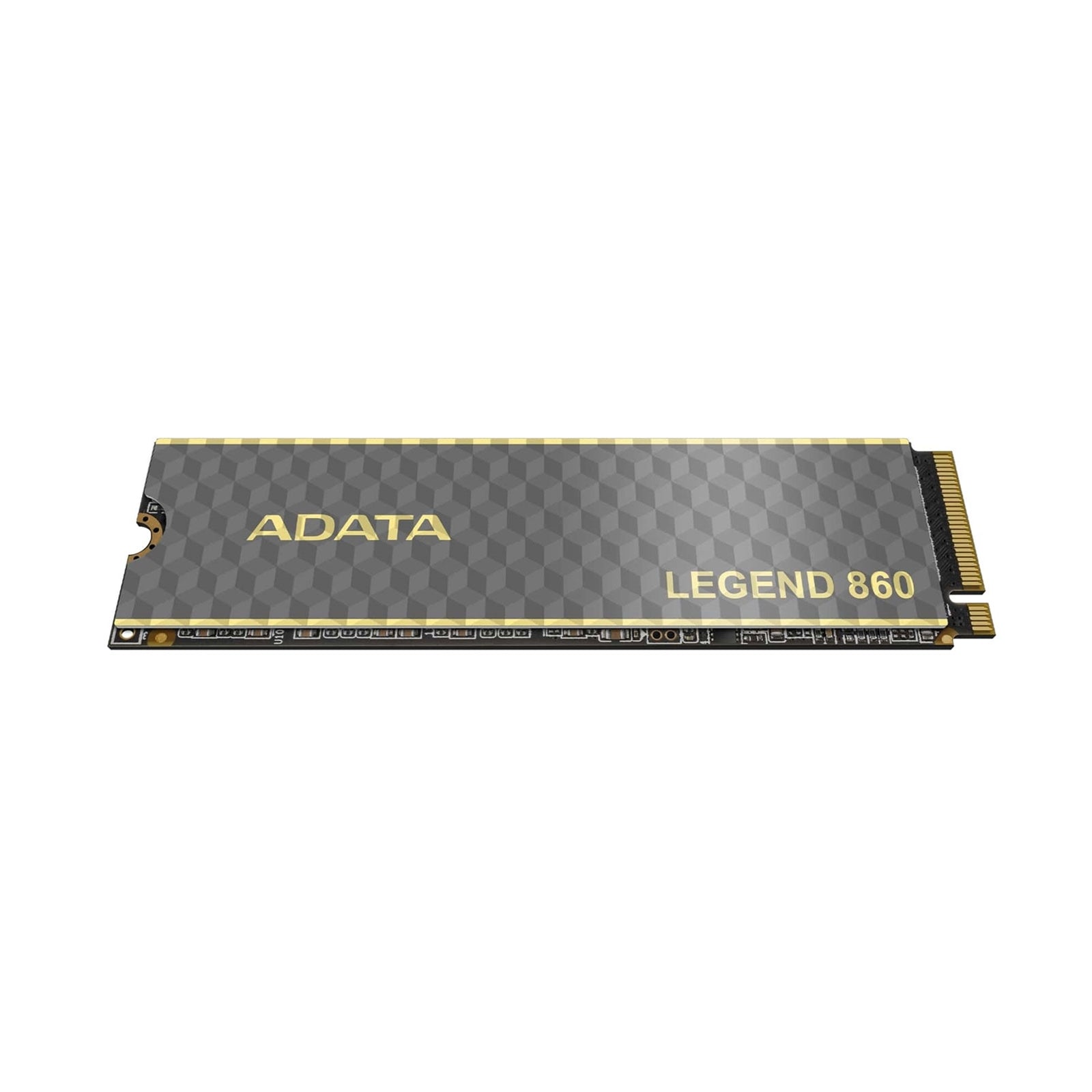

LEGEND 860 PCIe Gen4 x4 M.2 2280 Solid State Drive

The LEGEND 860 SSD delivers advanced computing performance for creators and gamers. With sequential read/write speeds of up to 6,000/5,000MB per second and 2TB storage capacity, it provides powerful performance for expanding PS5 console storage and supports the latest Intel and AMD platforms.

High-Speed Performance

The LEGEND 860 boasts sequential read/write speeds of 6,000/5,000MB per second, 3 times faster than standard PCIe Gen3 SSDs and 10 times faster than SATA SSDs. Fully backward compatible with PCIe 3.0 platforms, this drive provides excellent output for mid-to-high-end productions such as film and television animation, machine learning, and product modeling.

PS5 Storage Expansion

The LEGEND 860 utilizes a PCIe 4.0 transmission interface and can be installed in the PS5 as an expansion drive to alleviate storage insufficiency issues. The drive fits perfectly into the PS5's drive slot with included heatsink, providing a smooth and no-lag gaming experience.

2TB Capacity with Advanced Protection

Available in a spacious 2TB capacity, the LEGEND 860 utilizes a variety of data protection and correction technologies to greatly increase its Total Bytes Written volume (640TB TBW) and durability to meet the needs of various storage applications.

Advanced Technology

LEGEND 860 utilizes SLC cache algorithm and HMB (Host Memory Buffer) technology to take advantage of caching and adopts LDPC (Low Density Parity Check Code) error correction mechanism to ensure the accuracy of data transmission and file security.

5 Year Warranty

Constructed with carefully selected high-quality components, the LEGEND 860 comes with a 5-year warranty. The included SSD Toolbox software ensures users utilize the latest Firmware version and employs S.M.A.R.T. technology to monitor health, remaining lifespan, operating temperature, and storage capacity.

Specifications

Capacity: 2TB
Form Factor: M.2 2280
NAND Flash: 3D NAND
Interface: PCIe Gen4 x4
Sequential Read (Max): Up to 6,000MB/s
Sequential Write (Max): Up to 5,000MB/s
Operating Temperature: 0°C - 70°C
Storage Temperature: -40°C - 85°C
Shock Resistance: 1,500G/0.5ms
MTBF: 2,000,000 hours
Terabytes Written (TBW): 640TB
Warranty: 5-year limited warranty
Weight & Dimensions:
80 x 22 x 3.13mm / 3.15 x 0.87 x 0.13inch (w/ heat sink)
80 x 22 x 2.15mm / 3.15 x 0.87 x 0.09inch (w/o heat sink)
9.5g / 0.33oz (w/ heat sink)
6.5g / 0.23oz (w/o heat sink)

• Type Of Drive: M.2
• Connection: M.2 NVMe PCIe 4.0
• Capacity: 2TB
• Packaging: Retail
