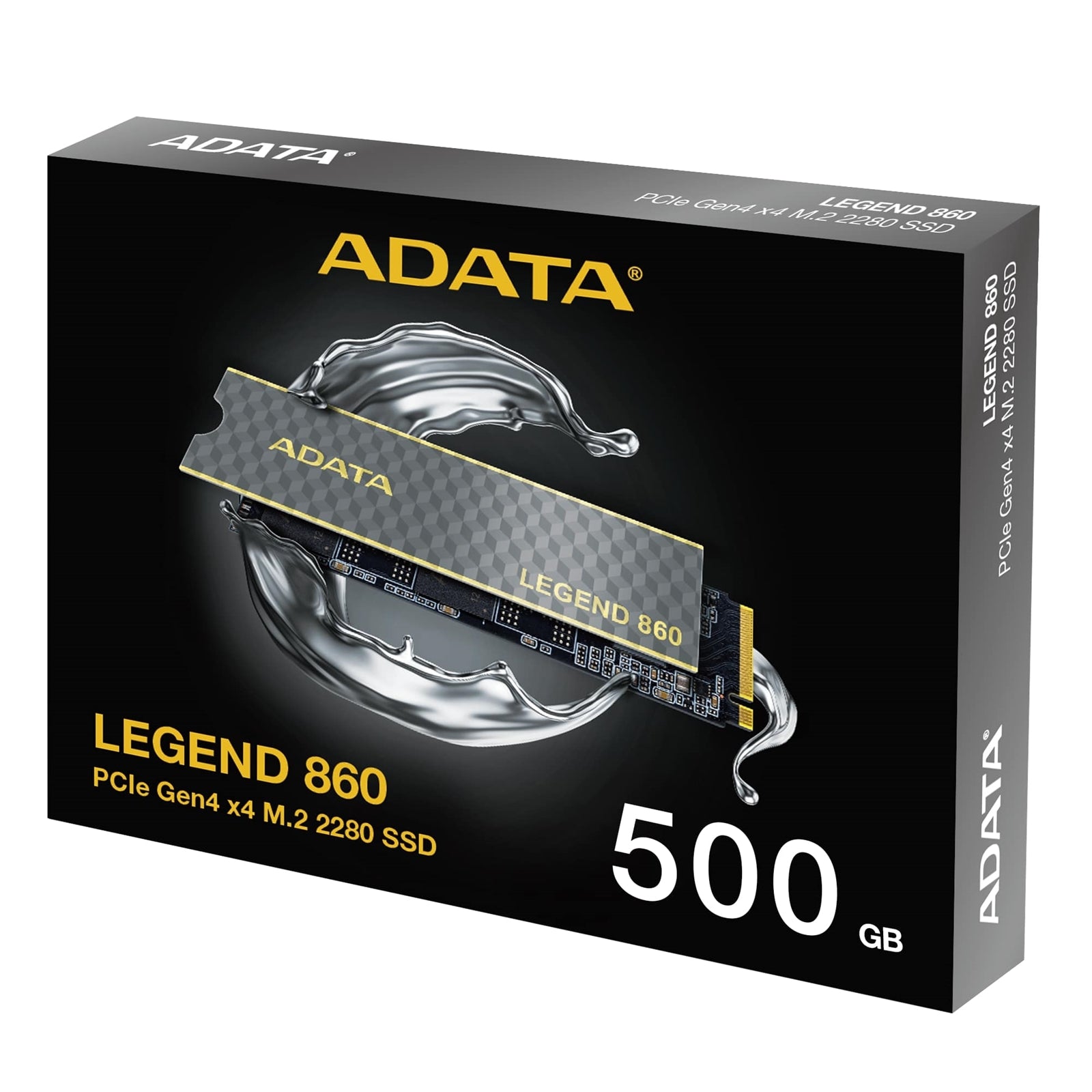

LEGEND 860 PCIe Gen4 x4 M.2 2280 Solid State Drive

The LEGEND 860 SSD delivers advanced computing performance with sequential read/write speeds of up to 5,000/3,000MB per second. This 500GB PCIe Gen4 x4 drive is 3 times faster than standard PCIe Gen3 SSDs and 10 times faster than SATA SSDs, while maintaining full backward compatibility with PCIe 3.0 platforms.

High-Speed Performance for Content Creation

With 5,000MB/s read and 3,000MB/s write speeds, the LEGEND 860 handles demanding workflows including film and television animation, machine learning, and product modeling. The drive utilizes SLC cache algorithm and HMB (Host Memory Buffer) technology for optimized performance, while LDPC (Low Density Parity Check Code) error correction ensures data transmission accuracy and file security.

PS5 Storage Expansion Compatible

The LEGEND 860 fits perfectly into the PS5 drive slot as an expansion storage solution. The PCIe 4.0 transmission interface meets PS5 requirements, providing smooth, lag-free gaming performance while alleviating storage capacity limitations.

Durable Construction with Heatsink

This M.2 2280 drive includes an integrated heatsink for thermal management during intensive operations. Built with 3D NAND flash memory and carefully selected components, the LEGEND 860 achieves 160TB TBW (Total Bytes Written) and 2,000,000 hours MTBF. Operating temperature range: 0°C - 70°C. The drive comes with a 5-year limited warranty.

SSD Toolbox Software Included

Monitor drive health with SSD Toolbox software featuring S.M.A.R.T. technology. Track firmware updates, remaining lifespan, operating temperature, and storage capacity in real-time to maintain optimal SSD performance.

Technical Specifications

Capacity: 500GB
Form Factor: M.2 2280
NAND Flash: 3D NAND
Interface: PCIe Gen4 x4
Sequential Read (Max): Up to 5000MB/s
Sequential Write (Max): Up to 3000MB/s
Operating Temperature: 0°C - 70°C
Storage Temperature: -40°C - 85°C
Shock Resistance: 1,500G/0.5ms
MTBF: 2,000,000 hours
Terabytes Written (TBW): 160TB
Warranty: 5-year limited warranty
Weight & Dimensions:
80 x 22 x 3.13mm / 3.15 x 0.87 x 0.13inch (w/ heat sink)
80 x 22 x 2.15mm / 3.15 x 0.87 x 0.09inch (w/o heat sink)
9.5g / 0.33oz (w/ heat sink)
6.5g / 0.23oz (w/o heat sink)

• Type Of Drive: M.2
• Connection: M.2 NVMe PCIe 4.0
• Capacity: 500GB
• Packaging: Retail
