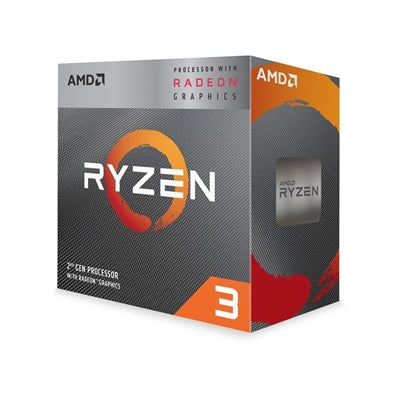

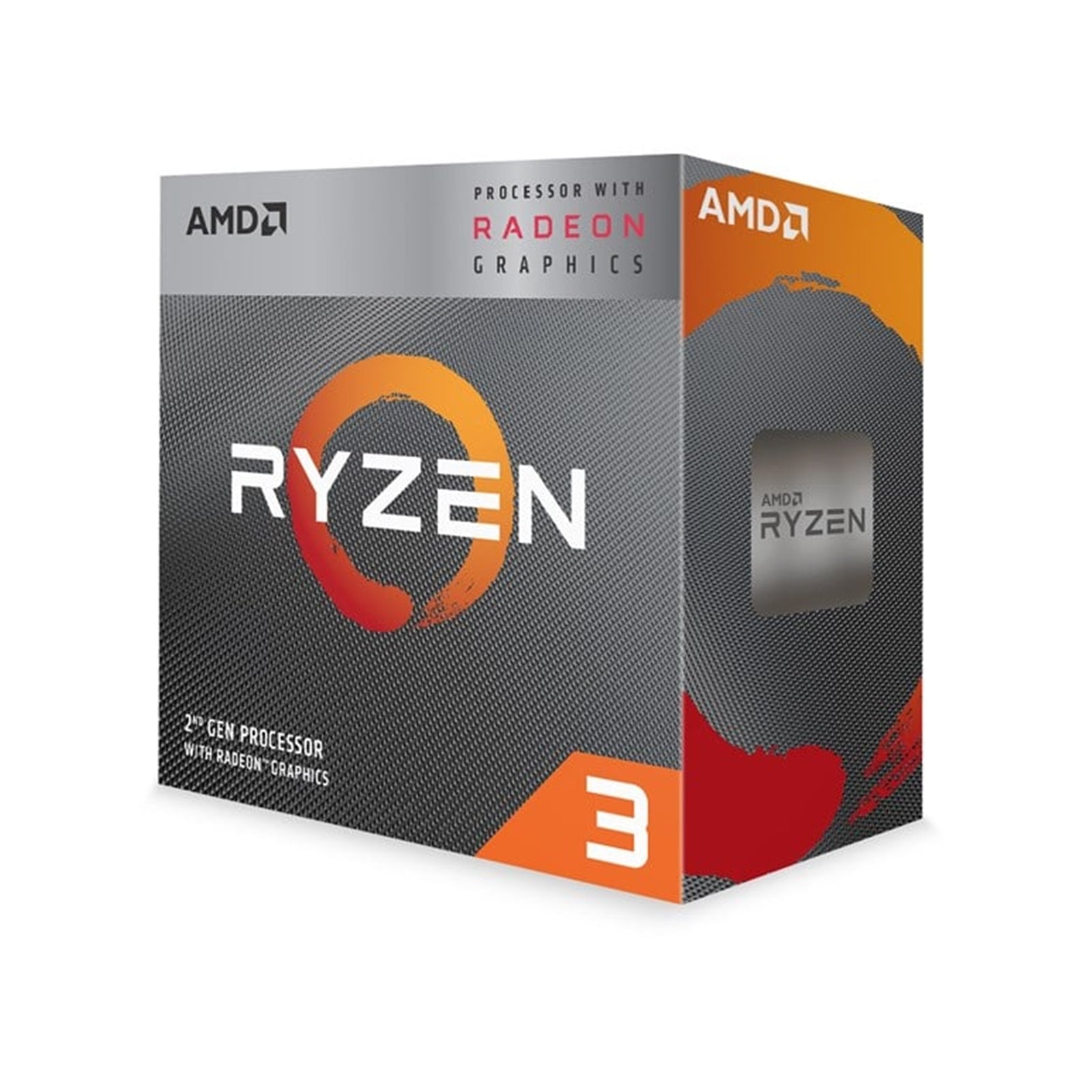

AMD Ryzen 3 3200G Processor with Integrated Radeon Vega 8 Graphics

The AMD Ryzen 3 3200G delivers reliable quad-core processing power combined with integrated Radeon Vega 8 graphics, eliminating the need for a discrete graphics card in budget-conscious builds. This AM4 socket processor features a base clock of 3.6GHz with boost speeds up to 4.0GHz, providing responsive performance for everyday computing and light gaming.

Integrated Graphics Performance

The built-in Radeon Vega 8 graphics with 8 compute cores running at 1250 MHz handles casual gaming and multimedia tasks without requiring additional GPU investment. This APU architecture makes it an efficient solution for compact builds and entry-level gaming systems where space and budget are considerations.

Thermal Solution Included

Every Ryzen 3 3200G comes packaged with the AMD Wraith Stealth cooler, providing adequate thermal management for the 65W TDP processor straight from the box. The configurable TDP range of 45-65W offers flexibility for different system configurations and power requirements.

Overclocking and Performance Features

Built on 12nm FinFET technology, this unlocked processor supports overclocking through AMD Ryzen Master Utility. Precision Boost 2 technology automatically adjusts frequencies based on workload demands, while Precision Boost Overdrive leverages compatible motherboard designs for extended performance headroom. The processor includes 384KB L1 cache, 2MB L2 cache, and 4MB L3 cache for efficient data processing.

Platform Compatibility

Compatible with AM4 socket motherboards including X570, 400 Series, and X399 chipsets, the Ryzen 3 3200G supports dual-channel DDR4 memory up to 2933MHz and PCIe 3.0 x8 connectivity. AMD StoreMI Technology is available with compatible motherboards, combining SSD speed with HDD capacity for optimized storage performance.

AMD Ryzen 3 3200G: RYZEN Powers. RADEON Reigns. You Prevail

AMD GameCache - More Memory On-Chip to Accelerate Gaming
Up to twice the cache of previous generations, GameCache is designed to reduce memory latency for higher frame rates in top titles.

Precision Boost 2 - Boost performance when you need it
Precision Boost 2 automatically raises processor frequencies for supercharged performance when you need it most.

One Click Overclocking
Precision Boost Overdrive uses your motherboard's robust design to boost clock speeds higher and longer, and lets you overclock at the touch of a button.

AMD StoreMI Technology
Software that combines the speed of your SSD with the capacity of your hard disk into a single, fast, easy-to-manage drive - included with an AMD X570, 400 Series, or X399 motherboard.

AMD Ryzen Master Utility
Unlock ultimate control over your AMD Ryzen powered system for personalized overclocking and efficiency.

AMD Wraith Stealth
All AMD Ryzen 3 3200G processors come boxed with the efficient Wraith Stealth Cooler as standard, giving you an optimal thermal solution straight out of the box.


Specifications

Platform
Boxed Processor

Product Family
AMD Ryzen Processors

Product Line
AMD Ryzen 3 Desktop Processors with Radeon Vega Graphics

# of CPU Cores
4

# of Threads
4

Max. Boost Clock
Up to 4.0GHz

Base Clock
3.6GHz

L1 Cache
384KB

L2 Cache
2MB

L3 Cache
4MB

Default TDP
65W

AMD Configurable TDP (cTDP)
45-65W

Processor Technology for CPU Cores
12nm FinFET

Unlocked for Overclocking
Yes

CPU Socket
AM4

Thermal Solution
Wraith Stealth

Max. Operating Temperature (Tjmax)
95°C

Launch Date
7/7/2019

PCI Express Version
PCIe 3.0 x8

System Memory Type
DDR4

Memory Channels
2

System Memory Specification
Up to 2933MHz

Graphics Model
Radeon Vega 8 Graphics

Graphics Core Count
8

Graphics Frequency
1250 MHz

• Socket: AM4
• On-Chip Graphics: Yes
• Speed: 3.6GHz
• Core Quantity: 4
• Prefix: Ryzen 3
