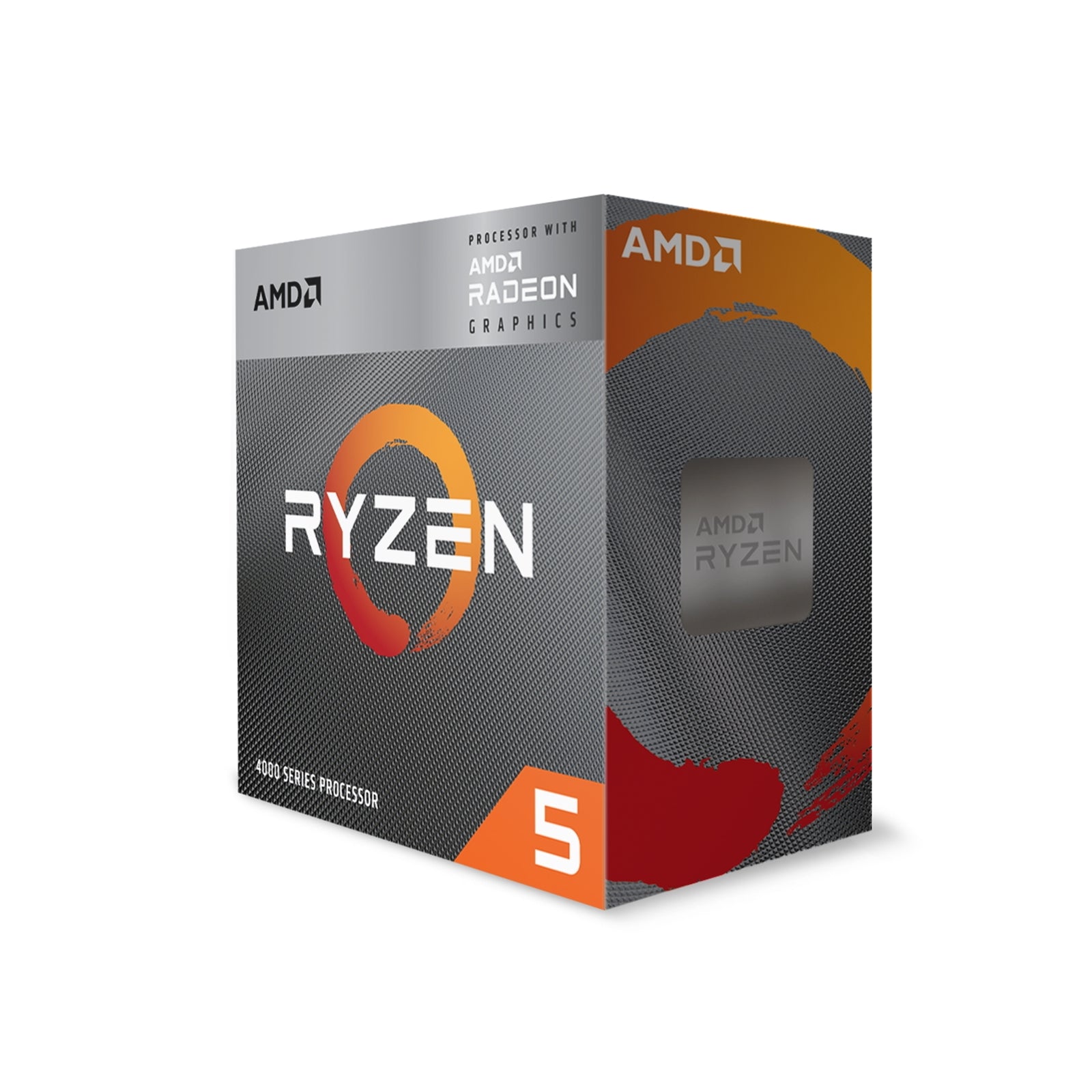

AMD Ryzen 5 4600G Desktop Processor with Radeon Graphics

The AMD Ryzen 5 4600G delivers Zen 2 architecture performance for gamers and PC builders seeking capable processing power with integrated graphics. This 6-core, 12-thread processor operates at 3.7GHz base clock with boost speeds up to 4.2GHz, providing responsive performance for gaming, content creation, and multitasking workloads.

Integrated Radeon Graphics Performance

Built on 7nm FinFET technology, the 4600G features integrated Radeon Graphics with 7 compute cores running at 1900MHz. This eliminates the immediate need for a discrete graphics card, making it an economical choice for budget-conscious builds while still delivering playable gaming performance at 1080p settings.

Drop-In Compatibility and Overclocking

Compatible with AMD 500, 400, and select 300 series motherboards (X570, X470, X370, B550, B450, B350, A520, A320) via simple BIOS update. The unlocked multiplier allows for overclocking customization through AMD Ryzen Master utility. Supports DDR4 memory up to 3200MHz across dual channels with maximum capacity of 128GB.

Efficient 65W Design with Included Cooler

Operating at 65W TDP with configurable range of 45-65W, the 4600G maintains thermal efficiency while delivering performance. Includes AMD Wraith Stealth cooler featuring low-profile design with near-silent acoustics and adequate thermal management for stock operation.

AMD Ryzen Technologies

Precision Boost 2 technology automatically adjusts processor frequencies based on temperature and power consumption for optimized performance. AMD StoreMI technology combines SSD speed with HDD capacity for accelerated storage performance. Full suite of instruction set extensions including AES, AMD-V, AVX2, and SHA support.

Connectivity and Expansion

Features 24 total PCIe 3.0 lanes (20 usable), 4 native USB 3.2 Gen 2 ports with Type-C support, and 2 native SATA ports. Supports NVMe in Boot, RAID0, RAID1, and RAID10 configurations. Compatible with Windows 11, Windows 10, RHEL, and Ubuntu operating systems.

Technical Specifications

Platform
Desktop

Product Family
AMD Ryzen Processors

Product Line
AMD Ryzen 5 4000 G-Series Desktop Processors with Radeon Graphics

Former Codename
"Renoir"

Architecture
"Zen 2"

# of CPU Cores
6

Multithreading (SMT)
Yes

# of Threads
12

Max. Boost Clock
Up to 4.2GHz

Base Clock
3.7GHz

L1 Cache
384KB

L2 Cache
3MB

L3 Cache
8MB

Default TDP
65W

AMD Configurable TDP (cTDP)
45-65W

Processor Technology for CPU Cores
TSMC 7nm FinFET

Package Die Count
1

Unlocked for Overclocking
Yes

CPU Socket
AM4

Supporting Chipsets
X570
X470
X370
B550
B450
B350
A520
A320

CPU Boost Technology
Precision Boost 2

Instruction Set
x86-64

Supported Extensions
AES, AMD-V, AVX, AVX2, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64

Max. Operating Temperature (Tjmax)
95°C

Launch Date
7/21/2020

OS Support
Windows 11 - 64-Bit Edition
Windows 10 - 64-Bit Edition
RHEL x86 64-Bit
Ubuntu x86 64-Bit

USB Type-C Support
Yes

Native USB 3.2 Gen 2 (10Gbps) Ports
4

Native USB 3.2 Gen 1 (5Gbps) Ports
0

Native USB 2.0 (480Mbps) Ports
0

Native SATA Ports
2

PCI Express Version
PCIe® 3.0

Native PCIe Lanes (Total/Usable)
24/20

NVMe Support
Boot, RAID0, RAID1, RAID10

System Memory Type
DDR4

Memory Channels
2

Max. Memory
128GB

System Memory Subtype
UDIMM

System Memory Specification
Up to 3200MHz

Max Memory Speed
2x1R - DDR4-3200
2x2R - DDR4-3200
4x1R - DDR4-2933
4x2R - DDR4-2667

ECC Support
No

Integrated Graphics
Yes

Graphics Model
Radeon Graphics

Graphics Core Count
7

Graphics Frequency
1900 MHz

USB Type-C DisplayPort Alternate Mode
Yes

• Socket: AM4
• On-Chip Graphics: Yes
• Speed: 3.7GHz
• Core Quantity: 6
• Prefix: Ryzen 5
