AMD Ryzen 5 5600GT Processor with Integrated Radeon Graphics

The AMD Ryzen 5 5600GT brings powerful 6-core processing to the AM4 platform with integrated Radeon graphics. Built on the Zen 3 architecture with 7nm TSMC FinFET technology, this processor delivers performance close to the 5700G in gaming applications while maintaining excellent power efficiency at 65W TDP.

Performance Specifications

Operating at 3.6GHz base frequency with boost speeds up to 4.6GHz, the 5600GT features 6 cores and 12 threads for efficient multitasking. The processor includes 19MB total cache (384KB L1, 3MB L2, 16MB L3) and supports DDR4 memory up to 3200MHz in dual-channel configuration with a maximum capacity of 128GB.

Integrated Radeon Graphics

The built-in Radeon graphics core runs at 1900MHz with 7 graphics cores, providing capable performance for gaming and content creation without requiring a dedicated graphics card. This makes the 5600GT an excellent choice for budget-conscious builds or compact systems.

AMD Ryzen Technologies

The processor includes Precision Boost 2 and Precision Boost Overdrive technologies for automatic performance optimization. AMD Ryzen Master utility enables manual tweaking and tuning for users who want additional control over their system performance.

Platform Compatibility

Compatible with AMD 500, 400, and 300 series motherboards using the AM4 socket. Some motherboards may require a BIOS update depending on manufacture date. The processor supports various memory configurations including 2x1R DDR4-3200, 2x2R DDR4-3200, 4x1R DDR4-2933, and 4x2R DDR4-2667.

Package Contents

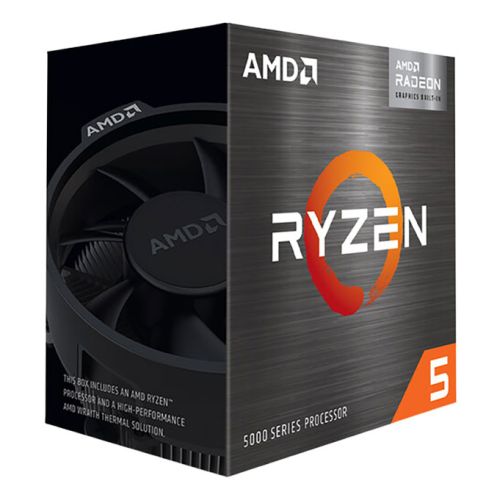

Includes Wraith Stealth cooler for reliable thermal management. The retail package weighs 0.44kg and comes with a 3-year warranty for peace of mind.

Description

Specification

• Socket: AM4
• Type: AMD Ryzen 5
• Clock Speed: 3.6 GHz
• Turbo Speed: Up to 4.6 GHz
• #Hide#Generation: Ryzen 5th gen
• Cores: 6 Core
• Core Size: TSMC 7nm FinFET
• Threads: 12
• Cache: L1 Cache: 384KB
  L2 Cache: 3MB
  L3 Cache: 16MB
• TDP: Default TDP: 65W
• Graphics: Yes
• Graphics Details: Radeon Graphics
  Frequency: 1900 MHz
  Graphics Cores: 7
• Memory: System Memory Type: DDR4
  Memory Channels: 2
  Max. Memory: 128GB
  System Memory Subtype: UDIMM

  Max Memory Speed:
  2x1R: DDR4-3200
  2x2R: DDR4-3200
  4x1R: DDR4-2933
  4x2R: DDR4-2667
• Cooler: Yes
• Special Features: Wraith Stealth cooler
• Package Type: Retail
• Package Weight: 0.4400 kg
• Warranty: 3 Years
