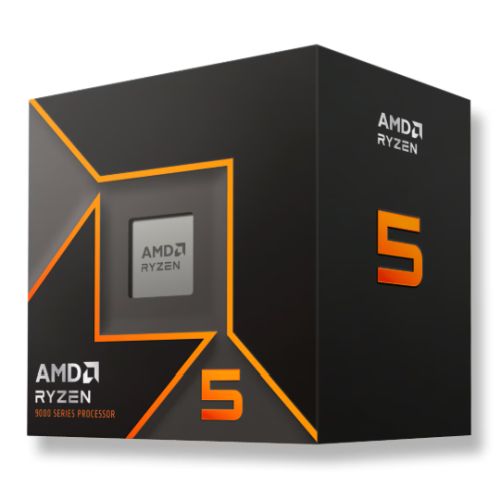

AMD Ryzen 5 9600 Processor - Zen 5 Architecture Performance

The AMD Ryzen 5 9600 delivers next-generation processing power with 6 cores and 12 threads built on the advanced Zen 5 architecture. Featuring a base clock of 3.8GHz and boost speeds up to 5.2GHz, this processor provides substantial performance improvements with a ~16% IPC increase over previous generations.

Zen 5 Architecture Advantages

AMD's latest Zen 5 architecture brings significant enhancements in branch prediction accuracy and latency reduction. Wider pipelines and vectors deliver increased throughput, making the Ryzen 5 9600 capable of handling demanding gaming workloads, content creation, and productivity tasks with ease.

AM5 Platform and Future-Ready Technology

Built for the AM5 socket, this processor supports cutting-edge DDR5 memory with speeds up to 5600MHz and PCIe 5.0 connectivity for maximum bandwidth. The AM5 platform offers years of upgradability, allowing you to expand your system as your needs evolve without replacing the entire motherboard.

Integrated Radeon Graphics

The Ryzen 5 9600 includes AMD Radeon Graphics with 2 graphics cores running at 2200MHz, providing display output capabilities without requiring a dedicated graphics card. USB Type-C DisplayPort Alternate Mode support enables flexible display connectivity options.

Thermal Performance and Cooler

With a 65W TDP, the Ryzen 5 9600 maintains excellent power efficiency. The included AMD Wraith Stealth cooler provides adequate thermal management for stock operation, keeping the processor cool during extended gaming sessions or productivity workloads.

AMD EXPO Technology

One-touch memory overclocking through AMD EXPO technology simplifies the process of maximizing your DDR5 memory performance, delivering ultra-high speeds without complex BIOS configurations.

AI-Ready Processing

The Ryzen 5 9600 features built-in AI acceleration capabilities, enhancing productivity and content creation workflows. Pair with Radeon RX 7000 Series graphics cards for amplified AI performance across gaming and creative applications.

Technical Specifications

• 6 cores, 12 threads with 38MB total cache (480KB L1, 6MB L2, 32MB L3)
• TSMC 4nm FinFET CPU cores with 6nm I/O die
• 28 total PCIe lanes (24 usable)
• Dual-channel memory controller supporting up to 192GB DDR5
• 3-year manufacturer warranty

Description

Specification

• Socket: AM5
• Type: AMD Ryzen 5
• Clock Speed: 3.8 GHz
• Turbo Speed: 5.2 GHz
• #Hide#Generation: Ryzen 9th gen
• Cores: 6 Core
• Core Size: CPU Cores: TSMC 4nm FinFET
  I/O Die: TSMC 6nm FinFET
• Threads: 12
• Cache: L1 Cache: 480 KB
  L2 Cache: 6 MB
  L3 Cache: 32 MB
• TDP: Default TDP: 65W
• Graphics: Yes
• Graphics Details: AMD Radeon Graphics
  Graphics Cores: 2
  Frequency: 2200 MHz
  USB Type-C DisplayPort Alternate Mode support
• Memory: Memory Channels: 2
  Max. Memory: 192GB
  System Memory Subtype: UDIMM

  Max Memory Speed:
  2x1R DDR5-5600
  2x2R DDR5-5600
  4x1R DDR5-3600
  4x2R DDR5-3600
• Max PCI Express Lanes: 28/24 (Total/Usable)
• Cooler: Yes
• Special Features: AMD Wraith Stealth Cooler
  AMD EXPO Technology
  AMD Ryzen Technologies
• Package Type: Retail
• Package Weight: 0.1100 kg
• Warranty: 3 Years
