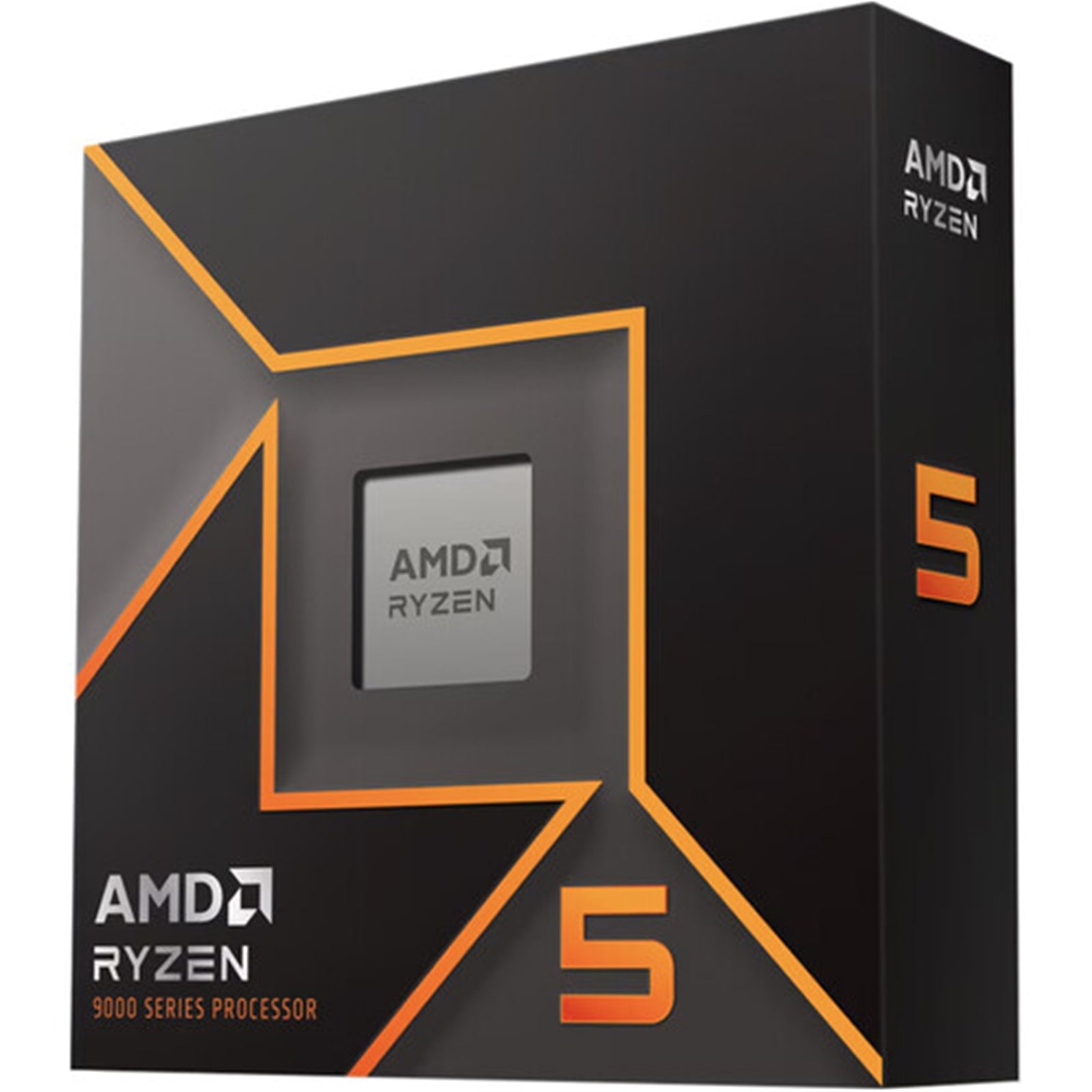

AMD Ryzen 5 9600X 6-Core AM5 Processor

The AMD Ryzen 5 9600X delivers exceptional performance for gaming, content creation, and demanding applications. Built on the advanced Zen 5 4nm architecture, this processor combines 6 cores and 12 threads with a 3.9 GHz base clock and 5.4 GHz max boost clock to handle intensive workloads with ease.

Key Specifications

• Cores & Threads: 6 cores, 12 threads for efficient multitasking
• Clock Speeds: 3.9 GHz base, up to 5.4 GHz boost
• Cache: 6MB L2 + 32MB L3 (38MB total)
• Socket: AM5 platform compatibility
• Memory Support: DDR5-5600 ECC, up to 192GB dual-channel
• TDP: 65W (cooling solution not included)
• Graphics: Integrated AMD Radeon Graphics

Performance Features

This unlocked processor supports overclocking for users seeking maximum performance. Precision Boost 2 technology automatically adjusts clock speeds based on system conditions, while Precision Boost Overdrive leverages compatible motherboard designs to push frequencies even higher. The AMD Ryzen Master Utility provides real-time monitoring and custom performance profiles for CPU, GPU, and memory configurations.

The 9600X supports PCIe 5.0 with 28 lanes, ensuring compatibility with the latest graphics cards and NVMe SSDs. The 4nm manufacturing process delivers improved efficiency compared to previous generations, maintaining a 65W TDP while achieving higher performance levels.

Platform Compatibility

Designed for Socket AM5 motherboards, the Ryzen 5 9600X supports DDR5-5600 memory with ECC capability. The integrated AMD Radeon Graphics provides DisplayPort and HDMI output support, enabling system functionality without a dedicated graphics card. Maximum operating temperature is 95°C with thermal monitoring technologies included.

Technical Details

The processor features comprehensive instruction set support including AVX, AVX 2.0, AVX-512, FMA3, and SSE 4.1/4.2. AMD-V virtualization technology enables efficient virtual machine performance. AES encryption support and 64-bit architecture ensure security and compatibility with modern software.

Backed by a limited 3-year manufacturer warranty, the AMD Ryzen 5 9600X represents a compelling choice for users building or upgrading AM5-based systems. Note that a separate cooling solution is required as no fan is included with this processor.

AMD Ryzen 5 9600X 3.9 GHz 6-Core AM5 Processor

Key Features
6 Cores & 12 Threads
3.9 GHz Base Clock
5.4 GHz Max Boost Clock
Socket AM5
6MB L2 & 32MB L3 Cache
DDR5-5600 ECC Memory
Integrated AMD Radeon Graphics
Unlocked Processor
Supports PCIe 5.0 x16
Zen 5 Architecture

Take your computing experiences to a new level with the AMD Ryzen 5 9600X 3.9 GHz 6-Core AM5 Processor. Featuring 6 cores and 12 threads with 32MB of L3 Cache, this desktop processor quickly loads and multitasks demanding applications.

Designed for socket AM5 motherboards using the powerful Zen 5 4nm architecture, this processor offers exceptional performance. With a base clock speed of 3.9 GHz and a max boost clock speed of 5.4 GHz, the Ryzen 5 9600X delivers the power needed to smoothly handle tasks ranging from content creation to immersive gaming experiences. You can boost performance further by overclocking this unlocked processor. Other features include support for PCIe Gen 5 technology and 5600 MHz ECC DDR5 RAM with compatible motherboards.

This processor has a 65W TDP (Thermal Design Power) and does not include a cooling solution. Integrated Radeon Graphics delivers rich visuals.

Precision Boost 2
AMD Ryzen processors monitor the system's energy consumption, temperatures, and other factors to automatically raise clock speeds, allowing applications to perform faster.

Precision Boost Overdrive
Precision Boost Overdrive technology takes advantage of your compatible motherboard's design to boost clock speeds higher and for longer periods of time. It also allows you overclock the processor at the touch of a button.

AMD Ryzen Master Utility
Personalized Performance
The AMD Ryzen Master Utility provides you with multiple custom profiles to store CPU, GPU, and DDR4 memory configurations. Use it to configure performance parameters for the active cores and adjust memory times. You can also optimize general performance or fine tune your favorite applications.

System Monitoring
Monitor your system in real-time using the AMD Ryzen Master Utility, which features a histogram of per-core clock rates and temperature, including average and peak readings.

Specifications

General

CPU Model
AMD Ryzen 5 9600X

CPU Socket
AM5

Manufacturing Process
4 nm

Maximum CPU Configuration
1S

Maximum Number of PCIe Lanes
28 (Revision 5.0)

Unlocked
Yes

Performance

Number of Cores
6

Number of Threads
12

Base Clock Speed
3.9 GHz

Maximum Boost Speed
5.4 GHz

L3 Cache
32 MB

Memory Support

Maximum Capacity
192 GB

Memory Support
DDR5 Up to 5600 MHz

ECC Memory
Yes

Channel Architecture
Dual Channel

Power

Thermal Design Power (TDP, Max)
65 W

Included Thermal Solution
No

Maximum Temperature
203°F / 95°C

Thermal Monitoring Technologies
Yes

Technology

AES Support
Yes

Extension
AVX, AVX 2.0, AVX-512, FMA3, SSE 4.1/4.2

Instruction Set
64-Bit

Virtualization
Yes: AMD-V

Performance Technologies
Precision Boost 2

Integrated Graphics

Integrated Graphics
AMD Radeon

Output Support
DisplayPort, HDMI

Base Clock Speed
2200 MHz

Warranty
Limited 3-Year Manufacturer Warranty
