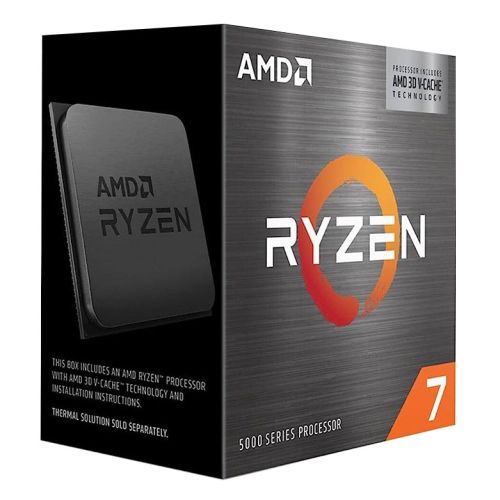

AMD Ryzen 7 5700X3D Gaming Processor

The AMD Ryzen 7 5700X3D delivers exceptional gaming performance through AMD's 3D V-Cache technology, providing 100MB of total cache for maximum frame rates in AAA titles and competitive esports. This 8-core, 16-thread processor is designed specifically for gaming enthusiasts seeking top-tier performance on the AM4 platform.

3D V-Cache Technology for Gaming Performance

Featuring 96MB of L3 cache combined with 4MB L2 and 512KB L1 cache, the 5700X3D offers more than three times the L3 cache of standard Ryzen 7 processors. This substantial cache increase directly translates to higher frame rates and smoother gameplay across demanding titles. The 3D V-Cache technology stacks additional cache vertically, maintaining the 7nm FinFET process efficiency while dramatically improving gaming workloads.

8-Core Zen 3 Architecture

Built on AMD's proven Zen 3 architecture, this processor runs at 3.0GHz base frequency with boost speeds up to 4.1GHz. The 8 cores and 16 threads handle modern gaming requirements while providing headroom for streaming, content creation, and multitasking. With a 105W TDP, the processor balances performance with thermal efficiency.

AM4 Platform Compatibility

The 5700X3D works with AMD 500, 400, and select 300 series motherboards, requiring only a BIOS update for compatibility. This drop-in upgrade path allows existing AM4 users to achieve significant gaming performance gains without replacing their entire platform. The processor supports dual-channel DDR4 memory up to 3200MHz, with 128GB maximum capacity across four DIMM slots.

Advanced AMD Technologies

Precision Boost 2 automatically adjusts clock speeds based on workload and thermal conditions, extracting maximum performance when needed. Precision Boost Overdrive provides additional tuning headroom for enthusiasts. AMD Ryzen Master utility enables easy monitoring and adjustment of processor settings without BIOS access.

PCIe Connectivity

The processor provides 24 PCIe lanes total, with 20 usable lanes for graphics cards, NVMe storage, and expansion devices. This ensures full bandwidth for high-performance GPUs and fast storage solutions.

Package Contents

This retail package includes the AMD Ryzen 7 5700X3D processor only. No heatsink or cooling solution is included, allowing users to select their preferred cooling setup based on case configuration and performance requirements. The processor comes with a 3-year manufacturer warranty.

Description

Specification

• Socket: AM4
• Type: AMD Ryzen 7
• Clock Speed: 3.0 GHz
• Turbo Speed: Up to 4.1 GHz
• #Hide#Generation: Ryzen 5th gen
• Cores: 8 Core
• Core Size: TSMC 7nm FinFET
• Threads: 16
• Cache: L1 Cache: 512KB
  L2 Cache: 4MB
  L3 Cache: 96MB
• TDP: Default TDP: 105W
• Graphics: No
• Memory: System Memory Type: DDR4
  Memory Channels: 2
  Max. Memory: 128GB
  System Memory Subtype: UDIMM

  Max Memory Speed:
  2x1R: DDR4-3200
  2x2R: DDR4-3200
  4x1R: DDR4-2933
  4x2R: DDR4-2667
• Max PCI Express Lanes: Total/Usable: 24 / 20
• Cooler: No
• Package Type: Retail
• Package Weight: 0.1250 kg
• Warranty: 3 Years
