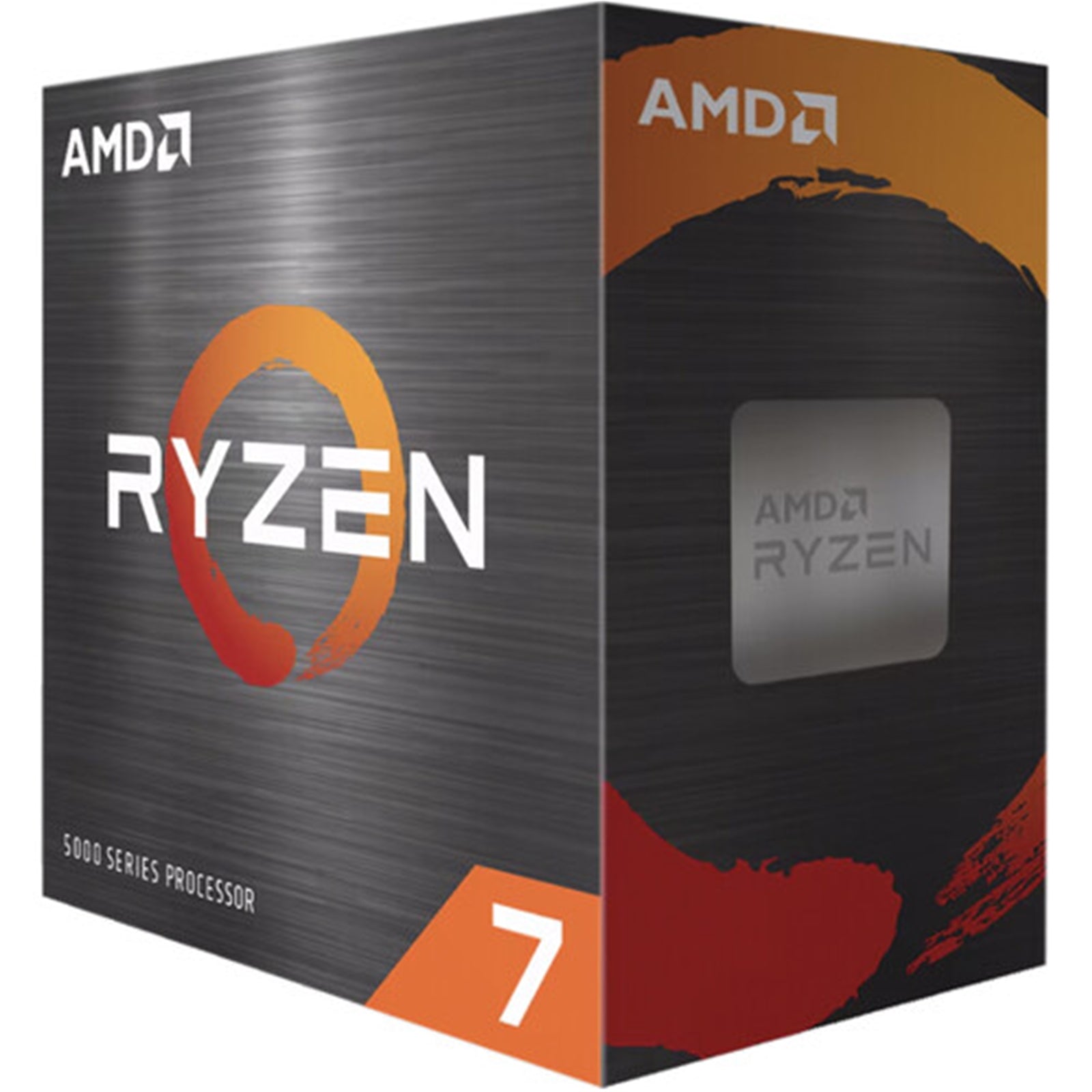

AMD Ryzen 7 5800XT Eight-Core AM4 Processor

The AMD Ryzen 7 5800XT delivers high-performance computing with 8 cores and 16 threads built on the advanced Zen 3 architecture. This 7nm processor operates at a base clock of 3.8 GHz and reaches up to 4.8 GHz boost speeds, providing the processing power needed for demanding applications, content creation, and gaming.

Performance Specifications

Featuring 32MB of L3 cache and 4MB of L2 cache, the Ryzen 7 5800XT ensures rapid data access and smooth multitasking performance. The processor supports DDR4-3200 memory and PCIe 4.0 technology, delivering fast data transfer speeds for modern graphics cards and NVMe storage devices. With a 105W TDP, this unlocked processor allows enthusiasts to push performance further through overclocking.

Socket AM4 Platform

Designed for socket AM4 motherboards, the 5800XT offers compatibility with a wide range of existing AM4 platforms. The processor supports dual-channel DDR4 memory architecture and provides 24 PCIe 4.0 lanes for high-bandwidth peripherals. Note that this processor does not include integrated graphics, requiring a dedicated graphics card for display output.

Included Wraith Prism Cooler

The package includes AMD's Wraith Prism cooler, a capable thermal solution designed to handle the processor's 105W thermal output while maintaining temperatures up to 90°C. This eliminates the immediate need for aftermarket cooling solutions.

AMD Technologies

Precision Boost 2 automatically adjusts clock speeds based on system conditions, optimizing performance when needed. Precision Boost Overdrive leverages compatible motherboard designs to extend boost frequencies beyond standard specifications, offering one-touch overclocking capabilities.

AMD StoreMI Technology combines SSD and HDD storage into a unified drive, intelligently caching frequently accessed files on faster storage for improved system responsiveness.

The processor meets AMD Ryzen VR Ready Premium specifications, ensuring compatibility with major VR headsets including Oculus Rift, HTC Vive, and Windows Mixed Reality platforms.

Ryzen Master Utility

The AMD Ryzen Master Utility provides comprehensive control over processor configuration, allowing users to create custom profiles for CPU and memory settings. Real-time monitoring displays per-core clock rates, temperatures, and system statistics through an intuitive histogram interface.

Key Features
8 Cores & 16 Threads
3.8 GHz Base Clock
4.8 GHz Max Boost Clock
Socket AM4
4MB L2 & 32MB L3 Cache
DDR4-3200 Memory
Unlocked Processor
Includes Wraith Prism Cooler
Supports PCIe 4.0 x16
Zen 3 Architecture

Specifications

General

CPU Model
AMD Ryzen 7 5800XT

CPU Socket
AM4

Manufacturing Process
7 nm

Maximum Number of PCIe Lanes
24 (Revision 4.0)

Unlocked
Yes

Performance

Number of Cores
8

Number of Threads
16

Base Clock Speed
3.8 GHz

Maximum Boost Speed
4.8 GHz

L3 Cache
32 MB

Memory Support

Memory Support
DDR4 Up to 3200 MHz

ECC Memory
No

Channel Architecture
Dual Channel

Power

Thermal Design Power (TDP, Max)
105 W

Included Thermal Solution
Wraith Prism

Maximum Temperature
194°F / 90°C

Thermal Monitoring Technologies
Yes

Technology

Performance Technologies
Precision Boost 2

Warranty
Limited 3-Year Manufacturer Warranty

• Socket: AM4
• On-Chip Graphics: No
• Speed: 3.8GHz
• Core Quantity: 8
• Prefix: Ryzen 7
