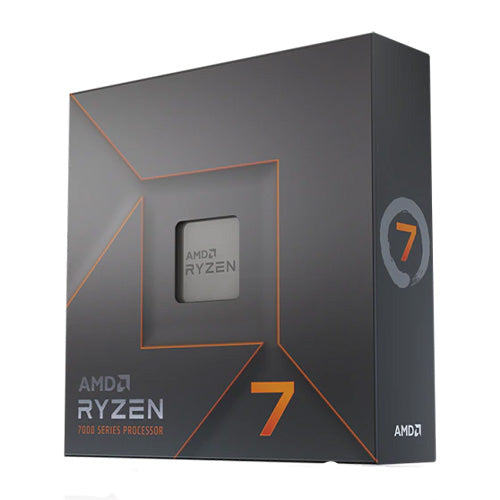

AMD Ryzen 7 7700X Desktop Processor

The AMD Ryzen 7 7700X delivers high-performance computing for gaming and content creation. Built on advanced 5nm architecture, this 8-core processor features a 4.5GHz base clock that boosts up to 5.4GHz, providing the processing power needed for demanding applications and multitasking workflows.

Performance Architecture

The 7700X features 8 cores and 16 threads, backed by 40MB of total cache (512KB L1, 8MB L2, and 32MB L3). This substantial cache configuration ensures rapid data access and improved performance in both single-threaded and multi-threaded workloads. The TSMC 5nm FinFET CPU cores paired with a 6nm FinFET I/O die deliver exceptional efficiency and thermal characteristics.

Integrated Graphics and Connectivity

Equipped with integrated AMD Radeon Graphics featuring 2 graphics cores running at 2200 MHz, the processor provides display output capability without requiring a discrete graphics card. The graphics support USB Type-C DisplayPort Alternate Mode, offering flexible connectivity options for modern displays.

Memory and Expansion

The AM5 socket supports DDR5 memory across 2 channels, with a maximum capacity of 128GB. Memory speeds reach up to 5200 MT/s in single-rank configurations, ensuring compatibility with the latest high-speed memory modules. The processor provides 28 total PCIe lanes (24 usable), with additional lanes available through compatible X670E, X670, B650E, and B650 motherboards for extensive expansion capabilities.

Power and Cooling Requirements

With a 105W TDP (142W turbo), the Ryzen 7 7700X requires adequate cooling solutions. This processor does not include a heatsink or fan, allowing users to select cooling solutions that match their specific performance and acoustic preferences. Proper thermal management is essential to maintain boost clock speeds and system stability.

AMD Technologies

The processor supports AMD EXPO Technology for simplified memory overclocking and includes AMD Ryzen Technologies for enhanced performance optimization. These features work together to maximize system performance while maintaining stability across various workloads.

Specifications Summary

• Socket: AM5
• Type: AMD Ryzen 7
• Clock Speed: 4.5 GHz
• Turbo Speed: 5.4 GHz
• #Hide#Generation: Ryzen 7th gen
• Cores: 8 Core
• Core Size: "CPU Cores: TSMC 5nm FinFET
  I/O Die; TSMC 6nm FinFET"
• Threads: 16
• Cache: L1 Cache: 512KB
  L2 Cache: 8MB
  L3 Cache: 32MB
• TDP: 105W
  142W Turbo
• Graphics: Yes
• Graphics Details: AMD Radeon Graphics
  Graphics Cores: 2
  Frequency: 2200 MHz
  GPU Base: 400 MHz
  USB Type-C DisplayPort Alternate Mode support
• Memory: Memory Channels: 2
  Max. Memory: 128GB
  System Memory Subtype: UDIMM

  Max Memory Speed:
  1x1R 5200 MT/s
  1x2R 5200 MT/s
  2x1R 3600 MT/s
  2x2R 3600 MT/s
• Max PCI Express Lanes: 28/24 (Total/Usable)

  Additional Usable PCIe Lanes from Motherboard:
  AMD X670E: 12x Gen4
  AMD X670: 12x Gen4
  AMD B650E: 8x Gen4
  AMD B650: 8x Gen4
• Cooler: No
• Special Features: AMD EXPO Technology
  AMD Ryzen Technologies
• Package Type: Retail
• Package Weight: 0.1150 kg
• Warranty: 3 Years

Backed by a 3-year warranty, the AMD Ryzen 7 7700X represents a solid foundation for high-performance desktop systems focused on gaming, content creation, and professional applications.
