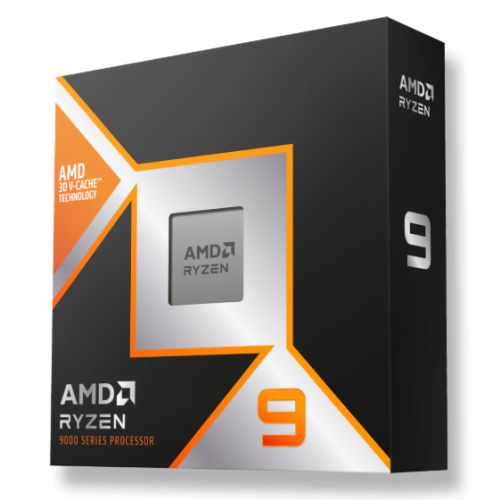

AMD Ryzen 9 9950X3D Desktop Processor

The AMD Ryzen 9 9950X3D represents the pinnacle of desktop computing with 2nd Gen AMD 3D V-Cache Technology. This 16-core, 32-thread processor delivers exceptional performance for gaming, content creation, and professional workloads with a base clock of 4.3GHz and boost speeds reaching 5.7GHz.

2nd Gen 3D V-Cache Technology

Built with exclusive AMD 3D V-Cache technology, the 9950X3D features 144MB of total cache (1280KB L1, 16MB L2, 128MB L3) - the largest on-chip memory available on a consumer processor. This massive cache delivers significant performance gains in gaming and real-time data processing applications.

Advanced 4nm Architecture

Manufactured on TSMC's 4nm FinFET process for CPU cores and 6nm FinFET for the I/O die, the Ryzen 9 9950X3D achieves superior power efficiency with a 170W TDP. The advanced node technology enables higher clock speeds while maintaining thermal efficiency.

AM5 Platform Features

Designed for the AM5 socket, this processor supports DDR5 memory with speeds up to DDR5-5600 and PCIe Gen 5.0 across 28 total lanes (24 usable). The platform supports up to 192GB of DDR5 memory across two channels, with AMD EXPO technology enabling optimized memory profiles for enhanced performance.

Integrated Graphics

Features AMD Radeon Graphics with 2 compute units running at 2200MHz. Includes USB Type-C DisplayPort Alternate Mode support for versatile display connectivity without a dedicated graphics card.

AI-Ready Performance

Built-in AI acceleration enhances productivity and content creation workflows. Pair with AMD Radeon RX 9000 Series graphics cards for optimized AI performance across gaming and creative applications.

Package Contents

This retail package includes the AMD Ryzen 9 9950X3D processor only. No heatsink or fan included - compatible AM5 cooling solution required separately. Backed by a 3-year manufacturer warranty.

AMD Ryzen™ 9 9950X3D Gaming and Content Creation Processor

Description

Specification

• Socket: AM5
• Type: AMD Ryzen 9
• Clock Speed: 4.3GHz
• Turbo Speed: 5.7GHz
• #Hide#Generation: Ryzen 9th gen
• Cores: 16 Core
• Core Size: CPU Cores: TSMC 4nm FinFET
  I/O Die: TSMC 6nm FinFET
• Threads: 32
• Cache: L1 Cache: 1280 KB
  L2 Cache: 16 MB
  L3 Cache: 128 MB
• TDP: Default TDP: 170W
• Graphics: Yes
• Graphics Details: AMD Radeon Graphics
  Graphics Core Count: 2
  Graphics Frequency: 2200 MHz
  USB Type-C DisplayPort Alternate Mode support
• Memory: System Memory Type: DDR5
  Memory Channels: 2
  Max. Memory: 192GB
  System Memory Subtype: UDIMM

  Max Memory Speed:
  2x1R - DDR5-5600
  2x2R - DDR5-5600
  4x1R - DDR5-3600
  4x2R - DDR5-3600
• Max PCI Express Lanes: 28/24 (Total/Usable)
• Cooler: No
• Special Features: AMD EXPO Technology
  AMD Ryzen Technologies
• Package Type: Retail
• Package Weight: 0.0500 kg
• Warranty: 3 Years
