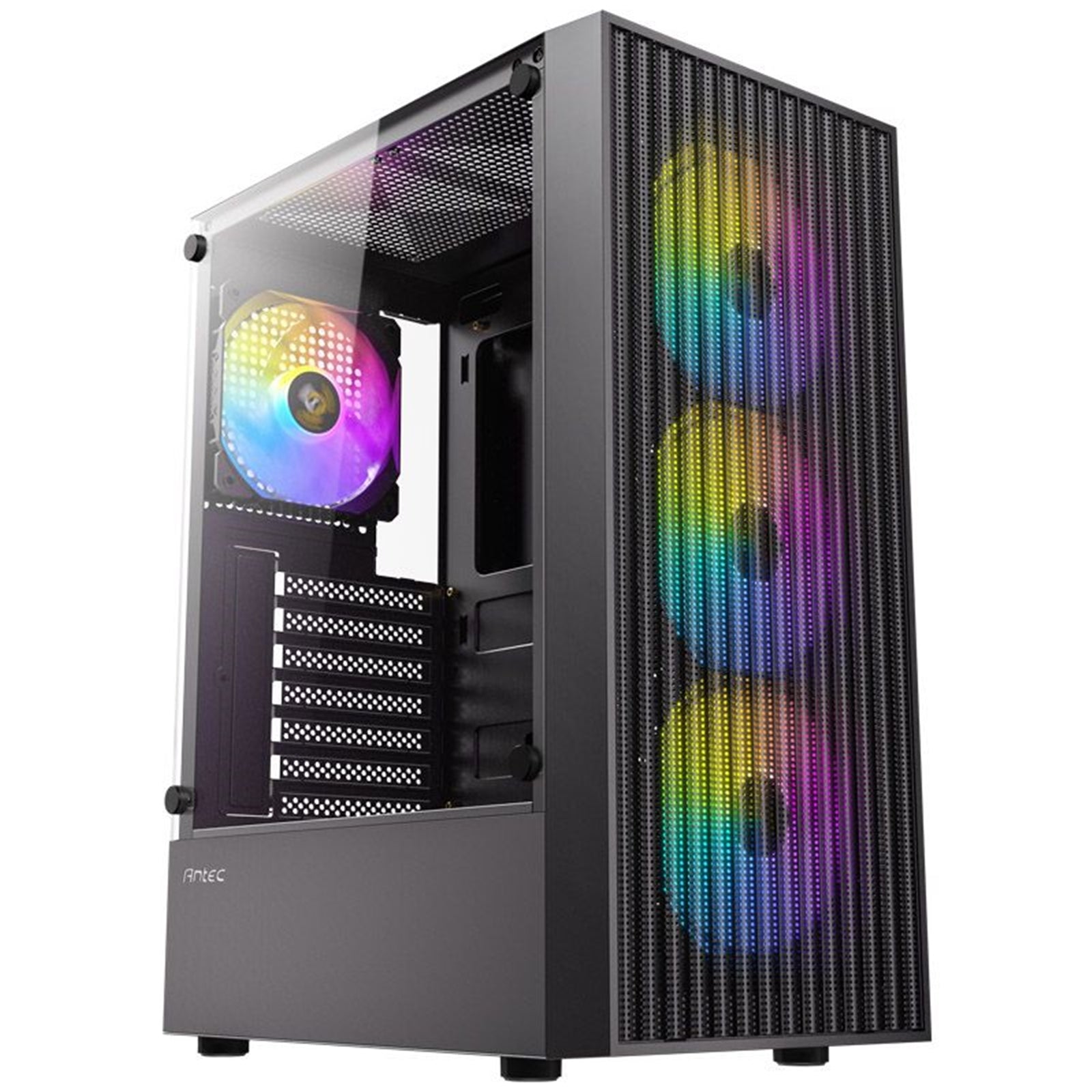

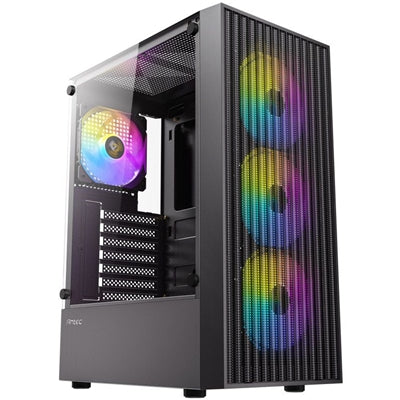

Antec AX27 RGB Elite Mid-Tower Gaming Case

The Antec AX27 RGB Elite delivers optimized airflow and visual appeal for gaming PC builds. This mid-tower case features a full mesh front panel that maximizes ventilation while a tempered glass side panel displays your components. Four pre-installed 120mm Fixed-RGB fans—three front-mounted and one rear—provide illumination without requiring external RGB controllers or software configuration.

Cooling and Airflow Performance

The full mesh front design ensures unrestricted airflow to your components. The pre-configured fan setup creates positive air pressure for efficient cooling. Radiator support includes 120mm, 140mm, 240mm, and 280mm configurations at the front, plus 120mm at the rear. Additional fan mounting points at the top (up to 2x 120mm) and PSU shroud area (up to 2x 120mm) allow further cooling customization.

Build Compatibility and Clearances

Compatible with ATX, Micro-ATX, and ITX motherboards, the AX27 RGB Elite accommodates various build configurations. GPU clearance reaches 295mm with front fans installed (270mm with rear fan). CPU cooler height supports up to 155mm, fitting most air coolers. PSU length extends to 170mm with HDD installed, or up to 295mm without storage drives. Seven expansion slots provide flexibility for multi-GPU setups and expansion cards.

Storage and Cable Management

Storage options include two 3.5" HDD or 2.5" SSD combo bays, plus two dedicated 2.5" SSD bays. The steel and plastic chassis construction incorporates cable routing channels for clean builds. The PSU shroud conceals cables and power supplies for improved aesthetics.

I/O and Connectivity

Front panel I/O features 1x USB 3.0 port, 2x USB 2.0 ports, and 1x HD Audio combo jack for convenient access to peripherals and audio devices.

Technical Specifications

Case Type: Mid-Tower
Motherboard Support: ATX, Micro-ATX, ITX
Material: Steel and Plastic
Color: Black
Front Panel: Full-Mesh Design for High Airflow
Side Panel: Tempered Glass (Half View)
Pre-installed Fans: 3x 120mm Fixed-RGB Fans (Front), 1x 120mm Fixed-RGB Fan (Rear)
Fan Support: Front: Up to 3x 120mm or 2x 140mm | Top: Up to 2x 120mm | Rear: 1x 120mm | PSU Shroud Area: Up to 2x 120mm
Radiator Support: Front: 120mm, 140mm, 240mm, 280mm | Rear: 120mm
Storage Bays: 2x 3.5" HDD or 2.5" SSD Combo Bays | 2x Dedicated 2.5" SSD Bays
Expansion Slots: 7
I/O Ports: 1x USB 3.0 | 2x USB 2.0 | 1x HD Audio Combo Jack
Clearance: Max GPU Length: 295mm (with front fans), 270mm (with rear fan) | Max CPU Cooler Height: 155mm | Max PSU Length: 170mm (with HDD installed), up to 295mm (without HDD)
Dimensions (D x W x H): 451 x 207 x 345mm
Net Weight: 4.1kg
Gross Weight: Approx. 5kg
Warranty: 2 Years Manufacturer Warranty
MPN: 0-761345-10205-6
EAN/UPC: 0761345102056

• Form Factor: Mid Tower
• Micro-ATX, and ITX motherboards
• PSU Included: None
• Case Colour: Black
• LED Colour: RGB
• USB 3.0: 1
• Side Panel: Tempered Glass
