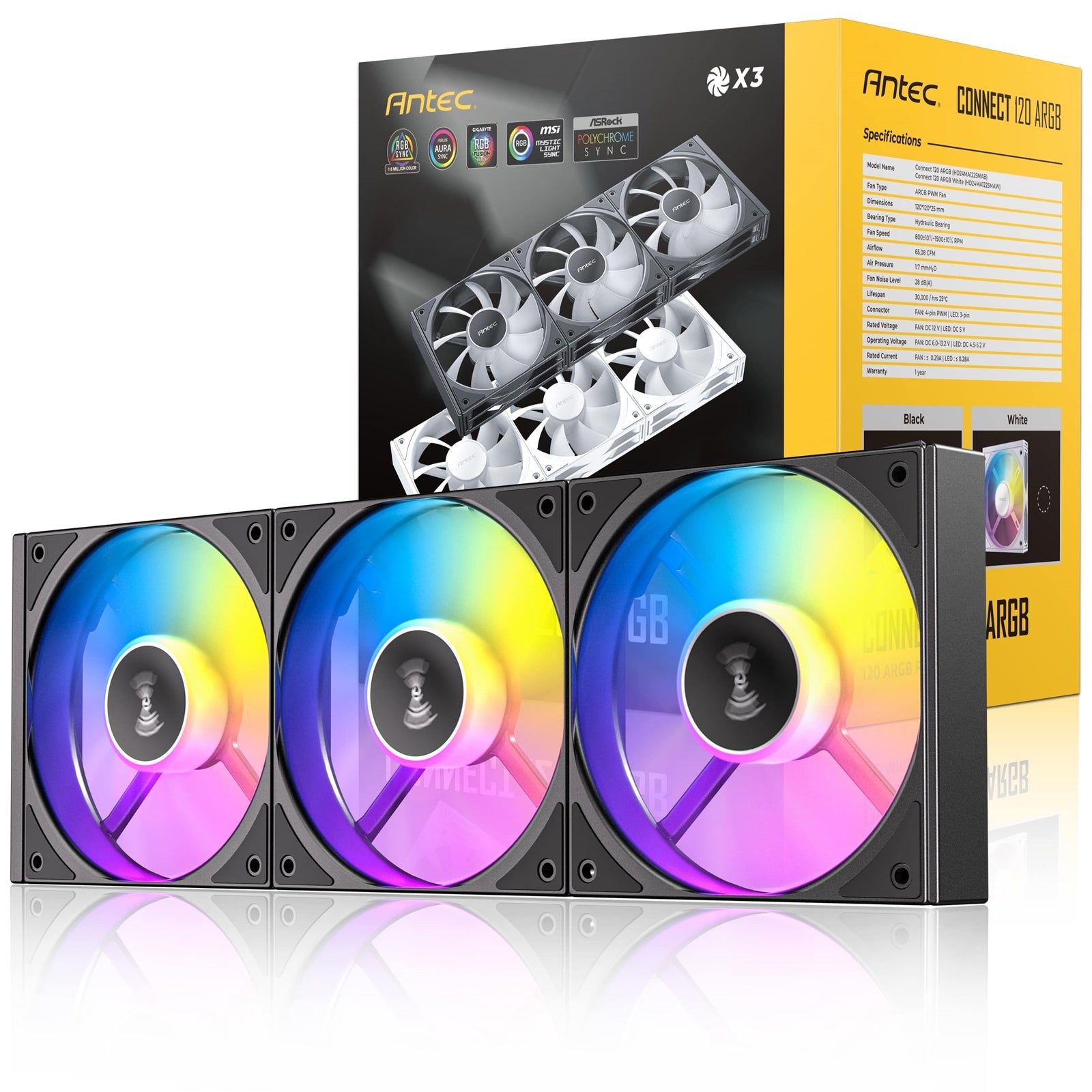

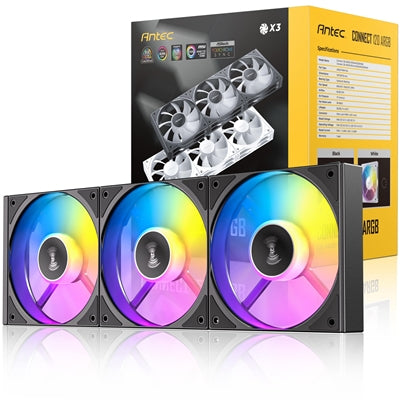

Antec Connect 120 ARGB 3-Pack PWM Fans

The Antec Connect 120 ARGB fan system delivers efficient cooling with a simplified installation process. This 3-pack of 120mm PWM fans features an intuitive interlocking system that reduces cable clutter and streamlines mounting in your PC case.

Intuitive Interlocking Installation System

The Connect 120 ARGB features an innovative interlocking design that allows fans to connect internally with each other. This system enables you to mount three fans using just four screws, significantly reducing installation time and complexity. The daisy chain design minimizes cable management requirements, creating a cleaner build with fewer connections to manage.

Performance Specifications

Each 120mm fan utilizes a hydraulic bearing system for reliable operation with a 30,000-hour lifespan at 25°C. The PWM control allows fan speeds ranging from 800 RPM to 1500 RPM, delivering up to 65.08 CFM of airflow with 1.7 mmH2O air pressure. Operating at a maximum noise level of 28 dB(A), these fans maintain quiet performance even under load.

Vibration Dampening Technology

Eight enlarged anti-vibration pads are strategically positioned on each fan to effectively reduce vibration transfer and operational noise. These pads absorb mechanical vibrations during operation, contributing to the overall quiet performance of your system.

ARGB Lighting Synchronization

The addressable RGB lighting system uses an extendable 3-pin daisy-chain connector for easy integration with your motherboard and other RGB components. This allows you to synchronize lighting effects across your entire system through compatible motherboard software.

Technical Specifications

Fan Type: ARGB PWM Fan
Dimensions: 120 x 120 x 25 mm
Bearing Type: Hydraulic Bearing
Fan Speed: 800±10%~ 1500±10% RPM
Airflow: 65.08 CFM
Air Pressure: 1.7 mmH2O
Fan Noise Level: 28 dB(A)
Lifespan: 30,000 hrs @ 25°C
Connector: FAN: 4-pin PWM | LED: 3-pin
Rated Voltage: FAN: DC 12V | LED: DC 5V
Operation Voltage: FAN: DC 6.0-13.2V | LED: DC 4.5-5.2V
Rated Current: FAN: ≤ 0.29A | LED: ≤ 0.28A
Warranty: 1 year

Installation Notes

When installing the fan covers, position the cable outlet over the male connector to ensure proper connection. The interlocking system allows for straightforward installation while maintaining secure mounting throughout operation.

• Product Type: Case Fan
• Fan Size: 120mm
• Max Fan Speed: 1500RPM
• Fan Shroud Colour: Black
• LED Colour: Addressable RGB
• Connections: 4-Pin Fan & 3-Pin ARGB
