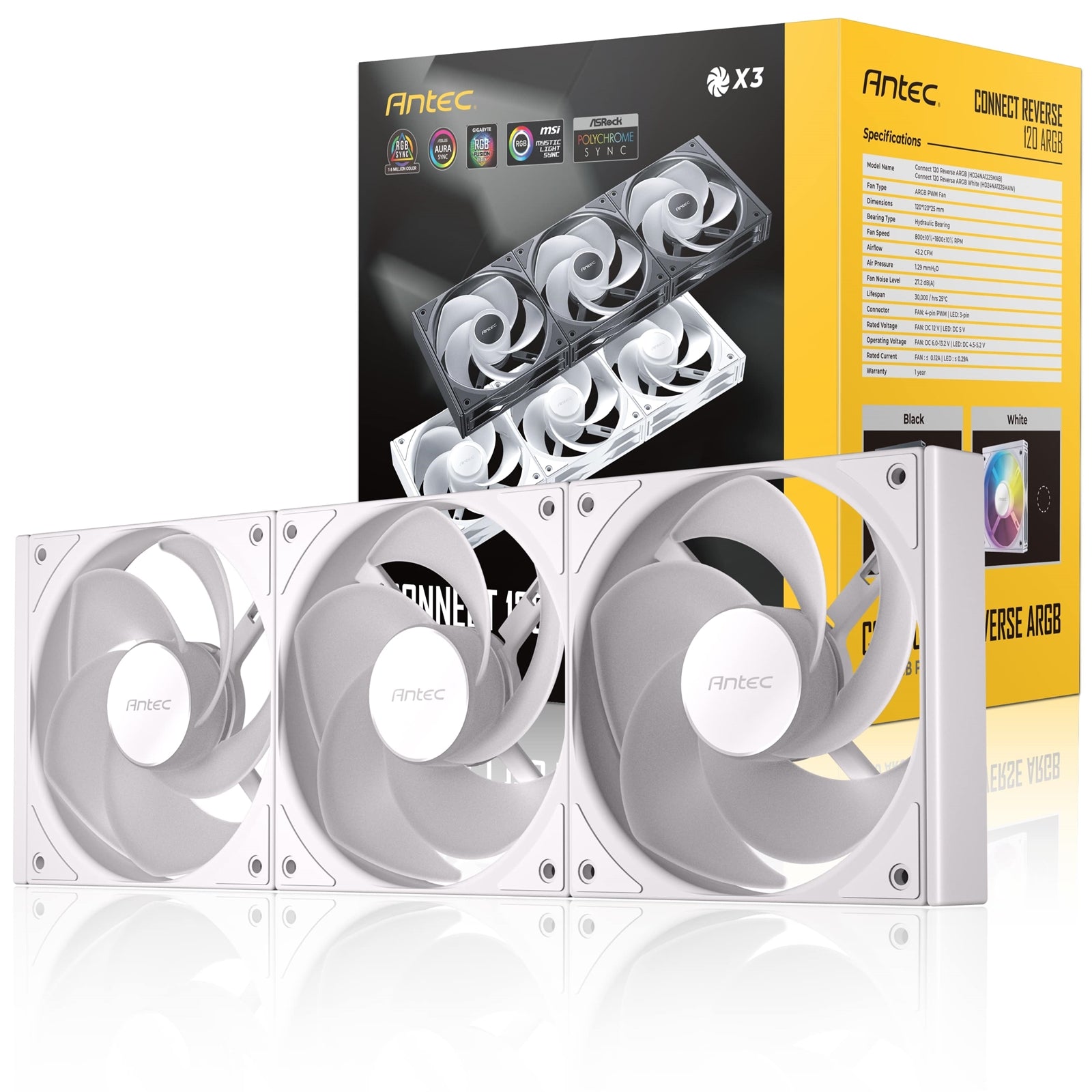

Antec Connect 120 Reverse ARGB White Fans - 3-Pack

The Antec Connect 120 Reverse ARGB fans feature an innovative reverse blade design that delivers smoother air intake with a cleaner aesthetic. This 3-pack includes 120mm PWM fans with addressable RGB lighting and an intuitive daisy chain system for simplified installation.

Streamlined Installation System

The intuitive interlocking system allows fans to connect internally with each other, reducing installation complexity. Mount all three fans using just four screws instead of the traditional twelve, saving time and effort during PC builds. The daisy chain design minimizes cable clutter with fewer cables required for both power and lighting connections.

Performance Specifications

These hydraulic bearing fans operate at 800-1800 RPM with PWM control, delivering 43.2 CFM airflow and 1.29 mmH2O air pressure. Noise levels remain low at 27.2 dB(A) during operation. The fans are rated for 30,000 hours of operation at 25°C, ensuring long-term reliability.

Vibration Reduction Technology

Eight enlarged anti-vibration pads per fan effectively reduce vibration and noise during operation. These pads absorb mechanical vibrations that would otherwise transfer to your case, maintaining quieter system performance even at higher RPM speeds.

ARGB Lighting Integration

The extendable 3-pin daisy-chain ARGB connector synchronizes lighting effects with your motherboard and other components. Connect all three fans with a single cable to your motherboard's ARGB header for unified lighting control through your motherboard software.

Reverse Blade Design

The reverse fan blade configuration provides improved air intake characteristics while presenting a cleaner visual appearance. This design positions the fan motor and frame behind the blades, creating a more streamlined look when viewed through case panels.

Technical Specifications

Model Name: C120R ARGB White 3PK
Fan Type: ARGB PWM Fan
Dimensions: 120 x 120 x 25 mm
Bearing Type: Hydraulic Bearing
Fan Speed: 800RPM ± 10% - 1800RPM ± 10%
Airflow: 43.2 CFM
Air Pressure: 1.29 mmH2O
Fan Noise Level: 27.2 dB(A)
Lifespan: 30,000 hours / 25°C
Connector: FAN: 4-pin PWM | LED: 3-pin
Rated Voltage: FAN: DC 12V | LED: DC 5V
Operation Voltage: FAN: DC 6.0-13.2V | LED: DC 4.5-5.2V
Rated Current: FAN: ≤ 0.12A±10% | LED: ≤ 0.29A±10%
Warranty: 1 Year

Installation Notes

When installing fan covers, position the cable outlet over the male connector to ensure proper connection between interlocked fans.

• Product Type: Case Fan
• Fan Size: 120mm
• Max Fan Speed: 1800RPM
• Fan Shroud Colour: White
• LED Colour: Addressable RGB
• Connections: 4-Pin Fan & 3-Pin ARGB
