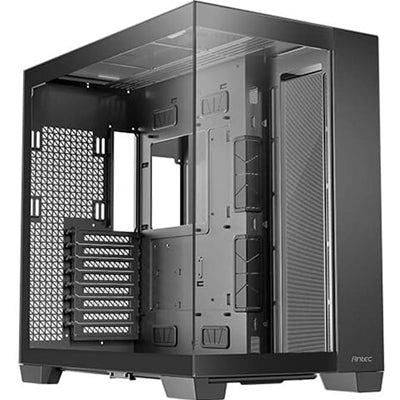

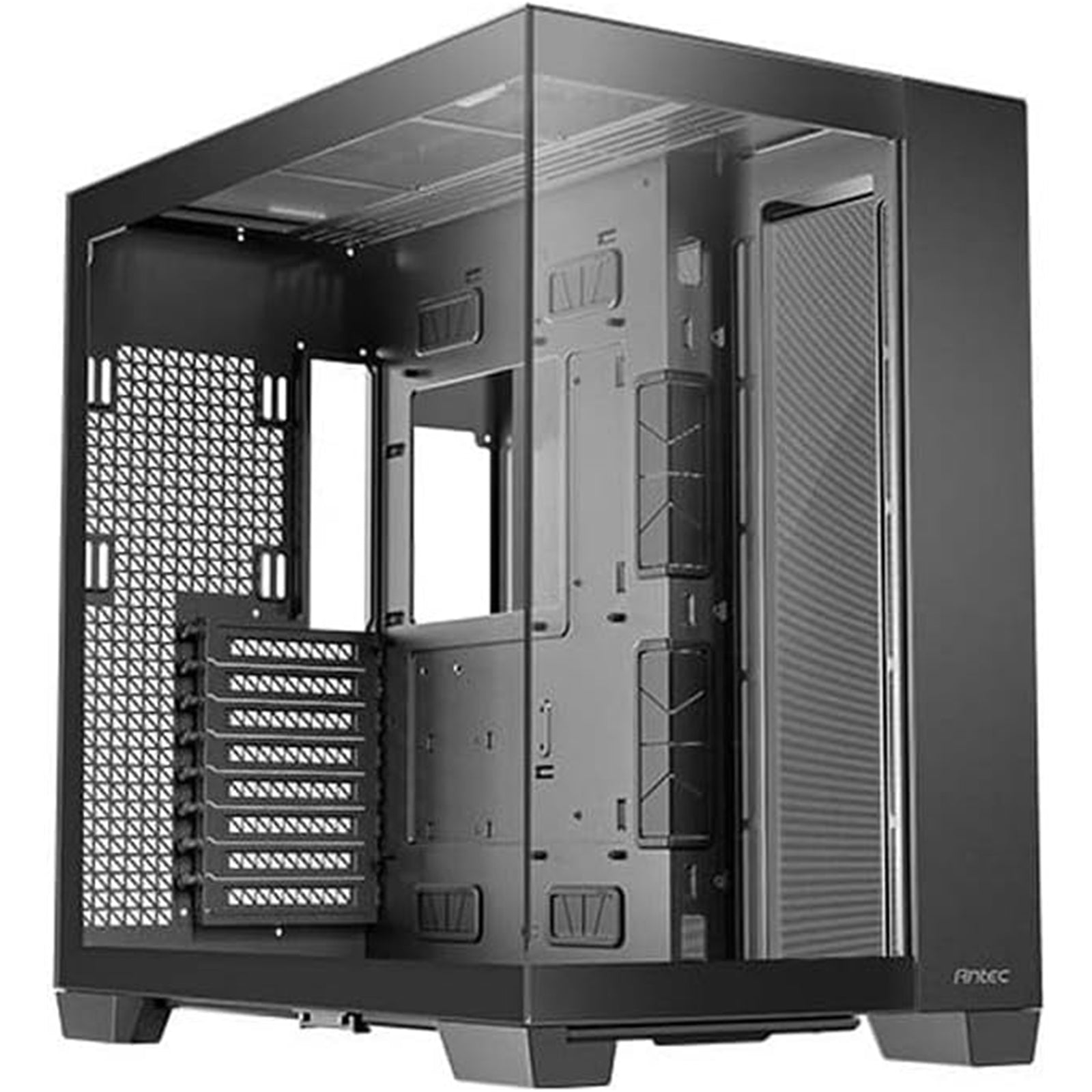

ANTEC Constellation C8 Dual Chamber Full Tower Gaming Case

The ANTEC Constellation C8 is a full tower gaming case engineered with a dual chamber design that separates CPU/GPU cooling from PSU and drive bay thermals. This black steel and tempered glass chassis supports E-ATX, ATX, Micro-ATX, and ITX motherboards up to 280mm wide, providing extensive build compatibility for high-performance gaming systems.

Dual Chamber Cooling Architecture

The C8's dual chamber structure independently manages airflow for your primary components and power supply. This case supports up to 10 fans simultaneously across multiple mounting positions: 3x120/140mm or 2x160mm fans on top, 3x120/2x140mm on the side, 3x120/140mm or 2x160mm on bottom, and 120/140mm rear exhaust. Radiator support extends to 360mm configurations on top, side, and bottom panels, with 120mm rear radiator compatibility.

Tempered Glass Panels and Build Visibility

4mm tempered glass panels on the left side and front provide clear visibility of your components while maintaining structural integrity. The tool-free quick-release panel system allows easy access to the front, top, and side sections without requiring tools for routine maintenance or upgrades.

Component Compatibility and Clearances

This full tower accommodates graphics cards up to 440mm in length, CPU coolers up to 175mm in height, and power supplies up to 210mm (excluding cables). The chassis provides 8 expansion slots and modular drive trays supporting 2x 3.5" HDDs and 4x 2.5" SSDs for flexible storage configurations.

Front Panel Connectivity

The front I/O panel includes 2x USB 3.0 ports, 1x USB Type-C 10Gbps port, power and reset buttons, plus a headphone/microphone combo jack. This connectivity suite ensures compatibility with modern peripherals and high-speed data transfer requirements.

Dust Management and Build Quality

Full mesh panels on the top and right side promote airflow while a full-sized pull-out dust filter at the bottom prevents dust accumulation. The chassis construction uses 0.8mm and 1.0mm thick steel for durability. Interior velcro straps and cable routing rubber grommets facilitate organized cable management throughout the build process.

Specifications

Case Dimensions
464 x 303 x 476mm (DWH)

Form Factor
Full Tower

Materials
Steel + Plastic + Glass

Motherboard Support
E-ATX (280mm), ATX, M-ATX, ITX

Front Access & Controls
Power, Reset, USB 3.0 x 2, Type-C 10Gbps x 1, Headphone/Mic Combo Jack

Side Panel
4mm Tempered Glass

Expansion Slots
8

3.5"
2

2.5"
4

Fans Included
None - Fans shown for illustration only (FAANT-TQ120ARGB)

Top Fan Support
3 x 120 / 3 x 140 / 2 x 160mm

Side Fan Support
3 x 120 / 2 x 140mm

Bottom Fan Support
3 x 120 / 3 x 140 / 2 x 160mm

Rear Fan Support
120 / 140mm

Top Radiator Support
120 / 140 / 240 / 280 / 360mm

Side Radiator Support
120 / 140 / 240 / 280 / 360mm

Bottom Radiator Support
120 / 140 / 240 / 280 / 360mm

Rear Radiator Support
120mm

Max GPU Length
440mm

Max CPU Cooler Height
175mm

Max PSU Length
210mm (without cable)

Cooling Design
Dual chamber design for independent cooling of CPU/GPU and PSU/Drives.
Supports up to 10 fans simultaneously.

Dustproof Design
Full mesh panels on the top and right side.
Full-sized pull-out dust filter at the bottom.

Structure
0.8mm + 1.0mm thick steel for robust protection.
Tool-free quick-release panels on the front, top, and sides.

Storage Compatibility
Modular drive trays supporting up to 6 drives: 2 x 3.5" HDD & 4 x 2.5" SSD.

Cable Management
Interior velcro straps and cable routing rubber grommets for organized cable management.

MPN
0-761345-10019-9

• Form Factor: Full Tower
• Motherboard Support: E-ATX
• PSU Included: None
• Case Colour: Black
• LED Colour: None
• USB 3.0: 2
• Side Panel: Panoramic Tempered Glass
