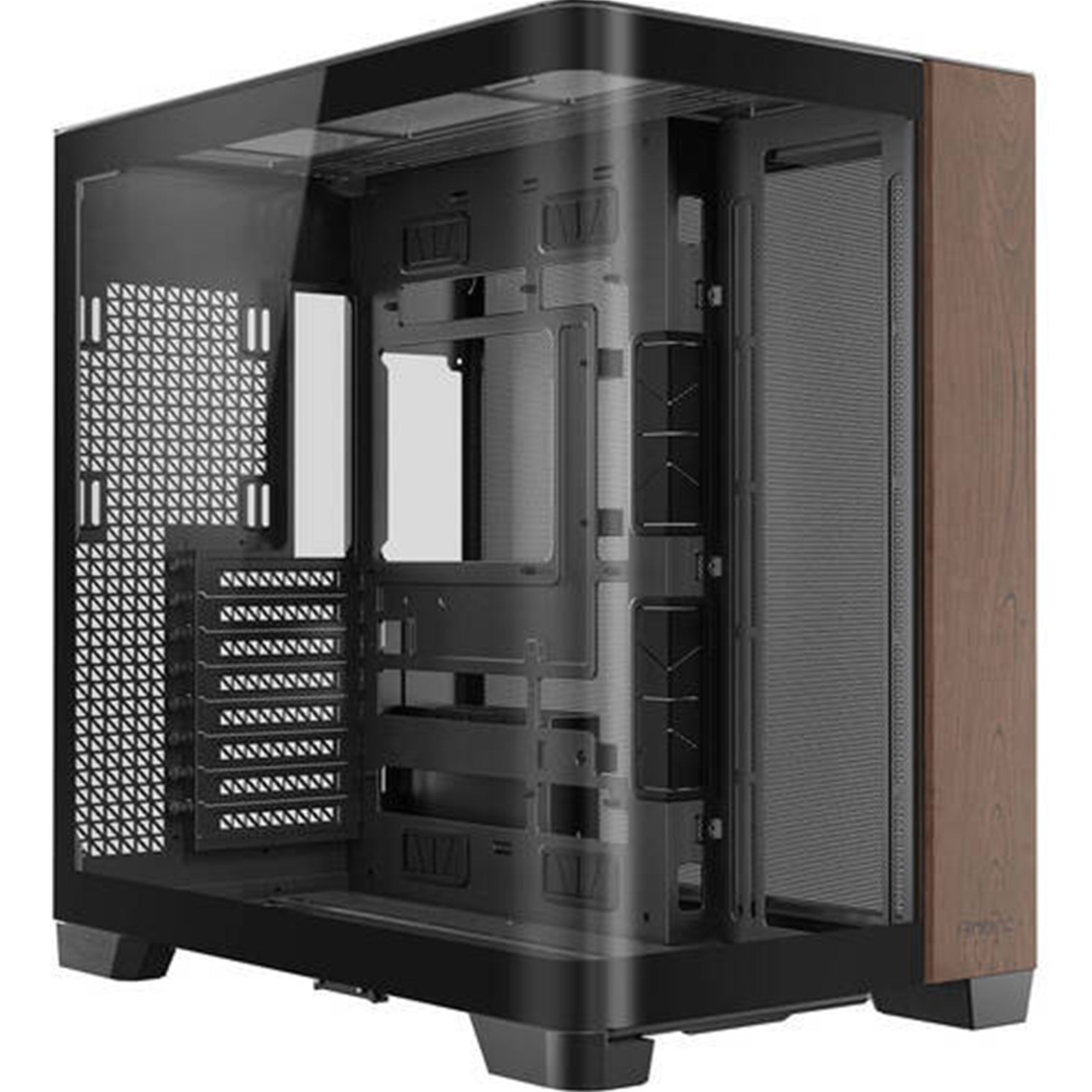

ANTEC Constellation C8 Curve Wood - Premium Dual Chamber Gaming Case

The ANTEC Constellation C8 Curve Wood combines striking aesthetics with exceptional cooling performance. This full tower case features a super wide angle single curved tempered glass panel that provides an uninterrupted panoramic view of your build, while the exotic walnut wood accent on the right front seamlessly integrates into any interior design style.

Dual Chamber Architecture for Superior Cooling

The dual chamber design separates CPU/GPU cooling on the left side from PSU/drives on the right side, creating independent thermal zones for optimal performance. This innovative layout supports up to 10 fans simultaneously and accommodates three 360mm radiators on top, bottom, and side positions for extreme liquid cooling configurations. The vertical cooling system efficiently channels airflow with support for three 120mm/140mm or two 160mm fans on both top and bottom.

Back-Connect Motherboard Support

The C8 supports back-connect motherboards, allowing cables to be routed behind the motherboard for a cleaner front appearance and improved airflow channels. This design philosophy extends throughout the case with tool-free quick-release panels on front, top, and sides for simplified assembly and maintenance.

Extensive Hardware Compatibility

Built to accommodate high-end components, the C8 supports E-ATX (280mm), ATX, Micro-ATX, and ITX motherboards. The cavernous interior provides clearance for GPUs up to 440mm, CPU coolers up to 175mm tall, and PSUs up to 210mm long. Eight expansion slots ensure compatibility with multi-GPU configurations and expansion cards.

Premium Construction and Features

Constructed from robust 0.8mm and 1.0mm thick steel with 4mm tempered glass, the C8 delivers unwavering protection for your components. The I/O panel includes a mainstream Type-C port (10Gbps) for high-speed data transmission, two USB 3.0 ports, and a mic/audio combo jack with dust plugs for prevention. Modular drive trays support up to three drives: one 3.5" HDD and two 2.5" SSDs.

Optimized Airflow and Dust Management

Full mesh panels on top and right side maximize air intake, while a full-sized pull-out dust filter at the bottom prevents dust accumulation. Interchangeable fan brackets accommodate fans of different sizes, providing flexibility for custom cooling configurations. The case measures 464 x 303 x 476mm (DWH) and weighs 10.78kg, backed by a 2-year warranty.

C8 Curve Wood

Super wide angle single curved glass with exotic wood
C8 Curve Wood employs single piece of curved tempered glass panel which provides an uninterrupted panoramic view. Right side of front is made of wood (walnut) that could be seamlessly integrated into your interior design style.

Support Back-Connect Motherboards
Plug in cables from behind to give front a cleaner look and a smoother airflow channel.

Vertical Cooling
Can accommodate three 120mm/140mm or two 160mm fans each on top and bottom for efficient GPU cooling.

Bottom fan configuration
Comes with interchangeable fan brackets to cater to fans of different sizes.

Dual Chamber
Independent cooling for CPU/GPU on the left side & PSU/Drives on the right side.

Best Cooling Design
Support 3 x 360mm radiators on top, bottom, and side simultaneously for liquid cooling.

Cavernous space for extreme liquid cooling
Top, bottom and right side all support THICK 360mm radiators, providing ultra cooling capability and efficiency.

Best Cooling Design
Up to 10 fans simultaneously.
Supports 2 x 160mm fans on top / 2 x 160mm fans on bottom / 1 x 140mm fan at rear

Air intake and dust filter
Top - Full mesh panel
Right Side - Full mesh panel
Bottom - Full-sized pull-out dust filter

0.8mm + 1.0mm thick steel & Tool-Free design
The ultra robust 0.8mm & 1mm steel brings unwavering protection, and the tool-free quick-release panels on the front, top and sides make the assembly and cleaning of components simplified than ever.

I/O Panel
Mainstream Type-C (10Gbps) port for high-speed transmission
Dust plugs for dust prevention
Mic/Audio 2-in-1 port

Modular Drive Trays
Supports up to 3 drives: 1 *3.5" HDD & 2* 2.5" SSD

Extensive Interior

Motherboard support E-ATX(= 280 mm), ATX, Micro-ATX, ITX
CPU cooler max height = 175mm
GPU max length = 440mm
Power Supply max length = 210mm

Specifications

Main Spec

Dimensions
464 x 303 x 476mm (DWH)

Form Factor
Full Tower

Materials
Steel + Plastic + Glass + Wood

Mainboard Support
E-ATX(280mm), ATX, M-ATX, ITX

Front Access & Controls
Power, Reset, USB 3.0 x 2, Type-C 10Gbps x 1,
Headphone/Mic Combo Jack

Side Panel
4mm Tempered Glass

Drive Bays

Expansion Slots
8

3.5"
1

2.5"
2

Fan SUpport

Top
3 x 120 / 3 x 140 / 2 x 160mm

Side
3 x 120 / 2 x 140mm

Bottom
3 x 120 / 3 x 140 / 2 x 160mm

Rear
120 / 140mm

Radiator Support

Top
120 / 140 / 240 / 280 / 360mm

Side
120 / 140 / 240 / 280 / 360mm

Bottom
120 / 140 / 240 / 280 / 360mm

Rear
120mm

Clearance

Max GPU Length
= 440mm

Max CPU Cooler Height
= 175mm

Max PSU Length
(Not include cable)= 210mm

Miscellaneous

Dust Filter
Bottom

Net Weight
10.78 Kg

Gross Weight
14.18 Kg

Warranty
2 Years

• Form Factor: Full Tower
• Motherboard Support: E-ATX
• PSU Included: None
• Case Colour: Black
• LED Colour: None
• USB 3.0: 2
• Side Panel: Panoramic Tempered Glass
