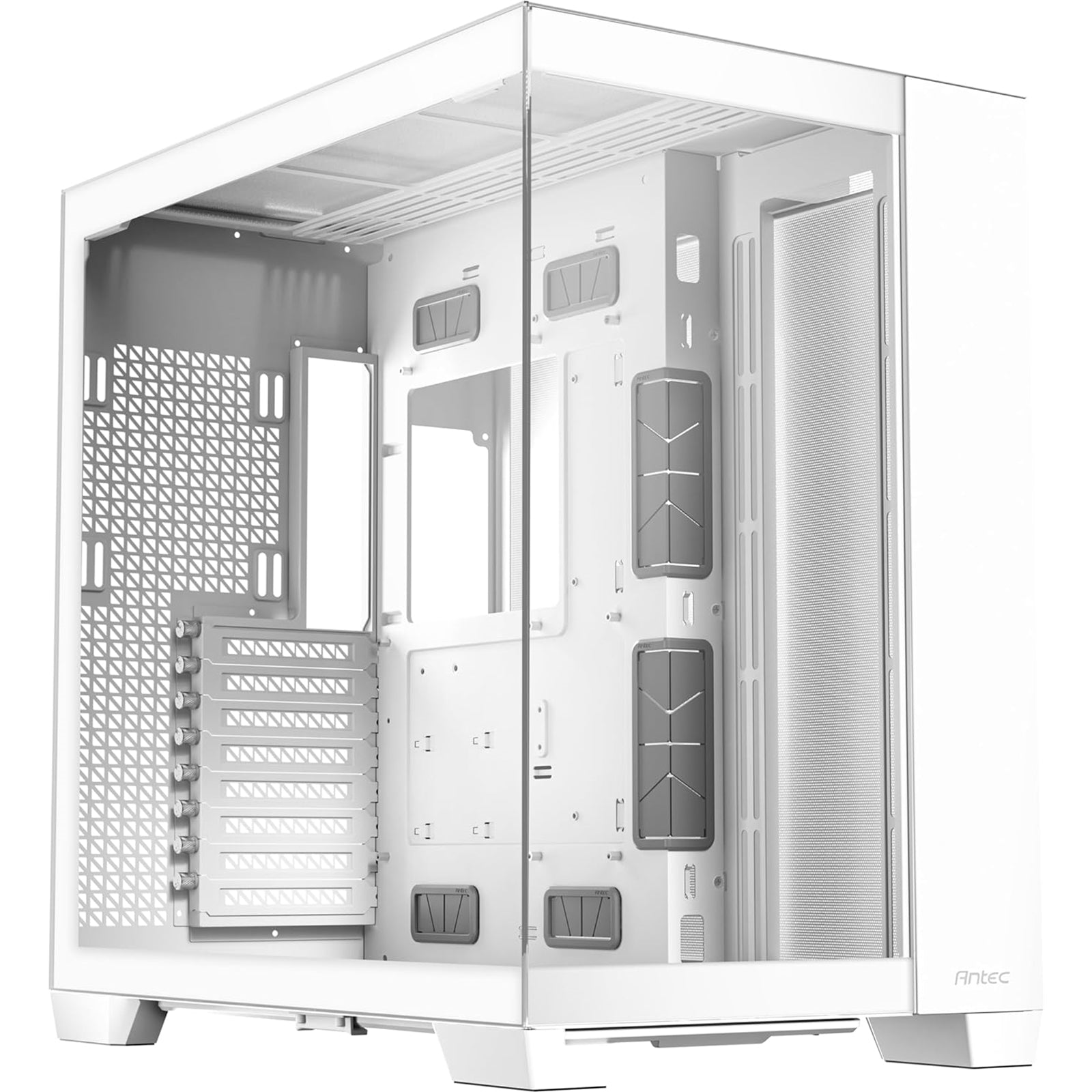

ANTEC Constellation C8 Dual Chamber Gaming Case

The ANTEC Constellation C8 is a full tower gaming case featuring dual chamber architecture for independent cooling zones. This white chassis accommodates E-ATX, ATX, Micro ATX, and ITX motherboards with dimensions of 464 x 303 x 476mm (DWH).

Dual Chamber Cooling Architecture

The C8's dual chamber design separates CPU/GPU components from PSU and drives, creating independent cooling zones for optimal thermal management. The case supports up to 10 fans simultaneously across multiple mounting positions: top (3x120/3x140/2x160mm), side (3x120/2x140mm), bottom (3x120/3x140/2x160mm), and rear (120/140mm). Radiator compatibility extends to 360mm on top, side, and bottom positions.

Tempered Glass Design

4mm tempered glass panels on the left side and front provide clear visibility of internal components. The tool-free quick-release mechanism on front, top, and side panels simplifies access for maintenance and upgrades.

Connectivity and Controls

Front panel I/O includes 2x USB 3.0 ports, 1x USB Type-C 10Gbps port, power and reset buttons, and a headphone/mic combo jack. This configuration supports modern peripheral connectivity and fast data transfer rates.

Hardware Compatibility

The C8 accommodates graphics cards up to 440mm in length, CPU coolers up to 175mm in height, and PSUs up to 210mm (without cables). Eight expansion slots provide flexibility for multi-GPU configurations and additional expansion cards. The case supports E-ATX motherboards up to 280mm wide.

Storage and Cable Management

Modular drive trays support up to 6 drives: 2x 3.5" HDDs and 4x 2.5" SSDs. Interior velcro straps and cable routing rubber grommets facilitate organized cable management within the dual chamber layout.

Build Quality and Filtration

Constructed from 0.8mm and 1.0mm thick steel with plastic and glass components, the C8 provides robust protection. Full mesh panels on top and right side promote airflow, while a full-sized pull-out dust filter at the bottom prevents dust accumulation.

Note: Fans are not included with the case. Images show FAANT-TQ120ARGB fans for illustration purposes only.

Case Dimensions
464 x 303 x 476mm (DWH)

Form Factor
Full Tower

Materials
Steel + Plastic + Glass

Motherboard Support
E-ATX (280mm), ATX, M-ATX, ITX

Front Access & Controls
Power, Reset, USB 3.0 x 2, Type-C 10Gbps x 1, Headphone/Mic Combo Jack

Side Panel
4mm Tempered Glass

Expansion Slots
8

3.5"
2

2.5"
4

Fans Included
None - Fans shown for illustration only (FAANT-TQ120ARGB)

Top Fan Support
3 x 120 / 3 x 140 / 2 x 160mm

Side Fan Support
3 x 120 / 2 x 140mm

Bottom Fan Support
3 x 120 / 3 x 140 / 2 x 160mm

Rear Fan Support
120 / 140mm

Top Radiator Support
120 / 140 / 240 / 280 / 360mm

Side Radiator Support
120 / 140 / 240 / 280 / 360mm

Bottom Radiator Support
120 / 140 / 240 / 280 / 360mm

Rear Radiator Support
120mm

Max GPU Length
440mm

Max CPU Cooler Height
175mm

Max PSU Length
210mm (without cable)

Cooling Design
Dual chamber design for independent cooling of CPU/GPU and PSU/Drives.
Supports up to 10 fans simultaneously.

Dustproof Design
Full mesh panels on the top and right side.
Full-sized pull-out dust filter at the bottom.

Structure
0.8mm + 1.0mm thick steel for robust protection.
Tool-free quick-release panels on the front, top, and sides.

Storage Compatibility
Modular drive trays supporting up to 6 drives: 2 x 3.5" HDD & 4 x 2.5" SSD.

Cable Management
Interior velcro straps and cable routing rubber grommets for organized cable management.

MPN
0-761345-10021-2

• Form Factor: Mid Tower
• Motherboard Support: E-ATX
• PSU Included: None
• Case Colour: White
• LED Colour: None
• USB 3.0: 2
• Side Panel: Panoramic Tempered Glass
