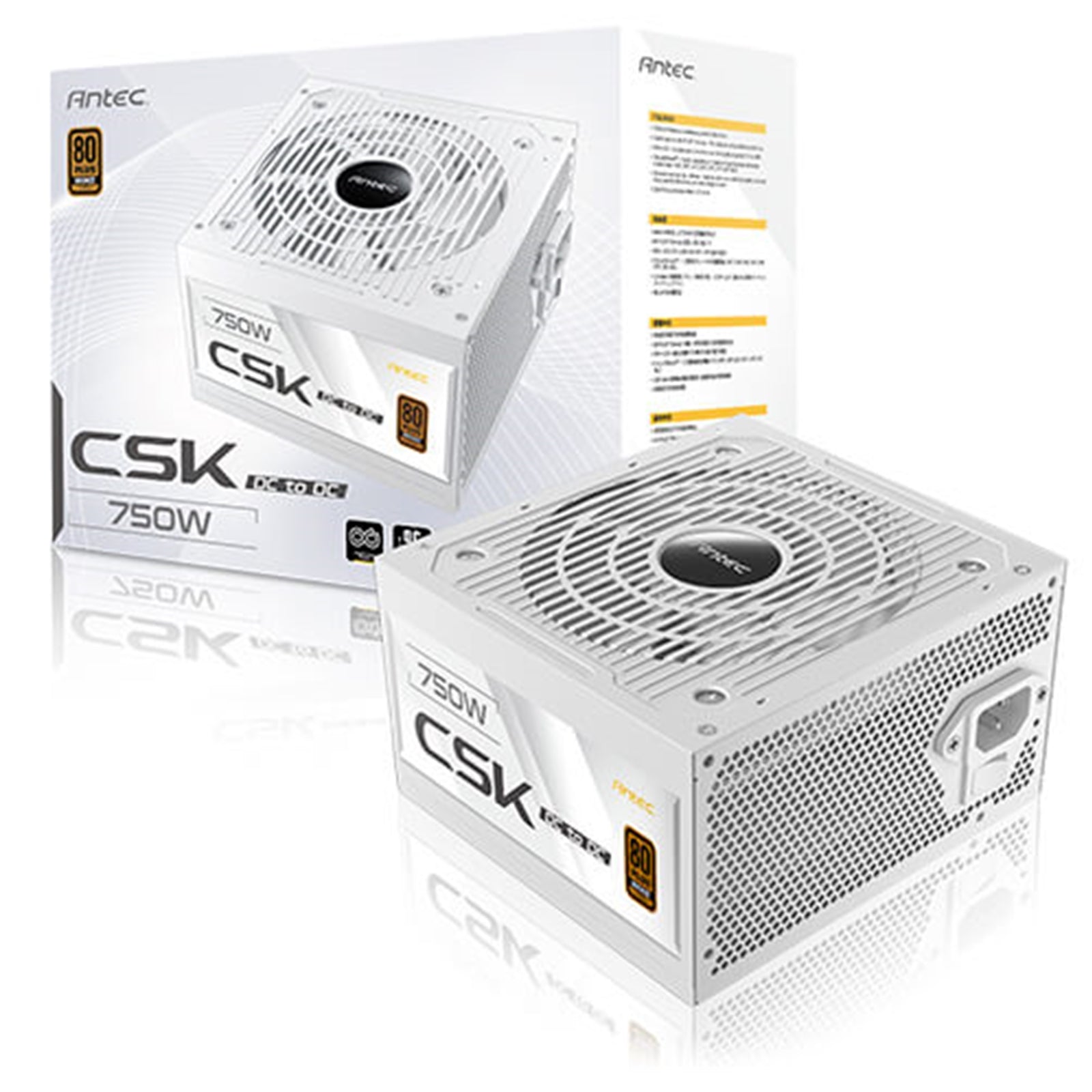

Antec CSK DC 750W White Power Supply

The Antec CSK DC 750W delivers reliable power for modern gaming and workstation builds. This white ATX power supply features DC-to-DC architecture with 80 PLUS Bronze certification, achieving up to 88% efficiency for cooler, quieter operation.

PCIe 5.1 Ready for Latest Graphics Cards

Equipped with a 16-pin PCIe 5.1 / 12V-2x6 GPU cable supporting 300W, the CSK750 DC ensures seamless compatibility with current-generation graphics cards. The fully wired configuration includes 1x 24-pin motherboard connector, 2x 8-pin CPU connectors, 4x 8-pin PCIe connectors, 6x SATA connectors, and 3x Molex connectors.

DC-to-DC Architecture with Active PFC

The DC-to-DC design paired with active power factor correction delivers stable, continuous 750W output across 100V-240V input voltage. CircuitShield™ industrial-grade protections safeguard your components against overvoltage, overcurrent, short circuits, and overtemperature conditions.

Thermal Management and Silent Operation

The 120mm silent fan operates with Thermal Manager technology, providing advanced low-voltage fan control for optimal heat and noise management. This system maintains ideal operating temperatures between 0-40°C while minimizing acoustic output during standard workloads.

Compact ATX Form Factor

Measuring smaller than standard ATX power supplies, the CSK DC 750W fits a wider range of computer cases while maintaining full ATX compatibility. The white finish complements modern white-themed builds and RGB setups.

5-Year Warranty Coverage

Antec backs the CSK DC 750W with a comprehensive 5-year warranty, including technical support and customer service throughout the product lifecycle.

Technical Specifications

Modular: Non-Modular
Input Voltage: 100V-240V
Input Current: 12A Max
Input Frequency Range: 50Hz-60Hz
PFC: Active PFC
Power Good Signal: 100-500ms
Output Capacity: 750W
Operation Temperature: 0~40C
Fan: 120mm Silent Fan
Certifications: 80 Plus Bronze

Connectors:
1 x 24(20+4)pin MB
1 x 16(12+4)pin PCIE 5.1 / 12V-2x6 / 300W
2 x 8(4+4)pin CPU
4 x 8(6+2)pin PCI-E
6 x SATA
3 x Molex

Unit Box Dimensions: 255mm(L)*195mm(W)*100mm(H)
Shipping Box Dimensions: 545mm(L)*425mm(W)*230mm(H)
Net Weight: 1.80KG
Gross Weight: 2.00KG

• Wattage: 750W
• Size/Version: ATX
• Modular: No
• SATA Connections: 6
• Certification: Bronze
• Colour: White
