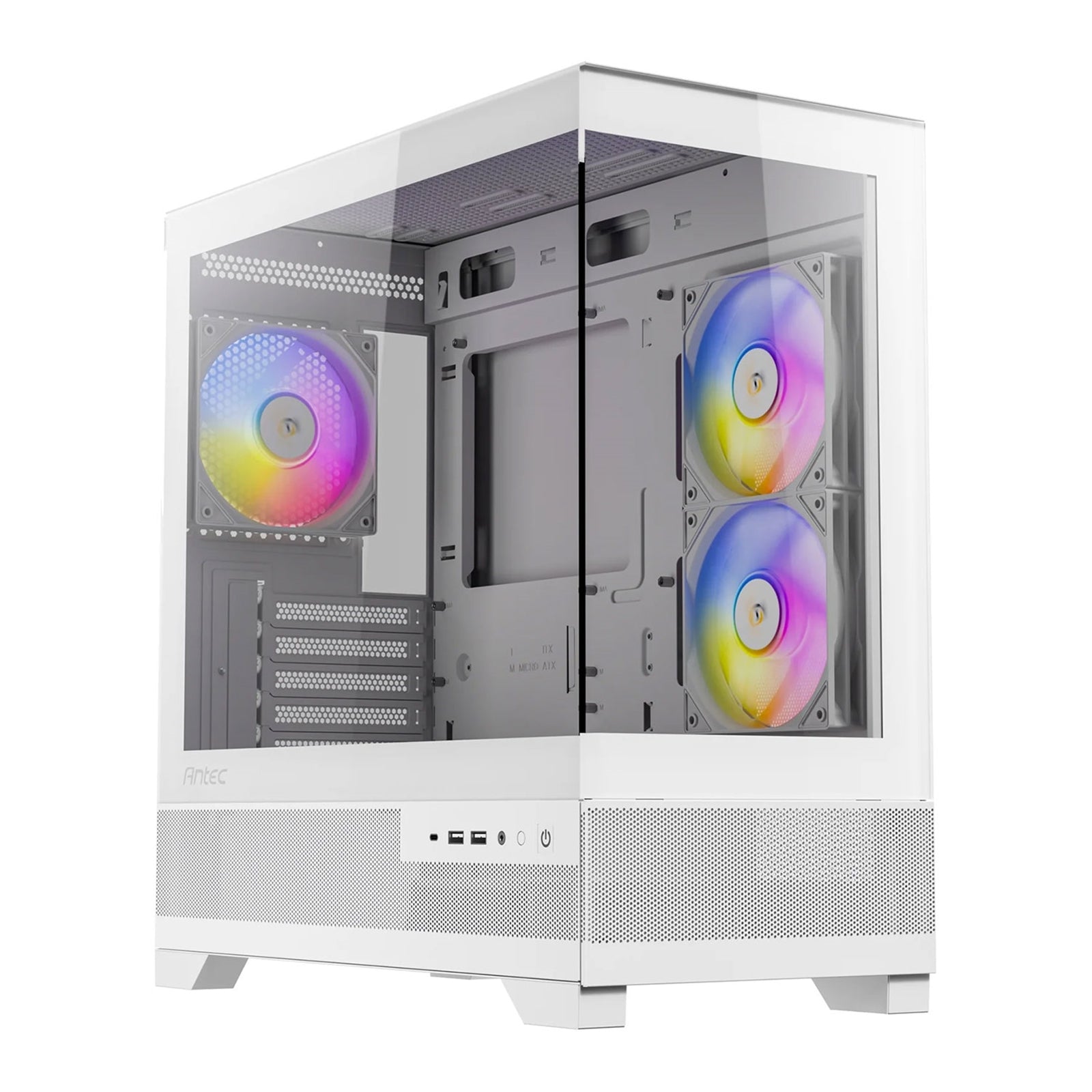

ANTEC CX500M ARGB White Micro Tower Gaming Case

The Antec CX500M ARGB delivers a premium showcase for Micro-ATX and ITX builds through its distinctive 270° panoramic viewing design. Seamless steel-tempered glass panels on the left and front sides provide an unobstructed view of your components, making this white gaming case ideal for builders who want to display their hardware.

Pre-Installed ARGB Lighting System

Three pre-installed 120mm ARGB fans come ready to synchronize, featuring two reverse fans on the right side and one rear exhaust fan. The integrated LED control button on the I/O panel allows quick customization of lighting effects without software. The vertical cooling design utilizes bottom-up airflow for efficient heat dissipation across your components.

Tool-Free Assembly and Build Flexibility

The tool-free panel design simplifies installation and reduces the risk of glass damage during assembly. With support for GPUs up to 415mm, CPU coolers up to 165mm, and radiators up to 360mm on top, the CX500M accommodates high-performance components. Five expansion slots provide room for multi-GPU configurations or additional expansion cards.

Modern Connectivity and Storage

The front I/O panel features 1x USB 3.2 Gen 2 Type-C port, 2x USB 3.0 ports, and a headphone/mic combo jack for convenient access. Storage options include 2x 3.5"/2.5" drive bays plus 1x dedicated 2.5" bay. The power supply shroud conceals cables while supporting PSUs up to 210mm with HDD installed or 270mm without.

Comprehensive Cooling Capacity

Beyond the included fans, the case supports additional cooling configurations: up to 3x 120mm or 2x 140mm fans on top, 2x 120mm on the side, and 1x 120mm at the rear. Top and bottom dust filters protect internal components from debris while maintaining airflow. The 4mm tempered glass side panel provides durability and crystal-clear visibility.

Specifications
Form Factor:
Mid-Tower

Motherboard Support:
Micro-ATX, ITX

Dimensions:
436mm (D) x 210mm (W) x 446mm (H)

Material:
Steel + Tempered Glass

Side Panel:
4mm Tempered Glass

Drive Bays:
2/1 x 3.5"/2.5"
1 x 2.5"

Expansion Slots:
5

Cooling Support:
Top:
Up to 3 x 120mm or 2 x 140mm

Side:
2 x 120mm

Rear:
1 x 120mm

Power Supply Shroud:
3 x 120mm

Radiator Support:
Up to 360mm (top)

Included Fan(s)
2 x 120mm ARGB reverse fans on right side + 1 x 120mm ARGB fan in rear

Clearance:
Max GPU Length:
415mm

Max CPU Cooler Height:
165mm

Max PSU Length:
210mm (with HDD) / 270mm (without HDD)

I/O Panel:
1 x USB 3.2 Gen 2 Type-C
2 x USB 3.0
1 x Headphone/Mic Combo Jack
1 x LED Control Button
1 x Power Button

Dust Filters:
Top and bottom

Weight:
Net: 6.34 kg
Gross: 8.2 kg

Warranty:
1 year

• Form Factor: Micro Tower
• Motherboard Support: Micro ATX
• PSU Included: None
• Case Colour: White
• LED Colour: Addressable RGB
• USB 3.0: 2
• Side Panel: Panoramic Tempered Glass
