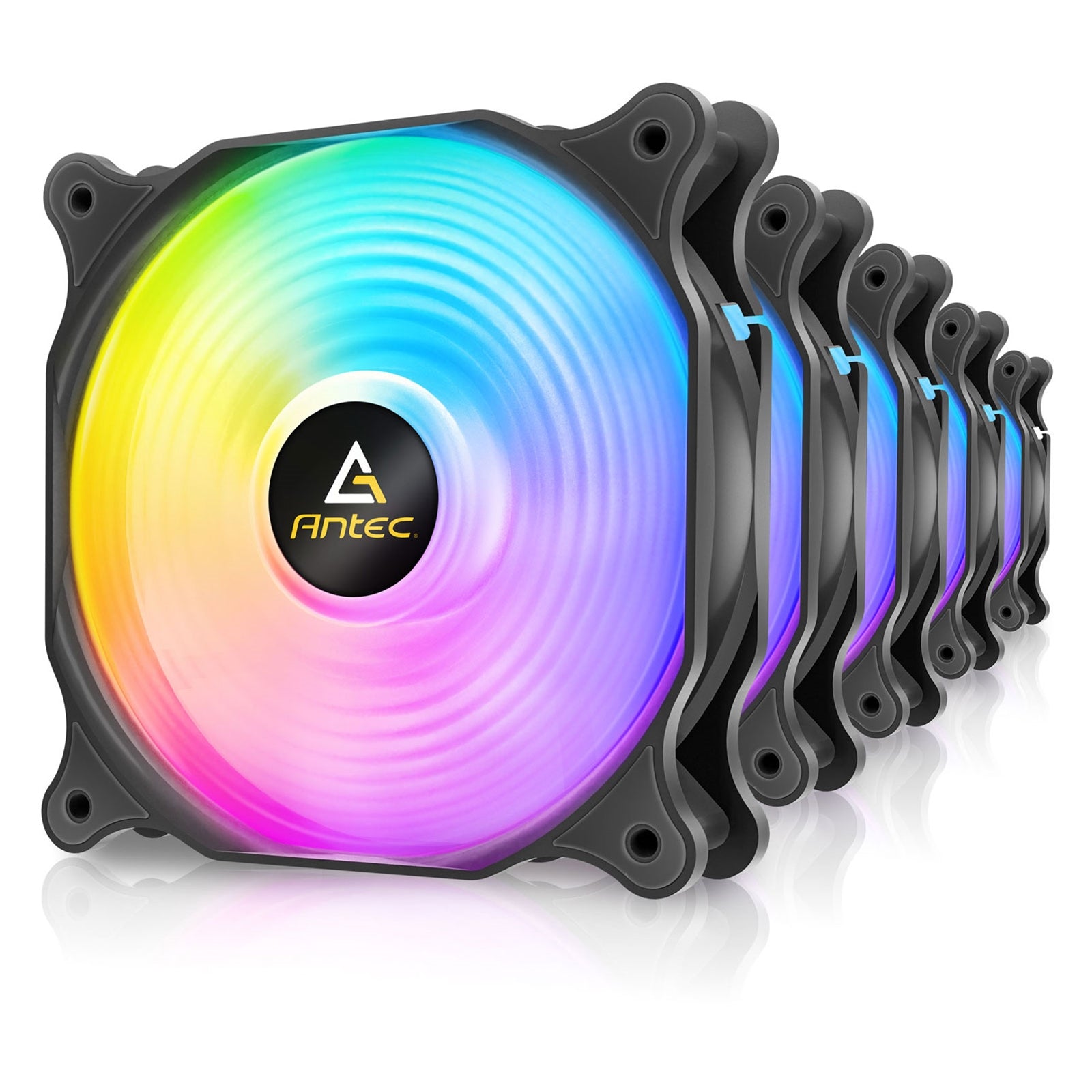

Antec F12 Racing ARGB 120mm PWM Case Fan 3-Pack

The Antec F12 Racing ARGB delivers efficient cooling performance with customizable RGB lighting in a complete 3-pack configuration. Each 120mm fan features hydraulic bearing technology rated for 40,000 hours of operation at 25°C, ensuring long-term reliability for your PC build.

Cooling Performance Specifications

Operating at speeds between 500-1500 RPM, these PWM-controlled fans generate up to 52.75 CFM airflow with 1.76 mmH2O static pressure. The seven semi-transparent blades incorporate three-dimensional grooves designed for optimal air movement while maintaining a maximum noise level of 28 dB(A). Eight integrated rubber pads reduce vibration and operational noise for quieter system performance.

ARGB Lighting System

Full-spectrum addressable RGB lighting creates a concentric circular effect during operation. The included controller provides multiple lighting modes with adjustable speed settings (Low/Mid/High). Connect via the 3-pin ARGB header for motherboard synchronization, or use the standalone controller with external LED control through your chassis reset button.

Controller Features

The included ARGB/PWM controller offers comprehensive fan and lighting management:

• PWM Port (4-pin) for fan speed control
• ARGB port (3-pin) for lighting control
• SATA power connector for DC input
• External LED connector for chassis integration
• LED speed control switch (Low/Mid/High)
• PWM LED connector for motherboard sync
• Mode button for lighting effect selection

Technical Specifications

Dimensions: 120 x 120 x 25 mm
Bearing Type: Hydraulic
Fan Speed: 500 ± 200 - 1500 ± 10% RPM
Airflow: 52.75 CFM (max.)
Air Pressure: 1.76 mmH2O (max.)
Noise Level: 28 dB(A)
Lifespan: 40,000 hours at 25°C
Connector: 4-pin PWM | 3-pin ARGB
Rated Voltage: FAN: DC 12V | LED: DC 5V
Operation Voltage: FAN: DC 6.0-13.8V | LED: DC 4.5-5.3V
Rated Current: FAN: ≤ 0.15A | LED: ≤ 0.288A
Warranty: 1 Year

Package Contents

Three F12 Racing ARGB 120mm fans, ARGB/PWM controller, and all necessary mounting hardware and cables for installation.

• Product Type: Case Fan
• Fan Size: 120mm
• Max Fan Speed: 1500RPM
• Fan Shroud Colour: Black
• LED Colour: Addressable RGB
• Connections: 4-Pin Fan & 3-Pin ARGB
