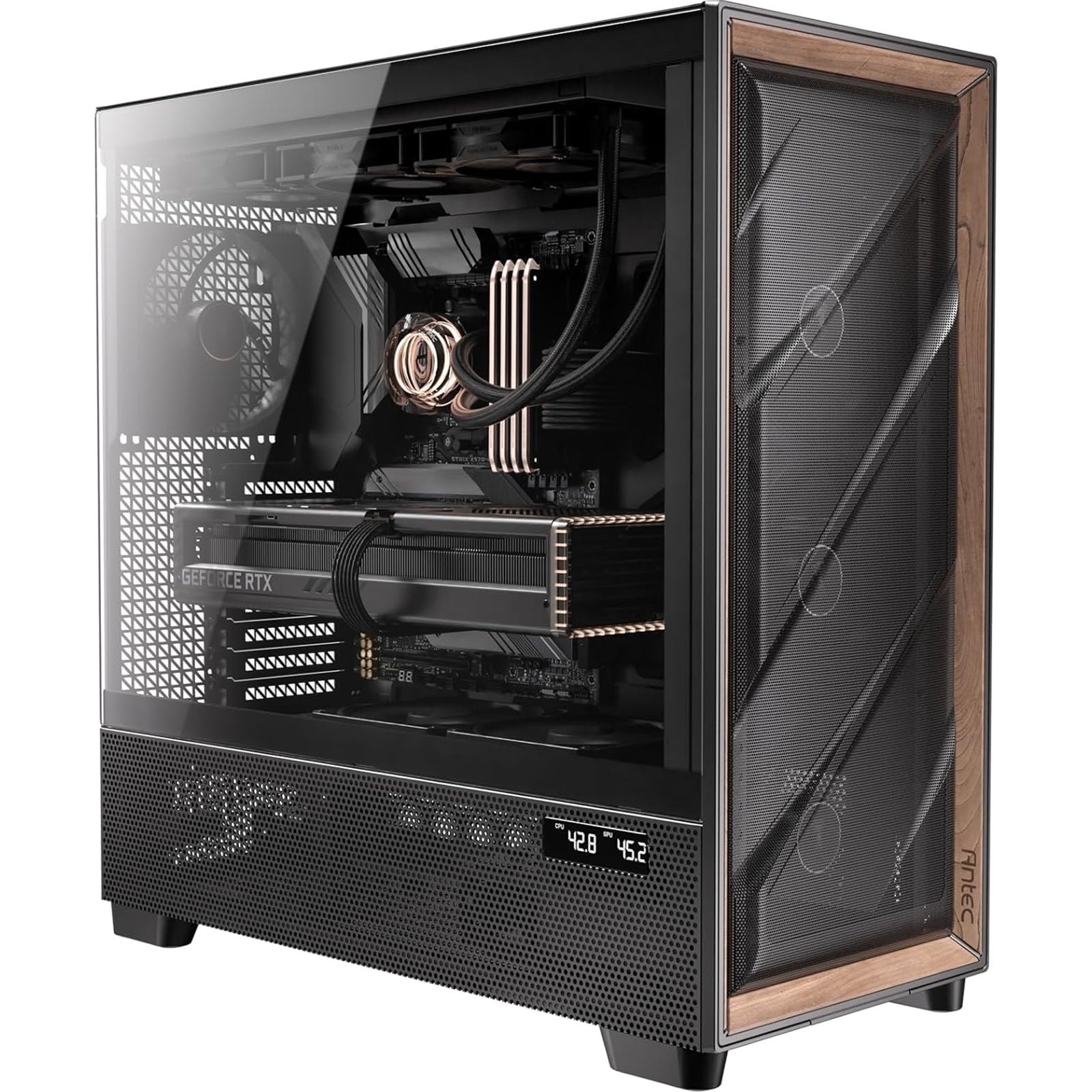

Antec Flux PRO Full Tower Case - Premium Airflow Design

The Antec FLUX PRO full tower case delivers advanced cooling performance through its F-LUX Platform (Flow Luxury) airflow architecture. This case comes equipped with six high-performance PWM fans: three 140mm Tranquil fans at the front, two 120mm P12R reverse fans on the PSU shroud, and one 140mm Tranquil fan at the rear. The multi-directional vent system includes extensive air intakes at the bottom, power supply chamber, and lower sides, working with top vents and a large-area mesh front panel to create dedicated airflow channels.

Dual Cooling Technology

Flux Vertical Cooling enhances heat dissipation through the PSU chamber, directly improving graphics card cooling efficiency. Flux Horizontal Cooling maintains a smooth venting channel throughout the case via the front mesh panel. The front panel combines metal mesh with genuine walnut wood, providing a distinctive aesthetic that integrates with modern home environments.

Hardware Monitoring and Connectivity

The integrated CPU/GPU dual temperature display offers real-time hardware monitoring with four display modes: both on, both off, CPU only, or GPU only (requires Antec iUnity software). The I/O panel includes a USB Type-C port, two USB 3.0 ports, power and reset buttons, plus a headphone/mic combo jack.

Extensive Component Compatibility

Supports E-ATX (≤285mm), ATX, Micro-ATX, and ITX motherboards with seven expansion slots. Accommodates graphics cards up to 455mm in length and CPU coolers up to 190mm in height. PSU length capacity varies: 180/300mm with HDD installed, 470mm without HDD, or 180mm for side mounting.

Flexible Cooling Configuration

Radiator support includes 120mm to 420mm options at front and top positions, 120-360mm on the PSU shroud, 120-240mm at bottom, and 120-140mm at rear. The case provides four drive bays for both 3.5" and 2.5" storage devices, with a bottom-mounted dust filter for maintenance.

Specifications:
Form Factor:
Mid Tower

Materials:
Steel, Plastic, Walnut Wood

Mainboard Support:
E-ATX (=285mm), ATX, Micro-ATX, ITX

I/O Panel:
Power, Reset, 2 x USB 3.0, 1 x USB Type-C, Headphone/Mic Combo Jack

Side Panel:
Tempered Glass

Drive Bays:
3.5" / 2.5": 4 / 4

Expansion Slots:
7

Fan Support:
Front: 3 x 120mm / 3 x 140mm
Top: 3 x 120mm / 3 x 140mm
Power Supply Shroud: 2 x 120mm / 2 x 140mm
Rear: 1 x 120mm / 1 x 140mm

Included Fans:
3 x 140mm Tranquil PWM fans in front, 2 x 120mm P12R PWM fans on PSU shroud, 1 x 140mm Tranquil PWM fan in rear

Radiator Support:
Front: 120 / 140 / 240 / 280 / 360 / 420mm
Top: 120 / 140 / 240 / 280 / 360 / 420mm
Power Supply Shroud: 120 / 240 / 360mm
Bottom: 120 / 240mm
Rear: 120 / 140mm

Clearance:
Max GPU Length: = 455mm
Max CPU Cooler Height: = 190mm
Max PSU Length (including cables): = 180 / 300mm (with HDD), = 470mm (without HDD), = 180mm (side mount)

CPU/GPU Dual Temperature Display
Intuitive hardware temperature display design with 4 different modes:
GPU & CPU On
GPU & CPU Off
Only CPU On
Only GPU On
*Antec iUnity software must be installed

Dust Filter:
Bottom

Weight:
Net: 13.60 kg, Gross: 16.65 kg

Dimensions (D x W x H):
530 x 245 x 545 mm

• Form Factor: Full Tower
• Motherboard Support: E-ATX
• PSU Included: None
• Case Colour: Black
• LED Colour: None
• USB 3.0: 2
• Side Panel: Tempered Glass
