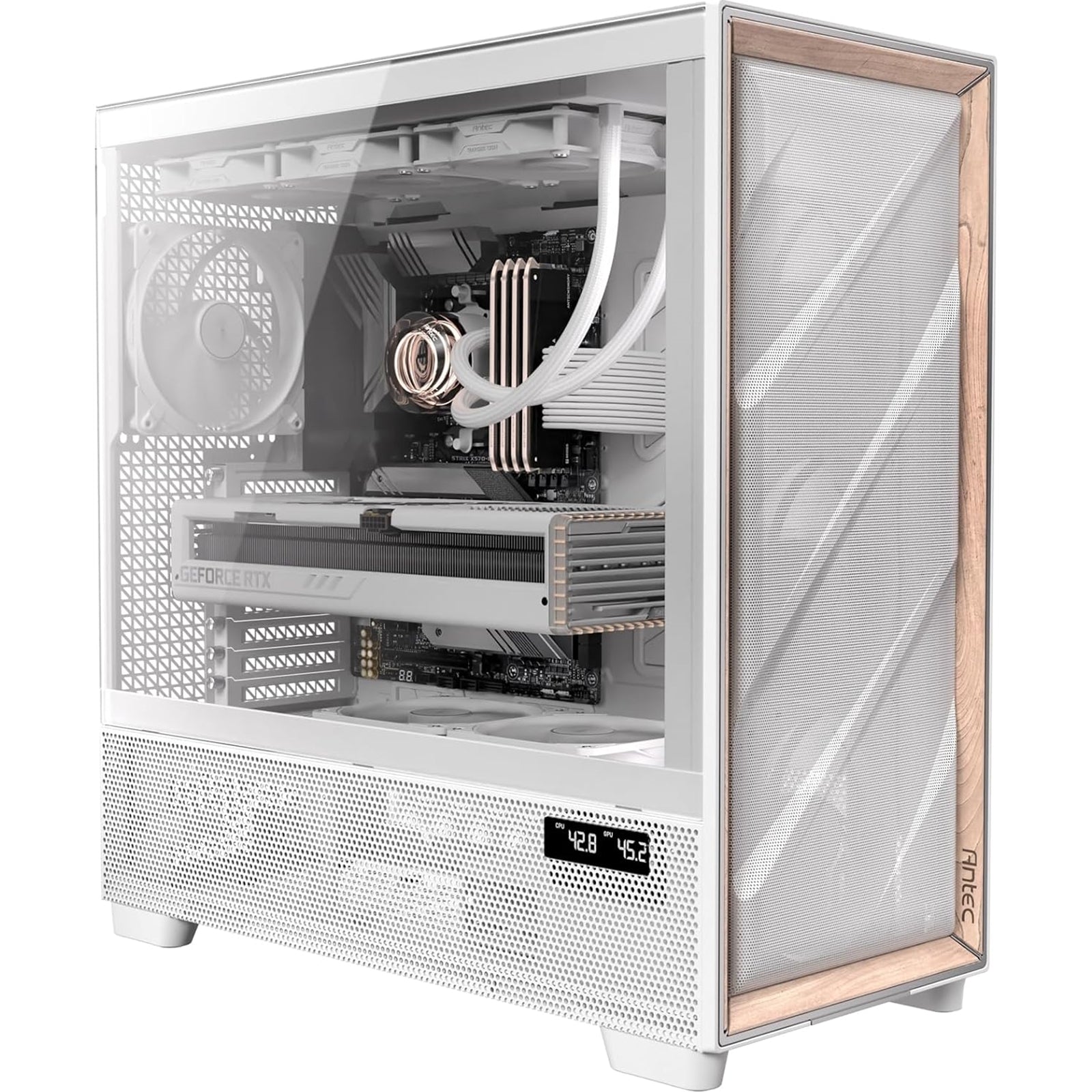

Antec Flux PRO Full Tower Case - Premium White & Walnut Design

The Antec FLUX PRO White full tower case combines advanced thermal performance with premium aesthetics. Built on Antec's F-LUX Platform (Flow Luxury), this case delivers superior airflow through six pre-installed PWM fans and multi-directional ventilation designed specifically for GPU cooling optimization.

Advanced Cooling Architecture

The Flux PRO features dual cooling pathways: Flux Vertical Cooling channels air through the PSU chamber to target graphics card heat dissipation, while Flux Horizontal Cooling maintains smooth airflow throughout the chassis via the large-area mesh front panel. Air intakes positioned at the bottom, power supply chamber, and lower sides work with top vents to create dedicated airflow channels that keep components running cool under load.

Premium Materials & Design

The front panel combines metal mesh with genuine walnut wood accents, creating a distinctive appearance that integrates into home environments. The tempered glass side panel provides clear visibility of internal components while maintaining structural integrity. Steel construction ensures durability and proper component support.

Comprehensive Hardware Compatibility

Supports E-ATX (≤285mm), ATX, Micro-ATX, and ITX motherboards with clearance for GPUs up to 455mm, CPU coolers up to 190mm, and PSUs up to 470mm (without HDD). Seven expansion slots accommodate multi-GPU configurations and additional expansion cards.

Extensive Cooling Options

Includes 3x 140mm Tranquil PWM fans (front), 2x 120mm P12R PWM reverse fans (PSU shroud), and 1x 140mm Tranquil PWM fan (rear). Supports radiators up to 420mm in front and top positions, with additional mounting options on the PSU shroud, bottom, and rear for comprehensive liquid cooling configurations.

Modern I/O & Temperature Monitoring

Front panel features USB Type-C, 2x USB 3.0 ports, and headphone/mic combo jack. The integrated CPU/GPU dual temperature display offers four viewing modes (both on, both off, CPU only, GPU only) when paired with Antec iUnity software, providing real-time thermal monitoring without additional hardware.

Storage & Cable Management

Accommodates 4x 3.5" drives and 4x 2.5" drives for flexible storage configurations. The power supply shroud conceals cables and improves internal aesthetics while housing additional cooling fans. Bottom-mounted dust filter protects components from debris accumulation.

Specifications:
Form Factor:
Mid Tower

Materials:
Steel, Plastic, Walnut Wood

Mainboard Support:
E-ATX (=285mm), ATX, Micro-ATX, ITX

I/O Panel:
Power, Reset, 2 x USB 3.0, 1 x USB Type-C, Headphone/Mic Combo Jack

Side Panel:
Tempered Glass

Drive Bays:
3.5" / 2.5": 4 / 4

Expansion Slots:
7

Fan Support:
Front: 3 x 120mm / 3 x 140mm
Top: 3 x 120mm / 3 x 140mm
Power Supply Shroud: 2 x 120mm / 2 x 140mm
Rear: 1 x 120mm / 1 x 140mm

Included Fans:
3 x 140mm Tranquil PWM fans in front, 2 x 120mm P12R PWM reverse fans on PSU shroud, 1 x 140mm Tranquil PWM fan in rear

Radiator Support:
Front: 120 / 140 / 240 / 280 / 360 / 420mm
Top: 120 / 140 / 240 / 280 / 360 / 420mm
Power Supply Shroud: 120 / 240 / 360mm
Bottom: 120 / 240mm
Rear: 120 / 140mm

Clearance:
Max GPU Length: = 455mm
Max CPU Cooler Height: = 190mm
Max PSU Length (including cables): = 180 / 300mm (with HDD), = 470mm (without HDD), = 180mm (side mount)

CPU/GPU Dual Temperature Display
Intuitive hardware temperature display design with 4 different modes:
GPU & CPU On
GPU & CPU Off
Only CPU On
Only GPU On
*Antec iUnity software must be installed

Dust Filter:
Bottom

Weight:
Net: 13.60 kg, Gross: 16.65 kg

Dimensions (D x W x H):
530 x 245 x 545 mm

• Form Factor: Full Tower
• Motherboard Support: E-ATX
• PSU Included: None
• Case Colour: White
• LED Colour: None
• USB 3.0: 2
• Side Panel: Tempered Glass
