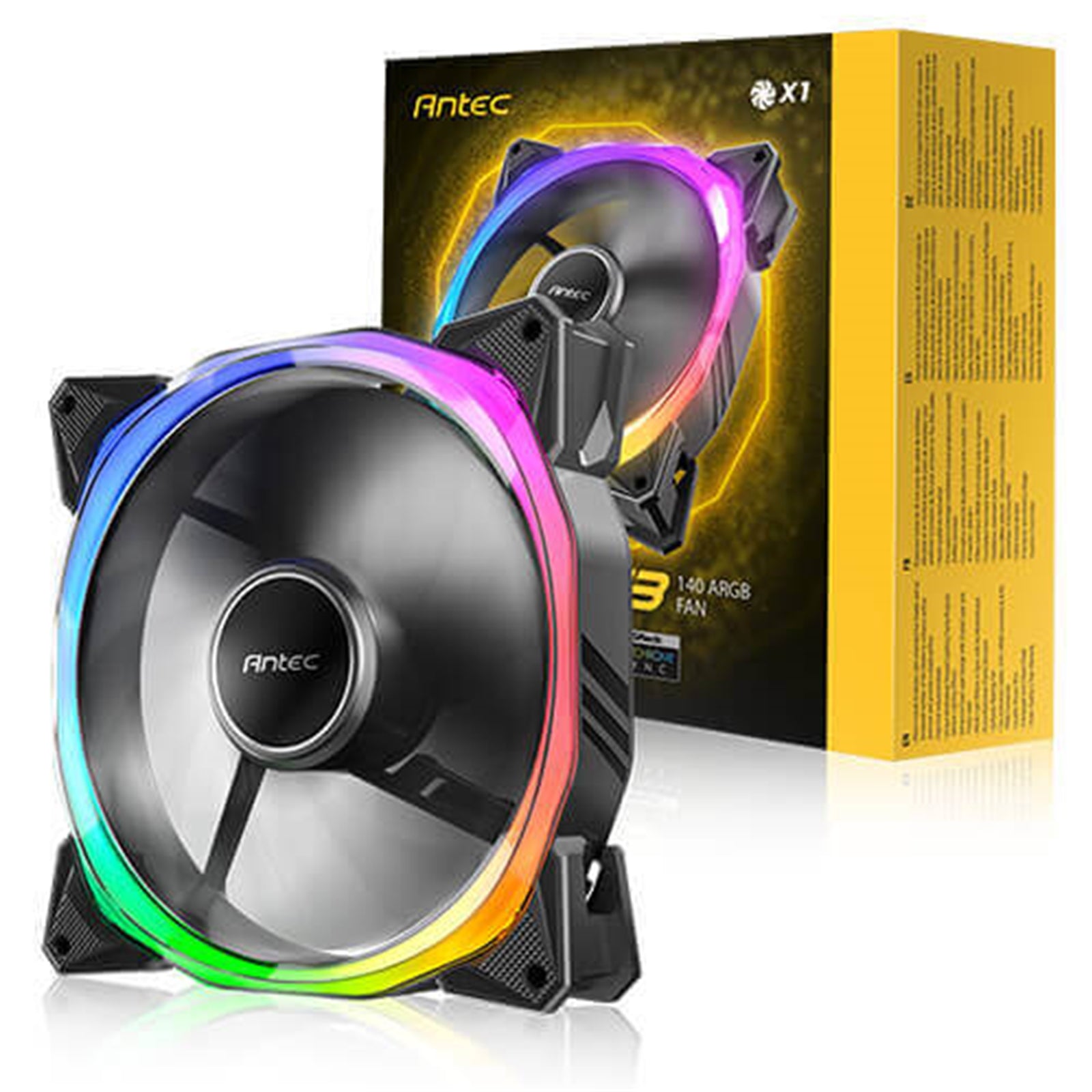

Antec Fusion T3 140mm ARGB PWM Case Fan

The Antec Fusion T3 140 ARGB case fan delivers superior cooling performance with its 30mm thickness design. Extended fan blades combined with an increased blade count enhance airflow pressure while maintaining stable, consistent airflow throughout your PC case.

Dual-Layer Dodecagon Lighting Design

This 140mm case fan features a unique dual-layer dodecagon-shaped lighting ring equipped with 16 LEDs. The advanced crystal and frosty layer design projects vibrant lighting effects from multiple angles, creating dynamic visual appeal. The ARGB lighting connects via standard 3-pin connector for compatibility with motherboard RGB ecosystems.

Hydraulic Bearing Technology

The hydraulic bearing system ensures quiet operation and exceptional longevity. With a rated lifespan of 40,000 hours at 25°C, this PWM fan operates between 600-1500 RPM with noise levels ranging from 11.17 to 33.57 dB(A). The variable speed control allows precise cooling adjustment based on system demands.

Performance Specifications

This 140mm PWM fan delivers maximum airflow of 80.5 CFM with air pressure reaching 1.63 mmH2O. The 30mm thickness provides enhanced cooling capacity compared to standard 25mm fans. Eight enlarged anti-vibration pads effectively reduce vibration transfer and minimize operational noise.

Technical Details

The fan operates on DC 12V (4-pin connector) while the LED system uses DC 5V (3-pin connector). Rated current is 0.26A for the fan and 0.72A for the LED. The black fan shroud and frame construction deliver both aesthetic appeal and functional durability. Dimensions measure 140 x 140 x 30mm.

Installation and Compatibility

Standard 140mm mounting ensures compatibility with most PC cases supporting 140mm fan slots. The 4-pin PWM connector allows motherboard-controlled fan speed adjustment, while the 3-pin ARGB connector integrates with popular RGB control software. The fan includes a 2-year warranty.

Fusion T3 140 ARGB PWM FAN

30MM THICKNESS FOR SUPREME PERFORMANCE
30mm overall thickness with extended fan blades and an increased number of fan blades to enhance airflow pressure and provide a stable airflow.

CREATE YOUR CHARISMA
The brand-new Fusion T3 140 ARGB case fan features a unique dual-layer dodecagon-shaped lighting ring & hydraulic bearing, bringing to you an unforgettable experience both visually and functionally.

UNIQUE MULTILATERAL SHAPED LIGHTING FRAME PROJECTS VARIOUS LIGHTING EFFECTS
The vibrant dodecagon-shaped lighting ring with 16 LEDs projects various lighting effects from many angles.
Advance Dual-Layer Design with Crystal Layer and Frosty Layer

EXOTIC TEXTURE
The well-processed fan structure and the utmost craftsmanship bring the fan quality to the next level.

ENLARGED VIBRATION-ABSORBING & ANTI-NOISE PADS
8 anti-vibration pads effectively reduce vibration and noise.

Specifications

Model Name
Fusion T3 140 ARGB

Fan Type
ARGB PWM Fan

Dimensions
140 x 140 x 30 mm

Bearing Type
Hydro Bearing

Fan Speed
600±200-1500±10%RPM

Airflow
31.02~80.5 CFM (max.)

Air Pressure
0.26~1.63 mmH2O(max.)

Fan Noise Level
11.17~33.57 dB(A)

Lifespan
40,000 hours / 25?

Connector
FAN: 4-pin | LED: 3-pin

Rated Voltage
FAN: DC 12 V | LED: DC 5 V

Operation Voltage
FAN: DC 6.0-13.8 V | LED: DC 4.5-5.3 V

Rated Current
FAN: 0.26 A | LED: 0.72 A

Warranty
2 Years

• Product Type: Case Fan
• Fan Size: 140mm
• Max Fan Speed: 1500RPM
• Fan Shroud Colour: Black
• LED Colour: Addressable RGB
• Connections: 4-Pin Fan & 3-Pin ARGB
