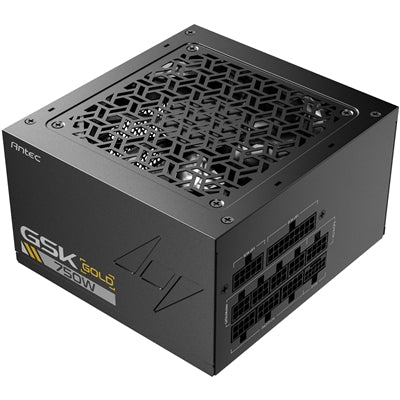

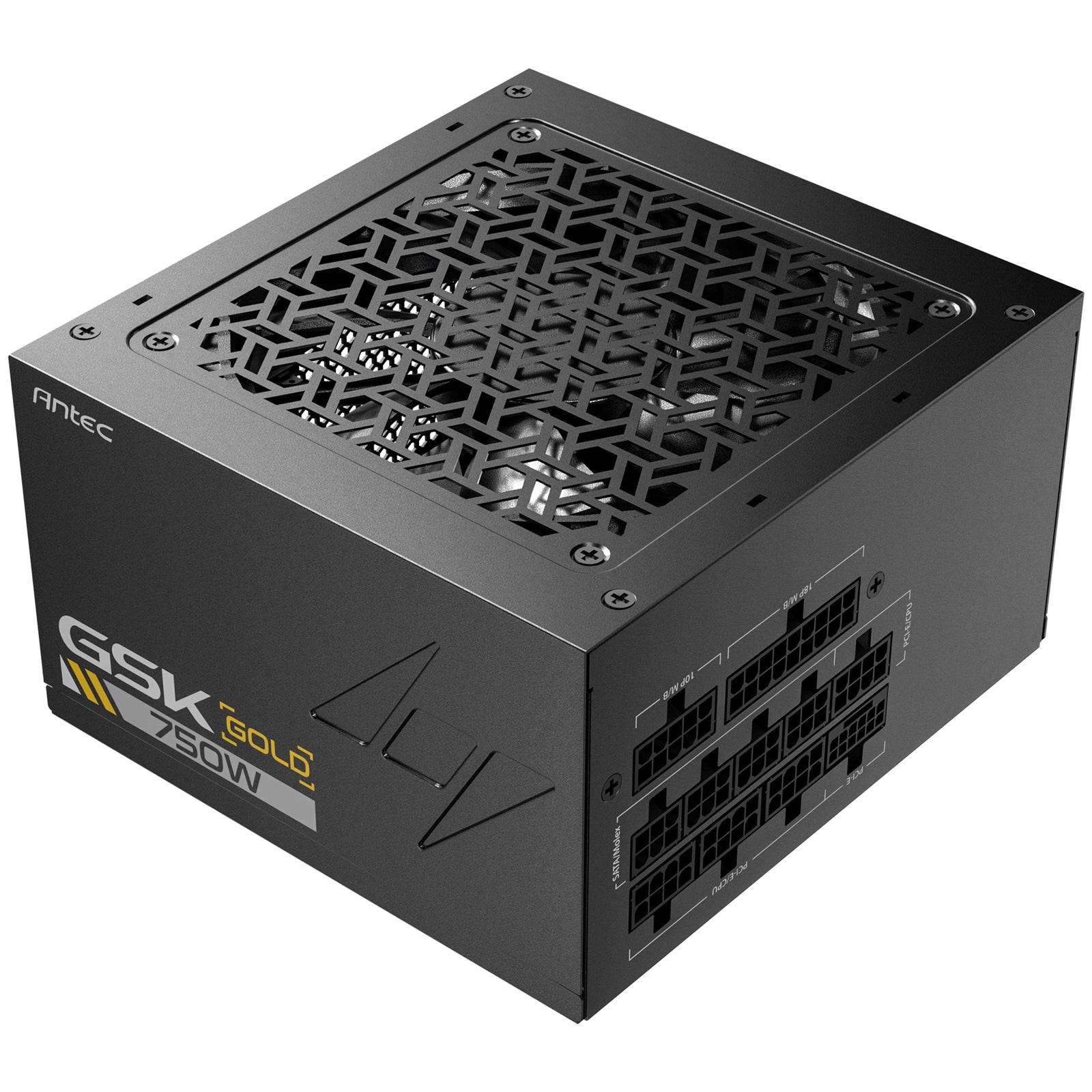

Antec GSK 750W V2 ATX 3.1 Power Supply

The Antec GSK 750 V2 delivers 750W of continuous power with 80 PLUS Gold certification, designed for gaming and high-performance PC builds. This fully modular power supply supports ATX 3.1 and PCIe 5.1 standards, ensuring compatibility with next-generation graphics cards and processors.

Advanced Power Delivery

Built with PhaseWave™ technology, the GSK 750 V2 utilizes server-class LLC design with synchronous rectification for efficient and stable power delivery. The unit operates on universal input voltage (100-240V AC) and features Japanese capacitors for enhanced reliability and longevity.

Quiet Operation

The 120mm silent fan includes Zero RPM mode, which stops the fan entirely during low load conditions. This feature reduces noise levels significantly during everyday computing tasks, only engaging when thermal demands increase during gaming or intensive workloads.

Comprehensive Protection

CircuitShield™ protection suite safeguards your components with eight layers of protection: OCP (over current), OVP (over voltage), UVP (under voltage), SCP (short circuit), OPP (over power), OTP (over temperature), SIP (surge & inrush), and NLO (no-load operation) protection.

Full Modular Design

Every cable detaches from the power supply, allowing you to connect only what your system requires. This reduces cable clutter inside your case and improves airflow, contributing to better overall system cooling and a cleaner build aesthetic.

Next-Gen Connectivity

The connector layout includes one 24-pin motherboard connector, one 16-pin PCIe 5.1 12V-2×6 connector for the latest graphics cards, two 8-pin CPU connectors, four 8-pin PCIe connectors, eight SATA connectors, and four Molex connectors. This configuration supports multi-GPU setups and extensive storage arrays.

Compact Dimensions

Measuring 140mm × 150mm × 86mm, the GSK 750 V2 fits standard ATX cases while maintaining a compact footprint. The black finish complements modern PC builds.

Specifications
Product
Antec GSK 750 V2
MPN / Model Code
0-761345-20140-7 (GB / UK version)

Form Factor / Standard
ATX 12V 3.1

Wattage (Continuous)
750 W

Modularity
Fully modular

Efficiency / Certification
80 PLUS® Gold certified

Input Voltage Range
100 V – 240 V AC (universal)

Input Frequency
50 – 60 Hz (typical for worldwide)

Input Current
Up to 10 A (max)

Fan
120 mm "Silent" fan with Zero RPM mode (i.e. fan may shut off at low load)

Protection / Safety Features
CircuitShield™ suite: OCP, OVP, UVP, SCP, OPP, OTP, SIP, NLO

Connectors
1 × 24 (20 + 4) pin motherboard connector
1 × 16 (12 + 4) pin PCIe 5.1 12V-2×6 connector
2 × 8 (4 + 4) pin CPU (EPS) connectors
4 × 8 (6 + 2) pin PCI-Express connectors
8 × SATA power connectors
4 × Molex (4-pin peripheral) connectors

Dimensions (L × W × H)
140 mm × 150 mm × 86 mm

Warranty
10 years

Additional Features
PhaseWave™ design for stable output
Zero RPM mode for quiet operation
Full modular cabling for customization & airflow
Meets modern GPU / CPU power demands with support for PCIe 5.1

• Wattage: 750W
• Size/Version: ATX 3.1
• Modular: Fully
• SATA Connections: 8
• Certification: Gold
• Colour: Black
