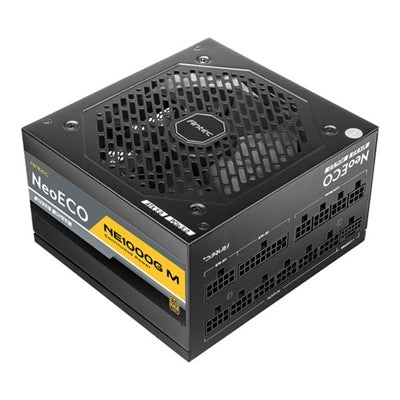

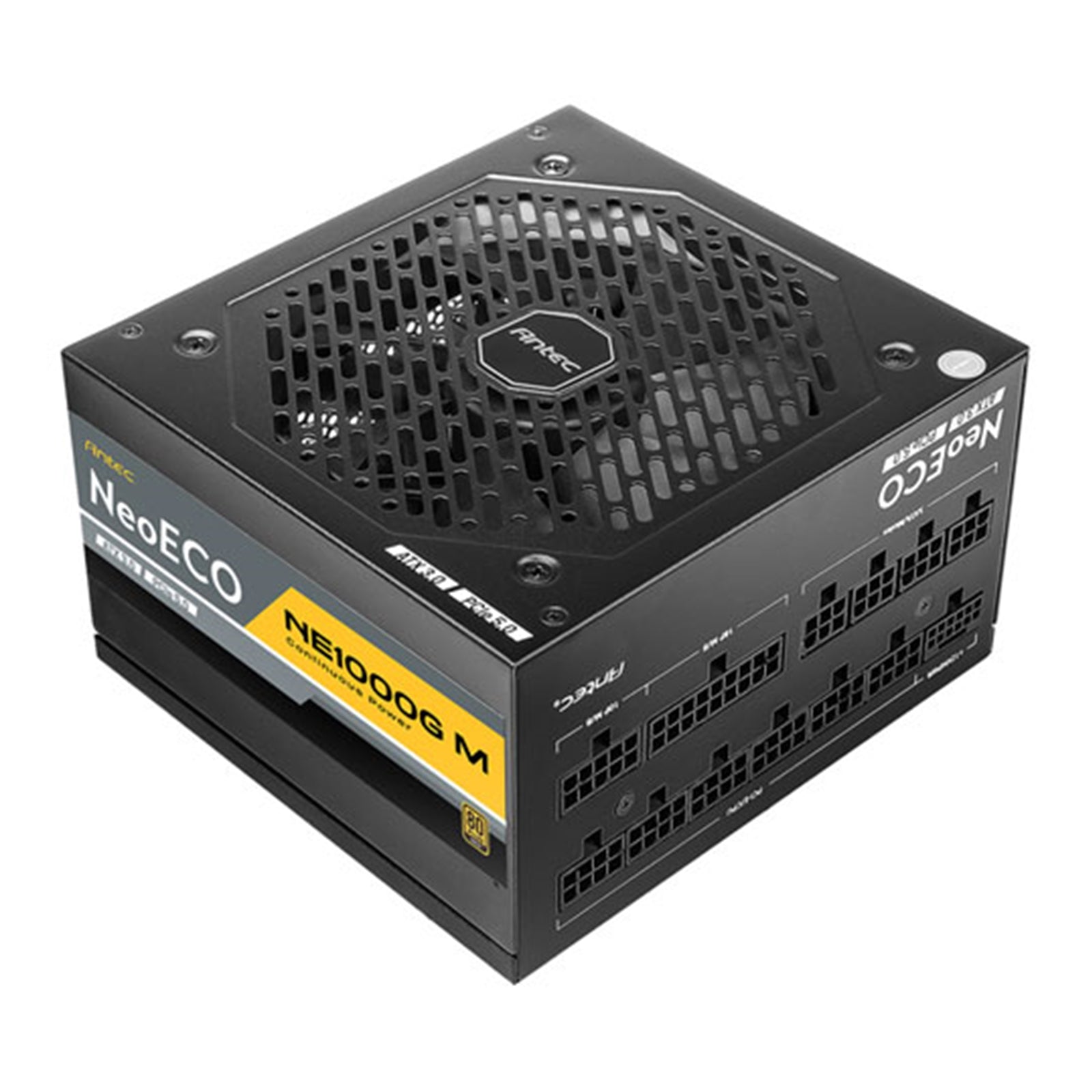

Antec NE1000G M 1000W ATX 3.0 Power Supply

The Antec NE1000G M delivers 1000W of reliable power for high-performance gaming systems and professional workstations. This ATX 3.0 compliant power supply features full modular cabling, 80 PLUS Gold certification, and native PCIe 5.0 support for next-generation graphics cards including NVIDIA GeForce RTX 40 Series.

ATX 3.0 and PCIe 5.0 Compatibility

Formally certified for ATX 3.0 compliance, the NE1000G M meets modern power delivery standards for reliability and efficiency. The included PCIe 5.0 12VHPWR GPU cable provides seamless compatibility with the latest high-power graphics cards, delivering stable power through a single rail design rated at 83A on the +12V line.

PhaseWave Design and High-Quality Components

Built with server-class LLC design featuring synchronous rectification and DC-DC topology, the PhaseWave technology ensures consistent power delivery efficiency and stability. High-quality Japanese capacitors provide tight voltage regulation with minimal ripple and noise, maximizing system performance and component longevity.

Fully Modular Cable Management

The 100% modular design allows you to connect only the cables you need, eliminating cable clutter and improving airflow within your chassis. The comprehensive connector layout includes 1x 16-pin PCIe, 2x 4+4-pin ATX 12V, 4x 6+2-pin PCIe, 12x SATA, and 4x 4-pin Molex connections.

Silent and Efficient Cooling

A 120mm FDB (Fluid Dynamic Bearing) silence fan provides quiet cooling performance. The Zero RPM Manager enables advanced thermal control, keeping the fan off during low-load operation for silent computing and ramping up only when needed for optimal temperature management.

CircuitShield Protection Suite

Industrial-grade protections safeguard your components against over-voltage, under-voltage, over-power, over-current, over-temperature, and short-circuit conditions. This comprehensive protection suite ensures safe and reliable operation in demanding environments.

Technical Specifications

Form Factor: ATX 3.0
Wattage: 1000W
Efficiency: 80 PLUS Gold Certified
+12V Rail: Single Rail, 83A
Cooling: 120mm FDB Fan
Modularity: Fully Modular
Dimensions: 150 x 86 x 140mm (WxHxD)
Warranty: 10 Years

The Antec NE1000G M is backed by a 10-year warranty, demonstrating Antec's confidence in the build quality and reliability of this power supply for demanding gaming and professional applications.
