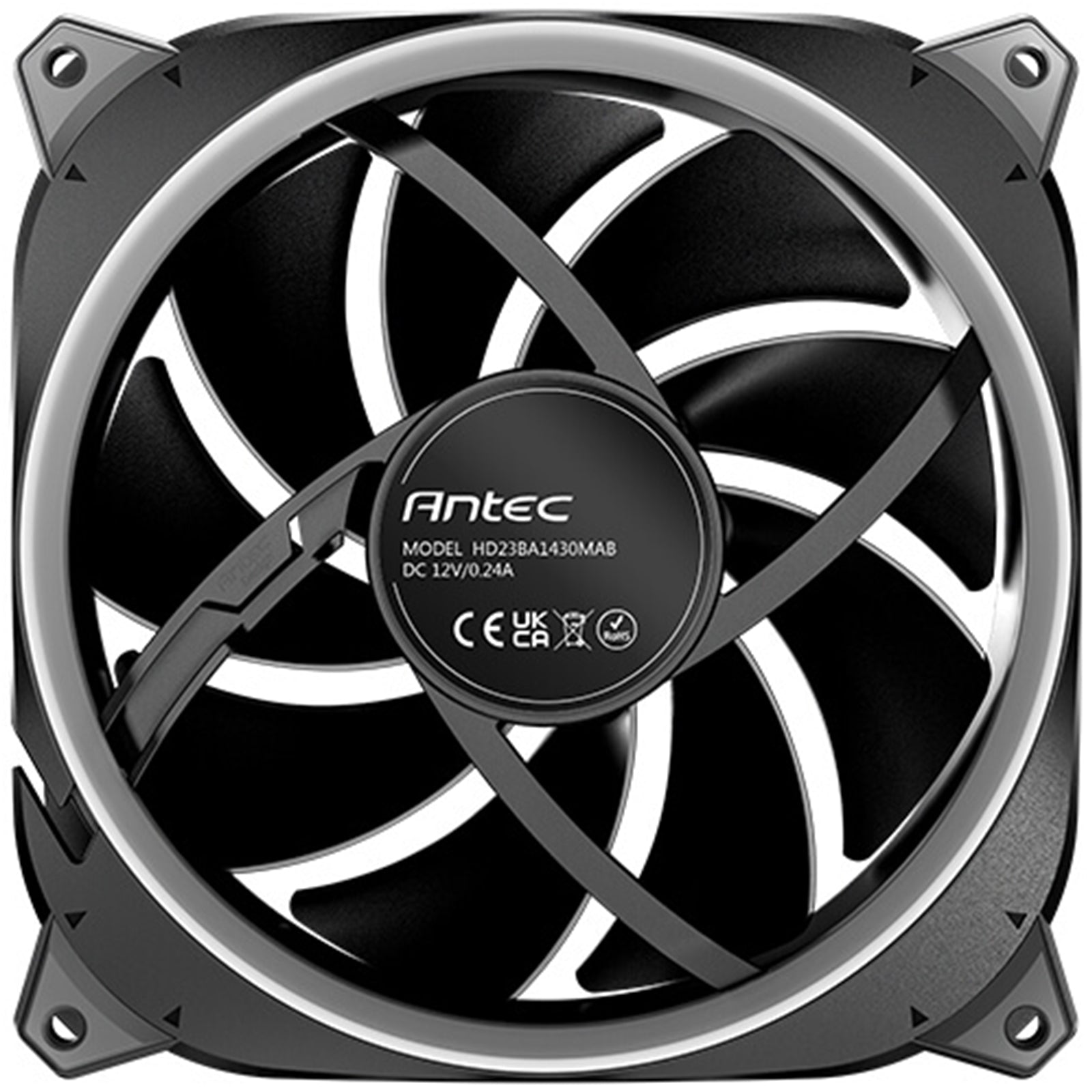

Antec Neo Prizm T3 140 ARGB PWM Case Fan

The Antec Neo Prizm T3 140 ARGB PWM fan delivers performance cooling with addressable RGB lighting for gaming and enthusiast PC builds. This 140mm case fan features a 30mm thick profile designed to maximize airflow efficiency and cooling performance.

Dual ARGB Lighting Rings

The dual lighting rings contain multiple individual LEDs, presenting lighting effects on both the front and back sides. Connect to your motherboard's 3-pin ARGB header for synchronized lighting control and customization.

Enhanced Cooling Performance

The 30mm thickness increases the contact surface and air inlet area between the fan and chassis, delivering improved airflow compared to standard 25mm fans. With a maximum airflow of 80.52 CFM and air pressure of 1.59 mmH2O, this fan provides effective cooling for cases and radiators.

Optimized Fan Blade Design

Nine long fan blades enhance air pressure while maintaining stable airflow. The PWM control allows variable speed operation from 600 to 1500 RPM, automatically adjusting performance based on system temperatures while keeping noise levels between 10.52 and 30.4 dB(A).

Quiet Operation with Hydro Bearing

The hydro bearing technology ensures smooth, quiet operation with an exceptional lifespan of 40,000 hours at 25°C. Eight anti-vibration rubber pads effectively reduce vibration transfer and operational noise, making this fan suitable for quiet computing environments.

Technical Specifications

• Dimensions: 140 x 140 x 30 mm
• Bearing Type: Hydro Bearing
• Fan Speed: 600±200-1500±10% RPM
• Airflow: 31.19 CFM (min) ~ 80.52 CFM (max)
• Air Pressure: 0.29 mmH2O (min) ~ 1.59 mmH2O (max)
• Noise Level: 10.52~30.4 dB(A)
• Lifespan: 40,000 hours at 25°C
• Connectors: 4-pin PWM (fan) | 3-pin ARGB (LED)
• Voltage: DC 12V (fan) | DC 5V (LED)
• Current: 0.28A (fan) | 0.72A (LED)
• Warranty: 2 Years

Key Features

• Product Type: Case Fan
• Fan Size: 140mm
• Max Fan Speed: 1500RPM
• Fan Shroud Colour: Black
• LED Colour: Addressable RGB
• Connections: 4-Pin Fan & 3-Pin ARGB
