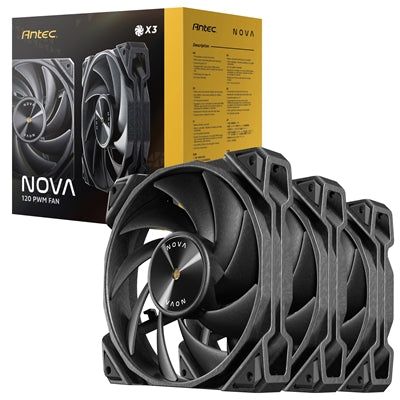

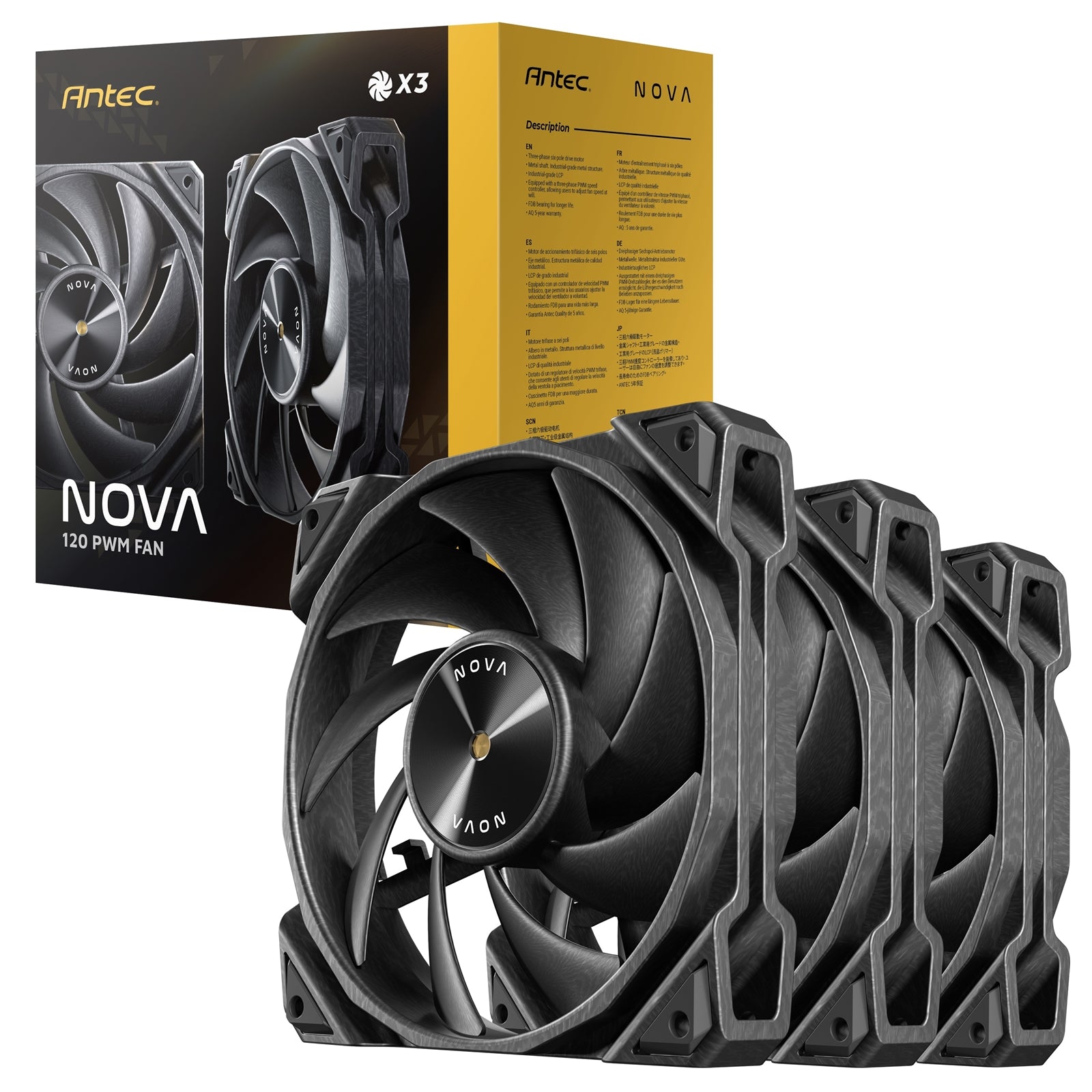

Antec NOVA 120mm PWM Fan 3-Pack

The Antec NOVA 120 PWM Fan 3-Pack delivers precision cooling control with three-phase PWM speed regulation across three distinct performance modes. Built with industrial-grade metal construction and neodymium magnets, these 120mm fans provide reliable airflow for PC builds, gaming systems, and case ventilation.

Fluid Dynamic Bearing Technology

Each fan utilizes FDB (Fluid Dynamic Bearing) technology for smooth, quiet operation and extended durability. The bearing system supports a 50,000-hour lifespan at 40°C, backed by a 5-year warranty. The dustproof design protects internal components from particle buildup, maintaining consistent performance over time.

Three-Phase Speed Control

The 4-pin PWM connector enables precise speed adjustment across three performance profiles. Low mode operates at 300-1500 RPM with 44 CFM airflow at 21.5 dB(A). Medium mode delivers 70.59 CFM at 350-2400 RPM with 30.8 dB(A) noise output. High mode reaches 95.32 CFM at 400-3200 RPM, generating 38.7 dB(A) while maintaining 6.56 mmH2O static pressure for demanding cooling requirements.

Technical Specifications

Each 120 x 120 x 25mm fan operates on DC 12V with a voltage range of 6.0-13.2V and maximum current draw of 0.35A. The industrial-grade metal frame construction ensures structural stability during high-RPM operation, while the neodymium magnet motor provides consistent torque across all speed ranges.

Full Specification

Fan Model Name:
NOVA 12025

Fan Type:
PWM Fan

Dimensions:
120 x 120 x 25 mm

Bearing Type:
FDB (Fluid Dynamic Bearing)

Fan Speed:
Low: 300~1500±10% RPM
Medium: 350~2400±10% RPM
High: 400~3200±10% RPM

Airflow:
Low: 44 CFM
Medium: 70.59 CFM
High: 95.32 CFM

Air Pressure:
Low: 1.48 mmH2O
Medium: 3.72 mmH2O
High: 6.56 mmH2O

Fan Noise Level:
Low: 21.5 dB(A)
Medium: 30.8 dB(A)
High: 38.7 dB(A)

Lifespan:
50,000 hours at 40°C

Connector:
4-pin PWM

Rated Voltage:
DC 12 V

Operation Voltage:
DC 6.0-13.2 V

Rated Current:
0.35A (MAX)

Warranty:
5 years

UPC:
0-761345-40051-0

• Product Type: Case Fan
• Fan Size: 120mm
• Max Fan Speed: 3200RPM
• Fan Shroud Colour: Black
• LED Colour: None
• Connections: 4-Pin Fan
