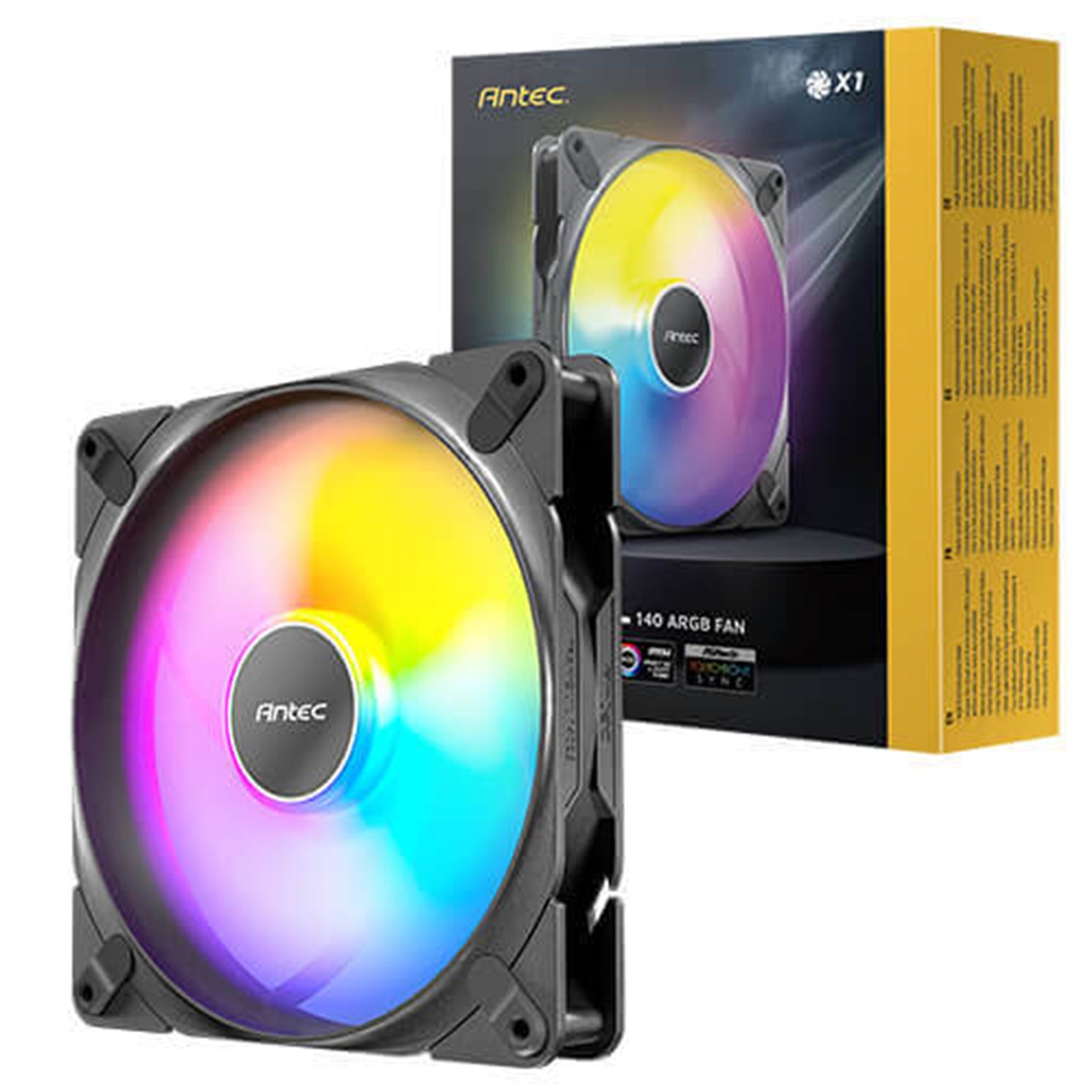

Antec Tranquil 140 ARGB PWM Case Fan

The Antec Tranquil 140 ARGB delivers efficient airflow with minimal noise, designed for PC builders who demand both performance and quiet operation. This 140mm case fan combines advanced engineering with addressable RGB lighting to enhance your system's cooling and aesthetics.

Quiet Performance Engineering

The unique fan blade and frame design generates powerful airflow while maintaining low noise levels. With minimal clearance between the fan frame and blades, the Tranquil 140 achieves maximum operational efficiency. The precision engineering delivers 22.18 to 89.72 CFM airflow with noise levels between 18.6 and 27.5 dB(A), making it suitable for both high-performance builds and quiet workstations.

Fluid Dynamic Bearing Technology

The fluid dynamic bearing (FDB) reduces friction between the shaft and bearing, extending the fan's operational lifespan to 50,000 hours at 25°C while minimizing operational noise. This bearing type provides superior durability compared to standard sleeve bearings, ensuring consistent performance over years of continuous use.

Vibration Dampening System

Eight anti-noise damping feet prevent resonance between the fan and case, effectively reducing vibration-induced noise. These vibration-absorbing pads ensure the fan operates smoothly even at maximum 1500 RPM speeds, maintaining quiet operation across the entire PWM speed range of 450-1500 RPM.

Addressable RGB Lighting

The integrated ARGB lighting connects via standard 3-pin addressable RGB headers, allowing synchronization with motherboard RGB ecosystems. Customize lighting effects to match your build aesthetic while the fan maintains optimal cooling performance.

Technical Specifications

Model Name
Tranquil 140 ARGB

Fan Type
ARGB Fan

Dimensions
140 x 140 x 25 mm

Bearing Type
FDB

LED Type
Addressable RGB

Fan Speed
450±100~1500±150 RPM

Airflow
22.18~89.72 CFM

Air Pressure
0.14~1.82 mmH2O

Fan Noise Level
18.6~27.5 dB(A)

Lifespan
50,000 hours / 25°C

Connector
FAN: 4-pin PWM | LED: 3-pin

Rated Voltage
FAN: DC 12 V | LED: DC 5 V

Operation Voltage
DC 7-13.8 V

Rated Current
FAN: 0.12 (MAX:0.18) A | LED: 0.30A(MAX)

Warranty
2 Years

• Product Type: Case Fan
• Fan Size: 140mm
• Max Fan Speed: 1500RPM
• Fan Shroud Colour: Black
• LED Colour: Addressable RGB
• Connections: 4-Pin Fan & 3-Pin ARGB
