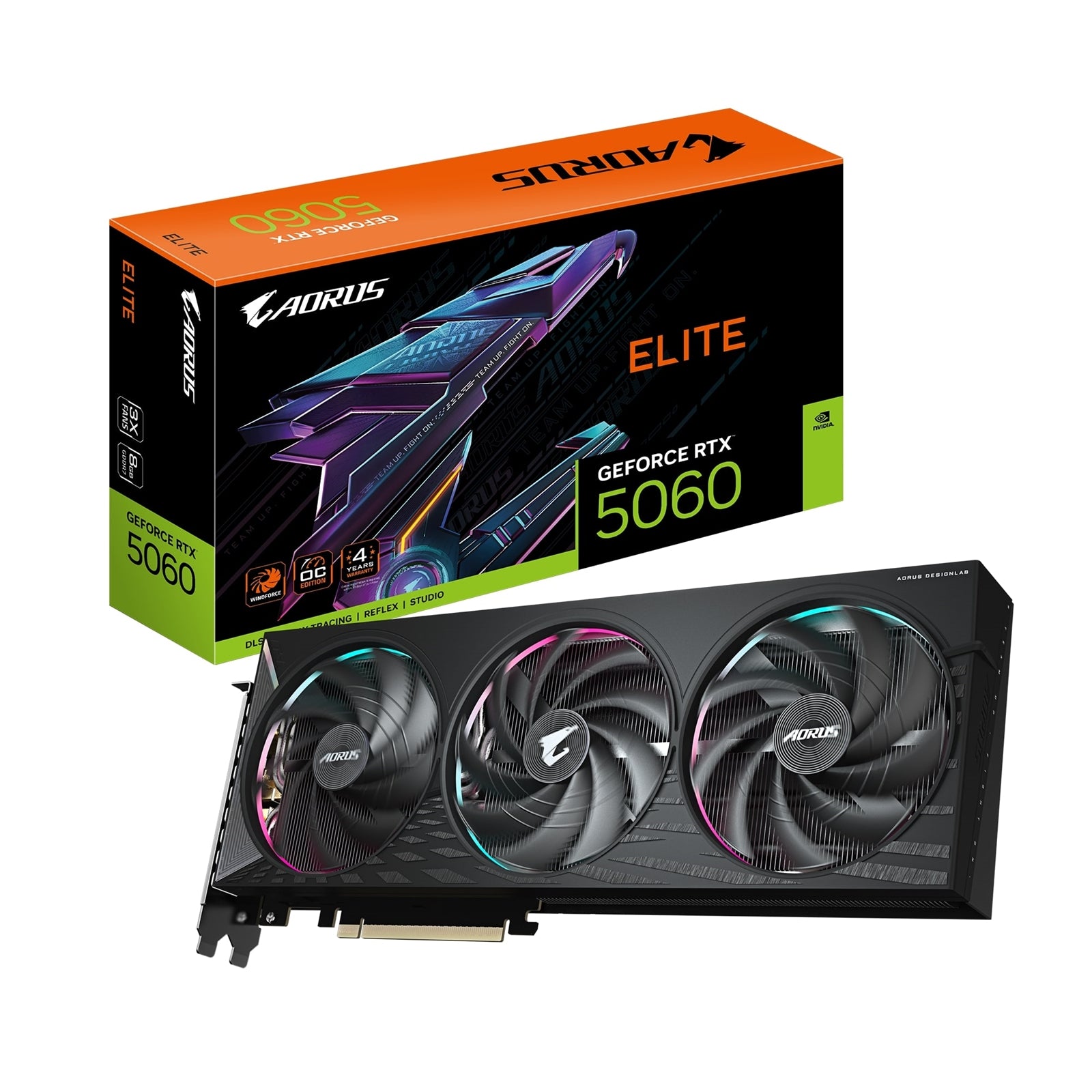

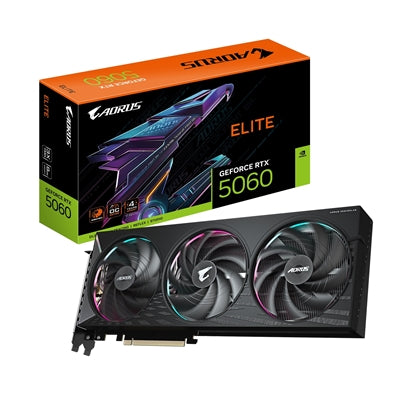

AORUS GeForce RTX 5060 ELITE Graphics Card

The AORUS GeForce RTX 5060 ELITE delivers exceptional gaming performance powered by NVIDIA's Blackwell architecture. This graphics card features 3840 CUDA cores and 8GB of GDDR7 memory running at 28 Gbps across a 128-bit interface, providing the bandwidth needed for modern gaming at high resolutions.

Advanced Cooling Performance

The WINDFORCE cooling system utilizes three Hawk fans engineered for maximum airflow and heat dissipation. Server-grade thermal conductive gel ensures optimal heat transfer from the GPU, while the reinforced structure maintains card integrity under thermal stress. The dual BIOS feature lets you switch between Performance and Silent modes depending on your gaming needs.

Overclocked Performance

Factory overclocked to 2722 MHz, this card exceeds the reference RTX 5060's 2497 MHz base clock, delivering higher frame rates in demanding titles. DLSS 4 technology leverages AI to boost performance while maintaining image quality, making it ideal for 4K gaming and content creation.

Connectivity and Display Options

Equipped with three DisplayPort 2.1b outputs and one HDMI 2.1b port, the RTX 5060 ELITE supports up to four displays simultaneously with a maximum digital resolution of 7680x4320. The PCI-E 5.0 interface ensures compatibility with the latest motherboards and maximum bandwidth for data transfer.

Technical Specifications

This ATX form factor card measures 329mm in length, 128mm in width, and 40mm in height. It requires a single 8-pin power connector and a 500W power supply. DirectX 12 API and OpenGL 4.6 support ensure compatibility with all modern games and applications.

The RGB Halo lighting adds customizable aesthetics to your build, while the included 4-year warranty (with online registration) provides long-term protection for your investment.

FEATURES

Powered by the NVIDIA Blackwell architecture and DLSS 4
Powered by GeForce RTX 5060
Integrated with 8GB GDDR7 128bit memory interface
WINDFORCE cooling system
Hawk fan
Server-grade Thermal conductive gel
RGB Halo
Dual BIOS (Performance / Silent)
Reinforced structure
4 years warranty (Online registration required)

CORE CLOCK
2722 MHz (Reference card : 2497MHz)

Graphics Processing
GeForce RTX 5060

Core Clock
2722 MHz (Reference card : 2497MHz)

CUDA Cores
3840

Memory Clock
28 Gbps

Memory Size
8 GB

Memory Type
GDDR7

Memory Bus
128 bit

Card Bus
PCI-E 5.0

Digital max resolution
7680x4320

Multi-view
4

Card size
L=329 W=128 H=40

PCB Form
ATX

DirectX
DirectX 12 API

OpenGL
4.6

Recommended PSU
500W

Power Connectors
8 Pin*1

Output
DisplayPort 2.1b *3
HDMI 2.1b *1

Accessories
1. Quick guide
2. Warranty registration
3. AORUS metal sticker

• Chipset Manufacturer: Nvidia
• Chipset Series: RTX
• Chipset: RTX5060
• Form Factor: 3x ATX
• Memory: 8GB
• Fans: 3
• RGB: No
