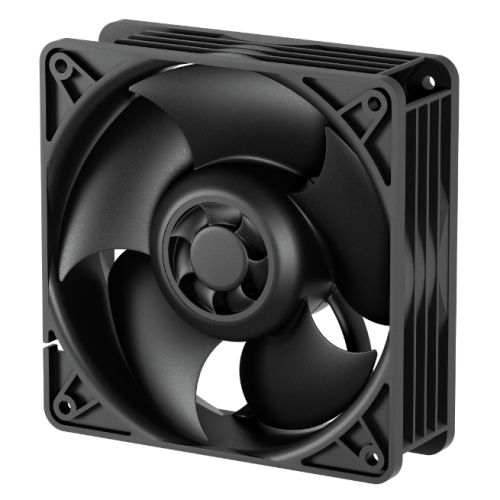

ARCTIC S12038-8K 12cm PWM Server Fan for Continuous Operation, Black, Dual Ball Bearing, 800-8000 RPM
ARCTIC S12038-8K 12cm PWM Server Fan for Continuous Operation, Black, Dual Ball Bearing, 800-8000 RPM
ARCTIC S12038-8K 12cm PWM Server Fan for Continuous Operation, Black, Dual Ball Bearing, 800-8000 RPM
ARCTIC S12038-8K 12cm PWM Server Fan for Continuous Operation, Black, Dual Ball Bearing, 800-8000 RPM
ARCTIC

ARCTIC S12038-8K 12cm PWM Server Fan for Continuous Operation, Black, Dual Ball Bearing, 800-8000 RPM

Product SKU: SF120-ARCS12038-8K
Available:
Only 0 item in stock
0 item in stock
In stock
Pre-order
Out of stock
£11.95
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Shipping & Returns



S12038-8K - 120 mm 8k rpm Server Fan

  • Speed: 800–8000 rpm, PWM controlled
  • Static Pressure: 37 mmH2O
  • Airflow: 220 cfm
  • Bearing: Dual Ball Bearing with Brass Housing
  • Cable Length: 300 mm, Black
  • Connector: 2510 4-Pin Fan Connector
  • Current | Voltage: 2.2 A | 12.0 V DC
  • Start-Up Voltage: 6.5 V DC
  • Current (Maximum): 3.2 A
  • Motor Protection Features: Reverse Polarity Protection, Over Voltage Protection, Over Current Protection






New Standard in Energy Efficiency

For the same performance, the S12038 consumes 22 % less than the next best competitor, improving the energy efficiency of your server. The reduction of the power consumption is the result of months of motor optimization by ARCTIC engineers with the aim to increase the IT equipment efficiency.

Test Setup
Fan on Freezer 4U heat sink on 500 W heating element; fan speed set so that the temperature of the heating element is constantly 20 °C above the ambient temperature.






Wide Range of Speeds (800 to 8000 rpm)

The S12038-8K features a wide range of speeds from 800 to 8000 rpm, which can be controlled either via PWM or voltage regulation. This wide range enables precise adjustment of the fan to the specific requirements of the server, ensuring efficient cooling performance under different operating conditions. The fan is equipped with a standard 4-pin connector, which also allows connection to 2-pin or 3-pin headers. The 30 cm long cable offers additional flexibility in fan placement.






Active Cooling for Extended Motor Lifespan

A 10 °C lower motor temperature roughly doubles the service life. The motor of the S12038-8K is not only particularly efficient, but is also actively cooled by an additional impeller in the fan hub.

To ensure a long service life in particularly dusty environments, a sticker to cover the fan hub impeller is included in the packaging.






Ideal for Server Environments

Especially in server environments, fans with a high pressure are required to enable sufficient air circulation in the often tightly packed enclosures. The S12038-8K fits into server cases from 3U and serves as an upgrade or replacement for a CPU fan, radiator fan or for system ventilation.






Ideal for Industrial Application

In addition to server cooling, it is also used in industrial systems and plays an important role in machine control and automation systems. Reliable and robust, it guarantees performance in various hardware environments and ensures efficient cooling and minimised downtimes.






High Airflow and Static Pressure

Heat sinks and radiators benefit from fans with high static pressure. The S12038-8K has a static pressure of 37 mmH2O, which enables it to push air, even through narrow cooling fins. At the same time, it achieves a maximum airflow of 370 m³/h allowing it to quickly dissipate heat from enclosures. These properties make it the ideal choice for a wide range of applications.






Designed for Continuous Operation

The impeller of the S12038-8K is held by two high-quality Japanese ball bearings in a sturdy brass housing. This design increases the stability, strength and perpendicularity of the fan and minimises sensitivity to influences such as heat and dust. In addition, the brass housing helps to reduce wear on high-speed fans.






Quality You Can Rely On

70 °C ambient temperature, high dust exposure and changing humidity - we carry out our long-term tests under these extreme conditions to ensure the service life of our products. Some of these test fans have been running for over 15 years.

This not only allows us to continuously improve our products, but the excellent test results also confirm our high manufacturing quality. We are happy to pass this assurance on to our customers and offer a 6-year manufacturer's warranty.





Description

Specification

  • Type: 120mm Server Fan
  • Fan Connector(s): 4-pin
  • Fan Controller: PWM
  • #Hide#Max RPM: 8000 RPM
  • Rotation Speed: 800 - 8000 RPM
    Controlled either via PWM or voltage regulation
  • Fan Bearing: Dual Ball Bearing
  • Air Flow: 220 CFM
  • #Hide#LED Lighting: No
  • Colour: Black
  • LED Lighting: -
  • Dimensions: 120 x 120 x 38 mm
  • Weight: 328 g
  • Power: Current | Voltage: 2.2 A | 12.0 V DC
    Start-Up Voltage: 6.5 V DC
    Current (Maximum): 3.2 A
  • Additional Features: "Designed for Continuous Operation
    A 10°C lower motor temp roughly doubles the service life
    Also actively cooled by additional impeller in the fan hub
    Sticker to cover the fan hub impeller is included
    Fits into server cases from 3U
    Upgrade/replacement for a CPU & radiator fan or for system ventilation
    Ideal for Industrial Application
    Static pressure: 37 mmH2O
    70°C ambient temperature, high dust exposure and changing humidity
    Cable Length: 300 mm
    "
  • Package Contents: S12038-8K
    4 x Mounting Screws
    1 x Impeller Sticker
  • Package Type: Retail
  • Package Weight: 0.3670 kg
  • Warranty: 6 Years
  • #Hide#Colour: Black
