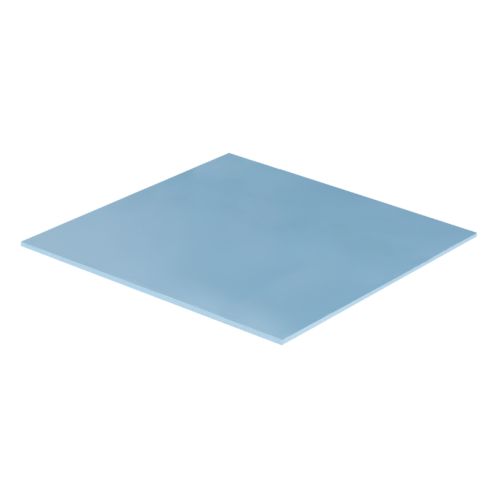

ARCTIC TP-3 Premium Thermal Pad - 100 x 100mm, 1.0mm Thickness

High Performance — Very Soft

The ARCTIC TP-3 thermal pad combines silicone construction with specialized filler materials to deliver superior thermal conductivity at an extremely low hardness rating of 55 Shore OO. This premium gap filler pad excels at managing height differences between closely spaced chips that commonly occur due to manufacturing tolerances, making it ideal for modern PC components.

Minimization of Thermal Resistance

Thermal resistance decreases as pad thickness reduces. The TP-3 pad's 1.0mm thickness provides optimal balance between compressibility and structural integrity. The silicone-based formula allows the pad to compress effectively, compensating for height differences between various components while maintaining excellent heat transfer properties.

Versatile Applications

This 100 x 100mm thermal pad serves multiple functions: heat conduction, vibration damping, moldability, and electrical insulation. The soft silicone construction ensures gentle contact with sensitive components while maintaining efficient thermal transfer. The TP-3 is suitable for RAM modules, chipsets, M.2 SSDs, and integrated circuits across PCs, laptops, gaming consoles, graphics cards, and general electronic devices. The pad can be easily cut to custom shapes and sizes for specific applications.

Safe Handling

The ARCTIC TP-3 is electrically insulating and non-adhesive, allowing for straightforward installation and repositioning if needed. This ensures optimal and safe heat transfer across various application areas without risk of short circuits or component damage.

Bridging Gaps

The TP-3's ultra-soft composition makes it particularly effective for components with varying chip heights and manufacturing tolerances. The excellent compressibility properties enable the thermal pad to function as a perfect gap filler, bridging uneven surfaces and air gaps without applying stress to sensitive or protruding components.

Technical Specifications

• Colour: Blue
• Dimensions: 100 x 100 mm
  Pad Thickness: 1 mm
• #Hide#Pad Thickness: 1.0 mm
• Hardness: 55 Shore OO
• Continuous Use Temperature: -40~150 °C
• Specific Gravity: 3.4 g/cm3
• Dielectric Constant (1MHz): 5.19
• Flammability Rating: UL 94 V-0
• Installation: Click here for Manual
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 0.0450 kg
