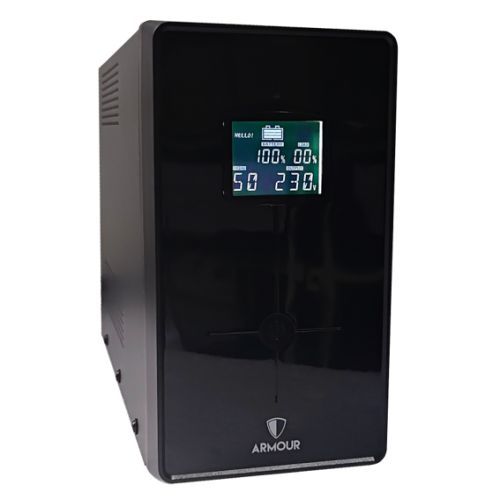

Armour 1200VA/720W Line-Interactive UPS with LCD Display

The Armour 1200VA UPS delivers reliable power protection for home offices and small business environments. This line-interactive uninterruptible power supply provides 720W of continuous power output, protecting connected equipment from power outages, surges, and voltage fluctuations.

Power Protection Features

Built with intelligent CPU control and AVR (Automatic Voltage Regulation), this UPS maintains stable power delivery even when mains voltage fluctuates. The relay automatic circuit cut-off switch provides additional protection, while 320 Joules of surge protection guards against instantaneous voltage spikes. Full-time EMI/RFI suppression ensures clean power with no electromagnetic interference to connected loads.

The sealed lead-acid battery system (2 x 12V7AH) provides 15-20 minutes of runtime depending on load, giving sufficient time to save work and shut down equipment properly during power failures. The DC cold start feature allows the UPS to power on without mains electricity, useful during extended outages. Battery recharge reaches 90% capacity after 8 hours.

Connectivity and Monitoring

Six total output sockets accommodate various equipment types: 3 UK mains sockets for standard plugs and 3 IEC sockets for computer equipment and servers. Two RJ45 ports (in/out) provide network surge protection for routers, switches, and network-attached devices. USB connectivity enables software monitoring through the included UPSmart application, allowing real-time status checks and configuration.

The LCD display provides clear visual feedback on power status, battery level, and load capacity. LED indicators and a humanized audible alarm system alert users to power events and battery status changes. The transfer time of ≤6ms ensures seamless switchover to battery power without interrupting connected equipment.

Technical Specifications

Operating with 230/240VAC input and output voltage, this square wave inverter UPS functions reliably in temperatures from 0-40°C and humidity levels of 20-90% (non-condensing). The wide input voltage range and generator compatibility make it suitable for various power environments. Noise levels remain below 45db at 1 metre distance.

Compact dimensions of 125 x 225 x 320mm (WxHxD) and 10.7kg weight allow flexible placement near protected equipment. The package includes mains cable, USB cable, and manual. Backed by a 1-year warranty.

Description

Specification

• Type: External UPS
• UPS Topology: Line-interactive
• Maximum Capacity: 1200VA / 720W
• #Hide#Capacity (VA): 1200 VA
• #Hide#Capacity (Watts): 720 W
• Battery Type: "2 x 12V7AH
  Sealed Lead-Acid, Maintenance Free"
• Typical Protection: 320 Joules instantaneous response
  Backup Time: 15-20 Minutes (load dependant)
• Inversion: Sine Wave (Mains)
  Square Wave (Inverter)
• Transfer Time: <= 6ms
• Battery Protection: Surge Protection
  Over/Under Voltage Protection
• Input Voltage: 230 / 240VAC with relay
• Output Voltage: 230 / 240VAC
• Recharge Time: 90% capacity after 8 hours
• Runtime: 15-20 minutes (dependent on load)
• Interfaces: 3 x UK Mains Sockets
  2 x RJ45 (In/Out)
  1 x USB (For USB Monitoring)
  3 x IEC Sockets
• Visual Indicators: LCD Display
  LED Indicators
• Audible Indicators: Humanized alarm system
• Environment: Temperature: 0 - 40°C
  Humidity: 20% - 90% (Non-condensing)
  Noise: Up to 45db (1 metre)
• Dimensions: (WxHxD) 125 x 225 x 320 mm
• Weight: 10.7 kg
• Software: Click here to download the Armour UPSmart software
• Additional Features: "Built in AVR
  DC Cold Start
  Intelligent CPU Control
  Wide Input Range
  Software Monitoring
  Compatible with generators
  Strong EMI compatibility, no EMI to load
  Relay automatic circuit cut off switch"
• Accessories: Mains Cable
  USB Cable
  Manual
• Package Type: Retail
• Package Weight: 11.1000 kg
• Warranty: 1 Year
