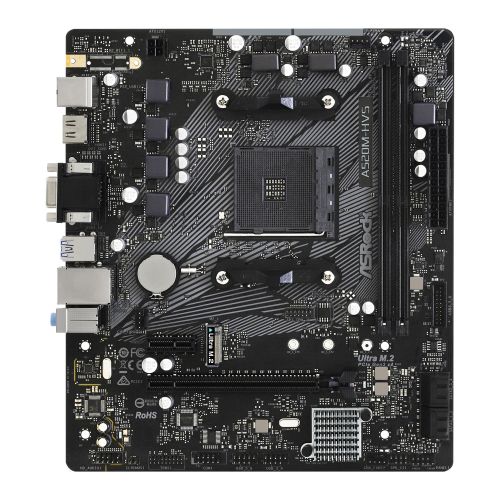

ASRock A520M-HVS AMD AM4 Micro ATX Motherboard

The ASRock A520M-HVS delivers reliable performance for AMD Ryzen builds in a compact Micro ATX form factor. Built on the AMD A520 chipset, this motherboard supports 3rd Gen AMD AM4 Ryzen processors and future 4000 Series processors, providing a solid foundation for budget-conscious PC builders.

Core Specifications

Featuring a 6-phase power design with premium 50A power chokes, the A520M-HVS ensures stable power delivery to your CPU. The board supports dual-channel DDR4 memory up to 4733+ MHz (OC) across 2 DIMM slots, with a maximum capacity of 64GB. High Density Glass Fabric PCB construction protects against electrical shorts caused by humidity, while the Sapphire Black PCB provides a clean aesthetic.

Expansion and Storage

Expansion options include 1 x PCIe 3.0 x16 slot and 1 x PCIe 3.0 x1 slot for graphics cards and add-in cards. Storage connectivity features 4 x SATA III ports and 1 x Ultra M.2 slot supporting both PCIe Gen3 x4 (32Gb/s) and SATA3 (6Gb/s) M.2 modules in 2242/2260/2280 form factors. RAID 0, 1, and 10 configurations are supported for enhanced data redundancy.

Graphics and Display

Dual graphics outputs provide flexibility with both D-Sub (VGA) and HDMI ports. The HDMI port supports 4K resolution at 60Hz, delivering smooth, fluid motion with reduced blur. Integrated graphics processor support varies by CPU model, making this board compatible with AMD Ryzen APUs.

Connectivity

Realtek Gigabit LAN provides reliable network connectivity. USB options are comprehensive with 6 x USB 3.2 Gen1 ports (4 rear, 2 front header) and 6 x USB 2.0 ports (2 rear, 4 front header). Audio is handled by the Realtek ALC887 codec delivering 7.1 channel HD audio.

Protection and Software

Full Spike Protection safeguards sensitive digital components from unexpected voltage surges. ASRock Live Update & APP Shop provides easy access to driver updates, utilities, and system optimization tools.

Package Contents

Includes 2 x SATA data cables and 1 x M.2 mounting screw. Backed by a 2-year replacement warranty.

Note: Not compatible with Ryzen 5 3400G and Ryzen 3 3200G CPUs. Verify CPU compatibility via ASRock's official support list.

• Supports 3rd Gen AMD AM4 Ryzen™ / Future AMD Ryzen™ Processors(3000 and 4000 Series Processors)
• 6 Phase Power Design
• Supports DDR4 4733+ (OC)
• 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1
• Graphics Output Options: D-Sub, HDMI
• 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
• 4 x SATA3, 1 x Ultra M.2(Gen3 x4 & SATA3)
• 6 x USB 3.2 Gen1(4 x Rear, 2 x Front)
• 6 x USB 2.0(2 x Rear, 4 x Front)
• Realtek Gigabit LAN

Description

Specification

• Motherboard Type: Desktop
• Form Factor: Micro ATX
• Socket: AMD AM4
• Chipset: AMD A520
• #Hide#DDR Type: DDR4
• CPU Support: Click here for CPU support

  *Note: not compatible with Ryzen 5 3400G & Ryzen 3 3200G CPUs
• RAM Technology: DDR4 (Dual Channel)
• RAM Slots: 2 x DIMM
• RAM Speeds: 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 MHz
• Maximum Memory: 64GB
• Graphics: Integrated Graphics Processor*

  Graphics specifications may vary between CPU types
• Graphics Ports: 1 x VGA
  1 x HDMI
• Multi-GPU Support: -
• PCI/PCI Express: 1 x PCIe 3.0 x16 Slot (PCIE2: x16 mode)
  1 x PCIe 3.0 x1
• Storage: 4 x SATA III
  1 x M.2 (2242/2260/2280) - SATA & PCIe
• RAID: "RAID 0, 1, 10"
• Wireless: -
• LAN: GB LAN
• Audio: 7.1 CH HD Audio (Realtek ALC887 Audio Codec)
• USB Ports Supported: "6 x USB 3.2 Gen1 (4 at back, 2 at mid-board)
  6 x USB 2.0 (2 at back, 4 at mid-board)"
• Back Panel I/O Ports: 1 x PS/2 Mouse/Keyboard
  1 x D-Sub
  1 x HDMI
  2 x USB 2.0
  4 x USB 3.2 Gen1
  1 x RJ-45 LAN
  HD Audio Jacks
• Internal I/O Connectors: 1 x SPI TPM
  1 x COM Port
  1 x Chassis Intrusion and Speaker
  1 x CPU Fan
  2 x Chassis Fan
  1 x 24 pin ATX
  1 x 4 pin 12V
  1 x Front Audio
  2 x USB 2.0
  1 x USB 3.2 Gen1
• Accessories: 2 x SATA Data Cables
  1 x Screw for M.2 Socket
• Additional Features: See Overview
• Package Type: Retail
• Package Weight: 0.7610 kg
• Warranty: 2 Year Replacement Warranty
• #Hide#M.2 Slot(s): Yes (M.2)
• #Hide#No. LAN Ports: 1 x LAN
• #Hide#Max LAN Speed: GB LAN
