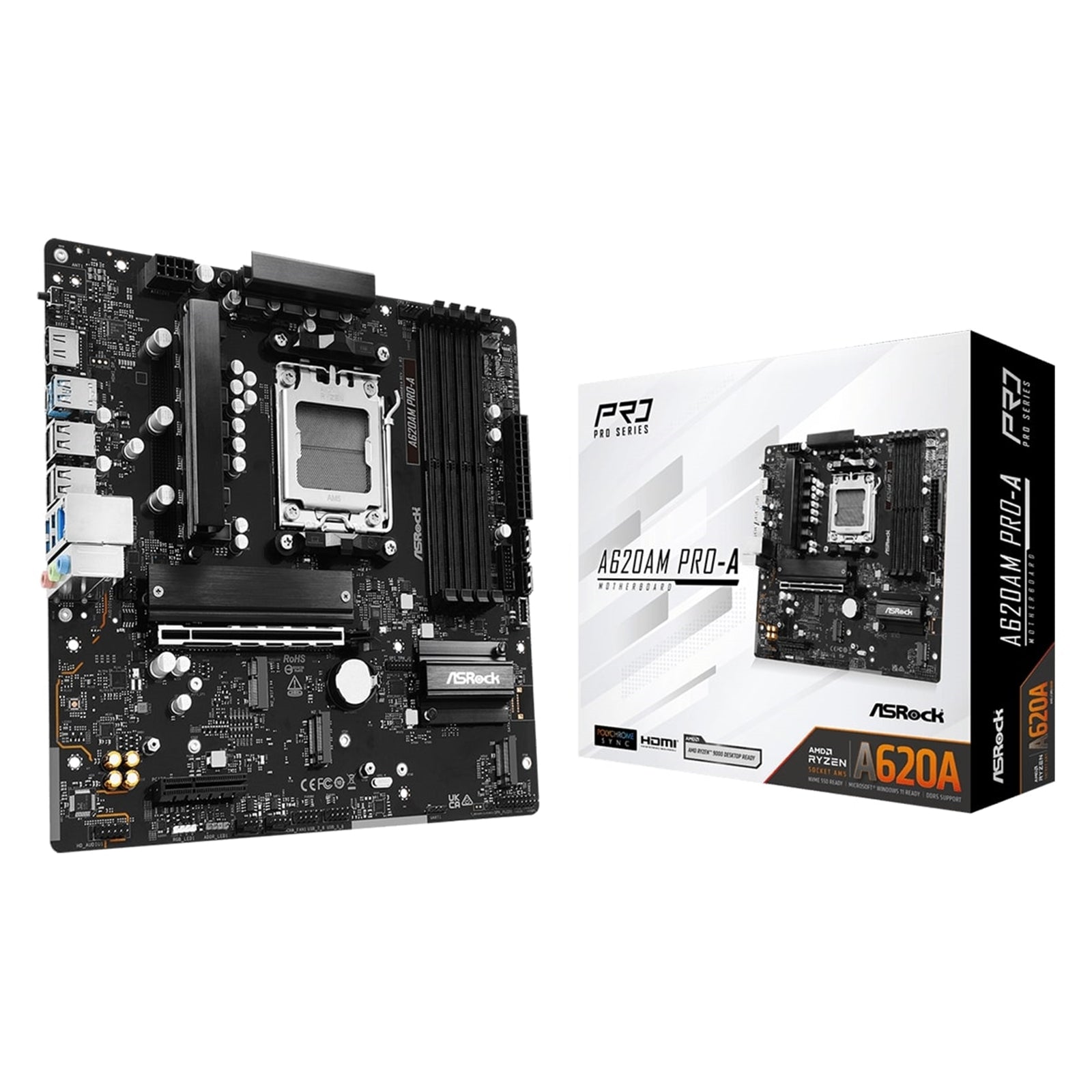

ASRock A620AM PRO-A AMD AM5 Motherboard

The ASRock A620AM PRO-A delivers reliable performance for AMD Ryzen 9000, 8000, and 7000 series processors. Built on the AMD A620A chipset, this Micro ATX motherboard combines essential features with stable power delivery for daily computing and gaming builds.

Enhanced Power Delivery System

The 6+2+1 power phase design with Dr.MOS technology ensures consistent power delivery to your CPU. Dr.MOS integrated power stages offer superior current handling and thermal efficiency compared to traditional MOSFETs. The Hi-Density 8-pin power connector withstands higher currents for system stability during demanding workloads. A 6-layer PCB design provides stable signal traces and optimized power distribution for improved memory overclocking capabilities.

DDR5 Memory Support

Four DDR5 DIMM slots support up to 256GB of system memory with speeds reaching 8000+ MHz through overclocking. Both Intel XMP and AMD EXPO profiles are supported for simplified memory overclocking. The enhanced PCB design ensures stable operation with high-performance DDR5 modules.

High-Speed Storage Options

Three M.2 sockets provide flexible storage configurations. Two CPU-connected Hyper M.2 sockets support PCIe Gen4 x4 (64 Gb/s) for maximum NVMe SSD performance. An additional chipset-connected Ultra M.2 socket supports PCIe Gen3 x4 (32 Gb/s). Two SATA3 ports offer traditional storage connectivity. RAID 0, 1, and 10 configurations are supported for M.2 drives.

Connectivity Features

Dragon 2.5 Gigabit LAN delivers 2.5X the bandwidth of standard gigabit ethernet for faster file transfers, streaming, and online gaming. The rear panel includes HDMI 2.1 output supporting 4K 120Hz resolution with HDR and HDCP 2.3. USB 3.2 Gen1 Type-C ports on both front and rear panels provide reversible connectivity with 5 Gbps transfer speeds. A total of 15 USB ports (including USB 2.0) ensure comprehensive peripheral support.

Cooling and RGB Customization

Aluminum heatsinks manage thermal performance during intensive tasks. Six fan headers with smart speed control support CPU fans, chassis fans, and AIO pump configurations. Onboard RGB and addressable RGB headers enable customization with compatible LED devices. Signal RGB partnership provides unified lighting control across multiple RGB components.

User-Friendly Features

The Post Status Checker displays real-time CPU, DRAM, VGA, and BOOT status with colored LEDs during startup for quick troubleshooting. BIOS Flashback button enables firmware updates without CPU or memory installed. Realtek ALC897 audio codec delivers 7.1-channel HD audio output.

ASRock A620AM Pro-A
Pro-A series is designed for enhanced stability, durability, and efficiency, it offers reliable performance, user-friendly features and a streamlined aesthetic, making it ideal for daily computing needs.

Optimized VRM Design
Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.

Dr. MOS
Dr.MOS is an integrated power stage optimized for synchronous buck-set down voltage applications, delivering higher current and better thermal efficiency than traditional MOSFETs, ensuring enhanced stability.

Power Connector
Hi-Density Power Connector
CPU overclocking requires higher current. ASRock Hi-Density Power Connectors are designed to withstand higher currents compared to traditional CPU and ATX power connectors, providing a more stable system and reducing the risk of fire during heavy overclocking.

6 Layer PCB
The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance!

DDR5 XMP & EXPO Support
Derived from the 'built for stable and reliable' designing concept, ASRock does not compromise on any details. This motherboard is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel XMP/AMD EXPO capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.

High Speed M.2 Solution
Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

Intelligent Cooling Design
Aluminum Heatsink
The first thing that catches the eye is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly.

Dragon 2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you'll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

Front USB 3.2 Gen1 Type-C
Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.

POLYCHROME RGB
This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

Signal RGB
Signal RGB unifies your RGB devices, offering seamless customization, game-reactive effects, macro automation, and system monitoring. The official partnership empowers ASRock motherboards with advanced lighting control, enhances compatibility with a diverse range of RGB devices, and provides greater customization flexibility.

Post Status Checker
Displays the real-time status of CPU, DRAM, VGA, and BOOT device with colored LEDs during startup. A simple and efficient way to check system operation at a glance.

Unique Feature

Superb Productivity
Dual Channel DDR5
Rock-Solid Durability
6+2+1 Power Phase, Dr.MOS

Ultrafast Connectivity
2.5G LAN

EZ Update
BIOS Flashback Button
ASRock Auto Driver Installer
EZ Troubleshooter
ASRock Post Status Checker

CPU
Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors

Chipset
AMD A620A

Memory
Dual Channel DDR5 Memory Technology
4 x DDR5 DIMM Slots
Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)*
Max. capacity of system memory: 256GB
Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

BIOS
256Mb AMI UEFI Legal BIOS with GUI support

Graphics
Integrated AMD RDNA graphics (Actual support may vary by CPU)
1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz

Audio
7.1 CH HD Audio (Realtek ALC897 Audio Codec)

LAN
2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Dragon RTL8125BG
Supports Dragon 2.5G LAN Software
Smart Auto Adjust Bandwidth Control
Visual User Friendly UI
Visual Network Usage Statistics
Optimized Default Setting for Game, Browser, and Streaming Modes
User Customized Priority Control

Slots
CPU:
1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode
Chipset:
1 x PCIe 3.0 x4 Slot (PCIE2), supports x2 mode
1 M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
15µ Gold Contact in VGA PCIe Slot (PCIE1)

Storage
CPU:
1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode
Chipset
1 x Ultra M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen3x4 (32 Gb/s) mode*
2 x SATA3 6.0 Gb/s Connectors

RAID
Supports RAID 0 and RAID 1 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

USB
CPU:
1 x USB 3.2 Gen1 Type-C (Rear)
2 x USB 3.2 Gen1 Type-A (2 Rear (USB32_1, USB32_2))
Chipset:
1 x USB 3.2 Gen1 Type-C (Front)
3 x USB 3.2 Gen1 Type-A (1 Rear (USB32_3), 2 Front)
8 x USB 2.0 (4 Rear, 4 Front)

Connector
1 x SPI TPM Header
1 x Power LED and Speaker Header
1 x RGB LED Header
3 x Addressable LED Headers
2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)
3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
1 x Front Panel Audio Connector
2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
1 x Front Panel Type C USB 3.2 Gen1 Header

Rear Panel I/O
2 x Antenna Mounting Points
1 x HDMI Port
3 x USB 3.2 Gen1 Type-A Ports
1 x USB 3.2 Gen1 Type-C Port
4 x USB 2.0 Ports
1 x RJ-45 LAN Port
1 x BIOS Flashback Button
HD Audio Jacks: Line in / Front Speaker / Microphone

Software and UEFI
Software
ASRock Motherboard Utility (A-Tuning)
ASRock Dragon 2.5G LAN Software
ASRock Polychrome SYNC
UEFI
ASRock Full HD UEFI
ASRock Auto Driver Installer
ASRock Instant Flash

Accessories
1 x I/O Shield
2 x SATA Data Cables
4 x Screws for M.2 Sockets
1 x Standoff for M.2 Socket

Form Factor
Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm

OS
Microsoft Windows 10 64-bit / 11 64-bit

Certifications
FCC, CE
ErP/EuP ready (ErP/EuP ready power supply is required)

• Socket: AM5
• CPU Compatibility: AMD Ryzen 9000/8000/7000
• Chipset: AMD A620
• Form Factor: Micro ATX
• Memory Slots: DDR5 - 4 Slots
• M.2 Compatibility: PCIe3.0 x 4
• USB C: 1
