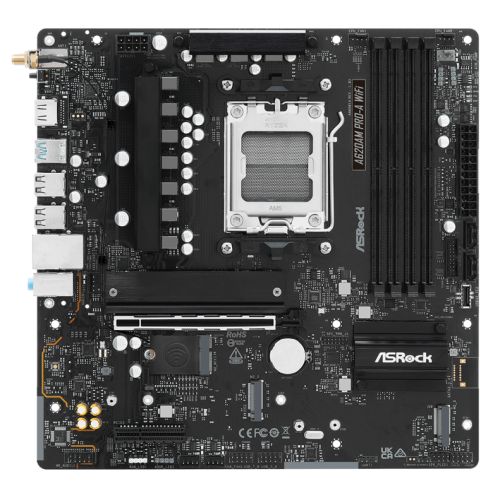

ASRock A620AM PRO-A WiFi - Reliable AM5 Micro ATX Motherboard

The ASRock A620AM PRO-A WiFi delivers stable performance for AMD Ryzen 9000, 8000, and 7000 series processors on the AM5 platform. This Micro ATX motherboard combines essential features with enhanced durability for daily computing and gaming builds.

AMD A620A Chipset with AM5 Socket

Built on the AMD A620A chipset, this motherboard supports the latest Ryzen processors with a 6+2+1 phase power design featuring Dr.MOS technology. The optimized VRM ensures stable power delivery during demanding workloads, while the 6-layer PCB design provides reliable signal integrity and improved thermal efficiency for memory overclocking.

DDR5 Memory Performance

Four DDR5 DIMM slots support dual-channel configurations up to 8000MHz+ (OC) with a maximum capacity of 256GB. Compatible with both Intel XMP and AMD EXPO profiles, the motherboard enables easy memory overclocking through pre-tested configurations without manual tuning.

Expansion and Storage Options

The board features one PCIe 4.0 x16 slot for graphics cards and one PCIe 3.0 x4 slot for additional expansion. Storage connectivity includes three M.2 slots—two Hyper M.2 supporting PCIe Gen4 x4 and one Ultra M.2 with PCIe Gen3 x4—plus two SATA III ports. RAID 0, 1, and 10 configurations are supported for M.2 NVMe drives.

WiFi 6E and 2.5G Networking

Integrated 802.11axe WiFi 6E with Bluetooth 5.2 extends wireless capability to the 6GHz spectrum band, delivering lower latency and faster speeds. The Realtek 2.5G LAN provides 2.5x the bandwidth of standard gigabit connections for improved file transfers and streaming performance.

Comprehensive USB Connectivity

USB options include two USB 3.2 Gen1 Type-C ports (one rear, one front header), five USB 3.2 Gen1 Type-A ports, and eight USB 2.0 ports. The front Type-C header delivers 5Gbps transfer rates with reversible connectivity for modern cases.

Cooling and RGB Features

Aluminum heatsinks manage thermal loads during intensive tasks. Six fan headers with automatic PWM/DC detection allow precise fan curve control through Fan-Tastic Tuning software. Onboard RGB and addressable RGB headers support Polychrome RGB synchronization and SignalRGB integration for unified lighting control.

User-Friendly Features

BIOS Flashback enables BIOS updates with only a USB drive and power supply—no CPU or RAM required. The Post Status Checker displays real-time LED indicators for CPU, DRAM, VGA, and boot device status during startup. Auto Driver Installer with pre-installed LAN drivers simplifies initial setup.

Audio: Realtek ALC897 7.1 CH HD Audio Codec
Graphics Output: 1x HDMI (supports integrated graphics)
Form Factor: Micro ATX
Warranty: 3 Year Replacement Warranty
