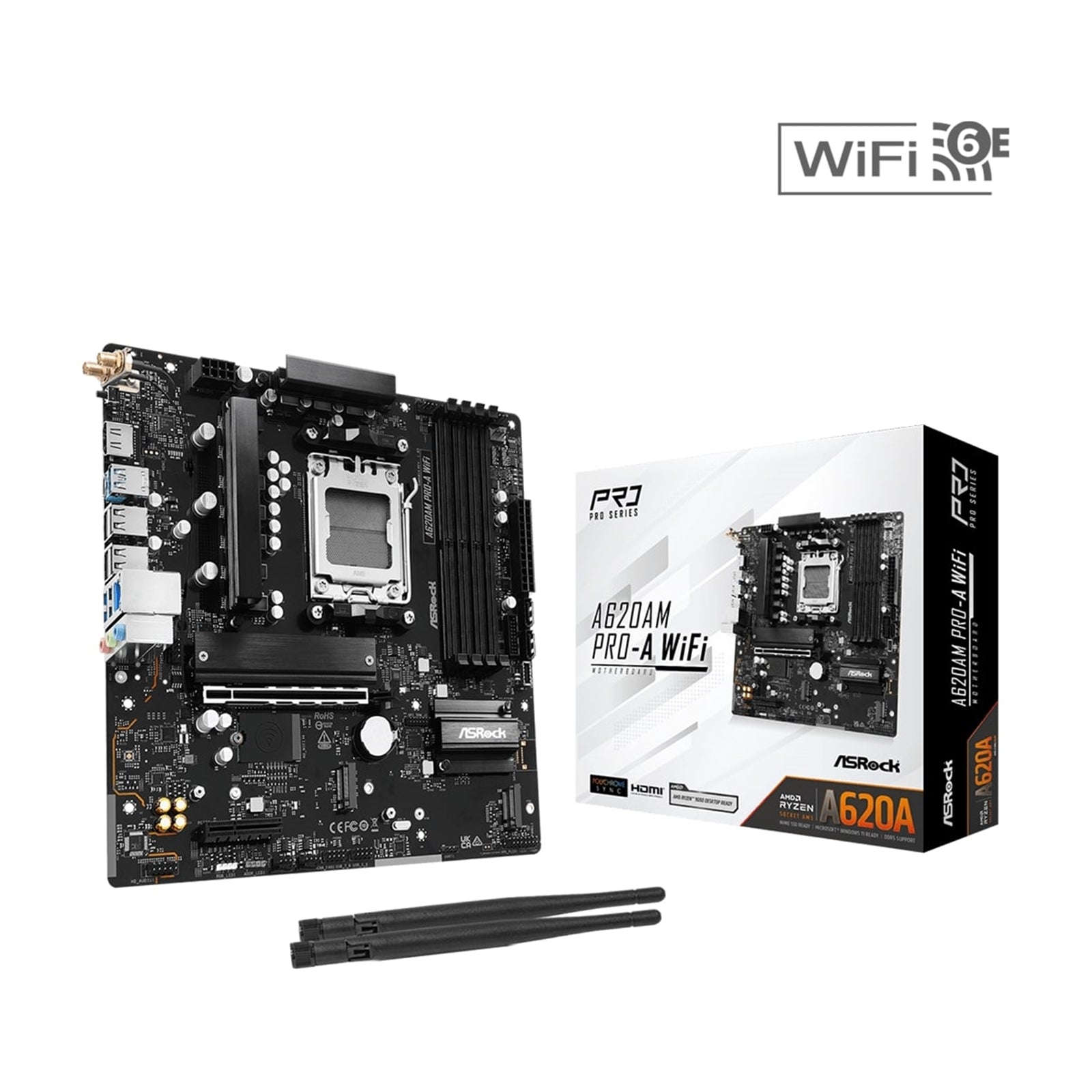

ASRock A620AM PRO-A WIFI Motherboard

The ASRock A620AM PRO-A WIFI delivers reliable performance for AMD Ryzen 9000, 8000, and 7000 Series processors. This Micro ATX motherboard combines essential features with modern connectivity options, making it an ideal foundation for budget-conscious builds without compromising on core functionality.

DDR5 Memory and Overclocking Support

Equipped with 4 DDR5 DIMM slots supporting speeds up to 8000MHz (OC), this motherboard handles both Intel XMP and AMD EXPO memory profiles. The 6-layer PCB design ensures stable signal traces and optimized power delivery, enabling enhanced memory overclocking performance while maintaining system stability.

Power Delivery and Stability

The 6+2+1 power phase design with Dr.MOS technology provides efficient power delivery to the CPU. Dr.MOS integrated power stages deliver higher current capacity and superior thermal efficiency compared to traditional MOSFETs. The Hi-Density 8-pin power connector withstands increased current demands, ensuring stable operation during intensive workloads.

High-Speed Storage Solutions

Three M.2 sockets provide flexible storage configurations: two Hyper M.2 slots (M2_1 and M2_2) support PCIe Gen4x4 at 64 Gb/s, while the Ultra M.2 socket (M2_3) offers PCIe Gen3x4 at 32 Gb/s. Additional storage options include 2 SATA3 6.0 Gb/s connectors with RAID 0 and RAID 1 support.

Advanced Connectivity

WiFi 6E 802.11axe technology extends into the 6GHz spectrum band, delivering faster speeds and lower latency equivalent to 5G networks. The Dragon 2.5Gb/s LAN provides 2.5X the bandwidth of standard gigabit ethernet, optimizing performance for content creation, gaming, and high-quality streaming. Dual USB 3.2 Gen1 Type-C ports (front and rear) offer 5 Gbps data transfer rates with reversible connectivity.

Graphics and Display Output

The HDMI 2.1 port supports 4K resolution at 120Hz with HDR and HDCP 2.3 compatibility, working seamlessly with integrated AMD RDNA graphics on compatible CPUs.

Enhanced Audio and RGB Lighting

Realtek ALC897 7.1 CH HD Audio with Nahimic Audio software delivers immersive sound quality. Features include static noise suppression, echo cancellation, and Sound Tracker for directional audio cues. Polychrome RGB headers and SignalRGB compatibility enable synchronized lighting effects across compatible devices.

Practical Features

The Post Status Checker displays real-time CPU, DRAM, VGA, and BOOT status with colored LEDs during startup. The BIOS Flashback button simplifies firmware updates without requiring CPU or memory installation. Six fan connectors (including CPU, chassis, and AIO pump) provide comprehensive cooling control.

• Socket: AM5
• CPU Compatibility: AMD Ryzen 9000/8000/7000
• Chipset: AMD A620
• Form Factor: Micro ATX
• Memory Slots: DDR5 - 4 Slots
• M.2 Compatibility: PCIe4.0 x 4
• USB C: 2
