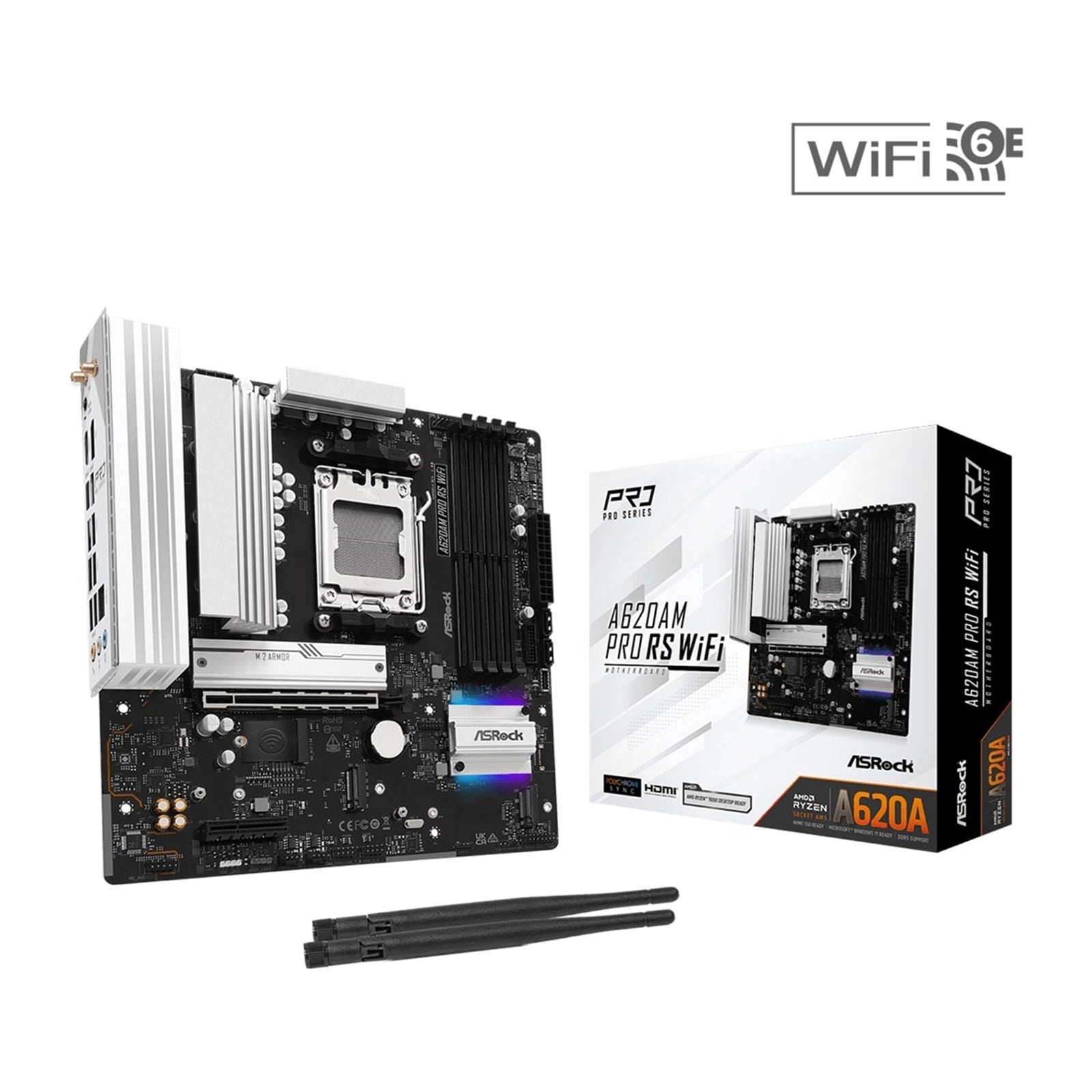

ASRock A620AM Pro RS WiFi AMD AM5 Motherboard

The ASRock A620AM Pro RS WiFi delivers reliable performance for AMD Ryzen 9000, 8000, and 7000 series processors. Built on the Micro ATX form factor, this motherboard combines modern connectivity with stable power delivery for gaming and productivity builds.

Power Delivery and Performance

The 6+2+1 power phase design with Dr.MOS technology ensures stable power delivery to your CPU. Dr.MOS integrated power stages deliver higher current capacity and superior thermal efficiency compared to traditional MOSFETs. The 6-layer PCB construction provides stable signal traces and optimized power distribution, supporting DDR5 memory overclocking while maintaining system stability.

DDR5 Memory Support

Four DDR5 DIMM slots support up to 256GB of memory with speeds reaching 7200+ MHz (OC). Compatible with both Intel XMP and AMD EXPO memory profiles, this motherboard makes memory overclocking accessible through pre-tested configurations. The enhanced power efficiency of DDR5 technology paired with the robust PCB design ensures reliable performance during demanding workloads.

High-Speed Connectivity

Three M.2 slots provide flexible storage expansion: two Hyper M.2 sockets support PCIe Gen4 x4 (64 Gb/s) for maximum SSD performance, while a third Ultra M.2 socket offers PCIe Gen3 x4 (32 Gb/s) connectivity. The PCIe 4.0 x16 slot delivers full bandwidth for modern graphics cards.

WiFi 6E (802.11axe) extends wireless connectivity into the 6GHz spectrum band, providing increased bandwidth and reduced latency. The Dragon 2.5G LAN delivers 2.5 times the bandwidth of standard gigabit Ethernet, optimizing performance for content creation, gaming, and media streaming.

USB and Display Options

Multiple USB 3.2 Gen1 ports include both Type-A and Type-C connectors on the rear panel and front headers. HDMI 2.1 and DisplayPort 1.4 outputs support 4K resolution at 120Hz with HDR and HDCP 2.3 compatibility when paired with compatible AMD RDNA graphics.

Cooling and Audio Features

Aluminum heatsinks manage thermal performance during intensive tasks. Five fan headers with smart speed control support both air cooling and water pump configurations. Nahimic Audio enhances the Realtek ALC897 7.1 CH HD audio codec with noise suppression, echo cancellation, and Sound Tracker for immersive gaming audio.

User-Friendly Features

The Post Status Checker displays real-time startup status with colored LEDs for CPU, DRAM, VGA, and boot device diagnostics. BIOS Flashback button enables firmware updates without CPU or memory installation. Polychrome RGB headers and addressable RGB support allow customization with compatible LED devices and Signal RGB integration.

Pre-installed I/O shield, ASRock Auto Driver Installer, and comprehensive UEFI options streamline system setup and maintenance.

• Socket: AM5
• CPU Compatibility: AMD Ryzen 9000/8000/7000
• Chipset: AMD A620
• Form Factor: Micro ATX
• Memory Slots: DDR5 - 4 Slots
• M.2 Compatibility: PCIe3.0 x 4
• USB C: 1
