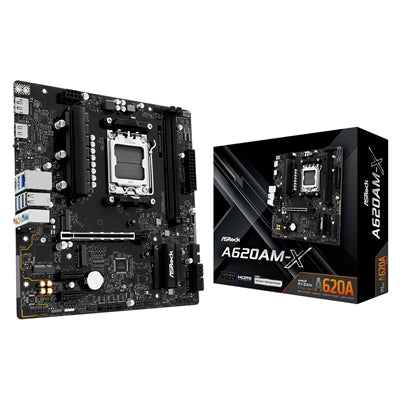

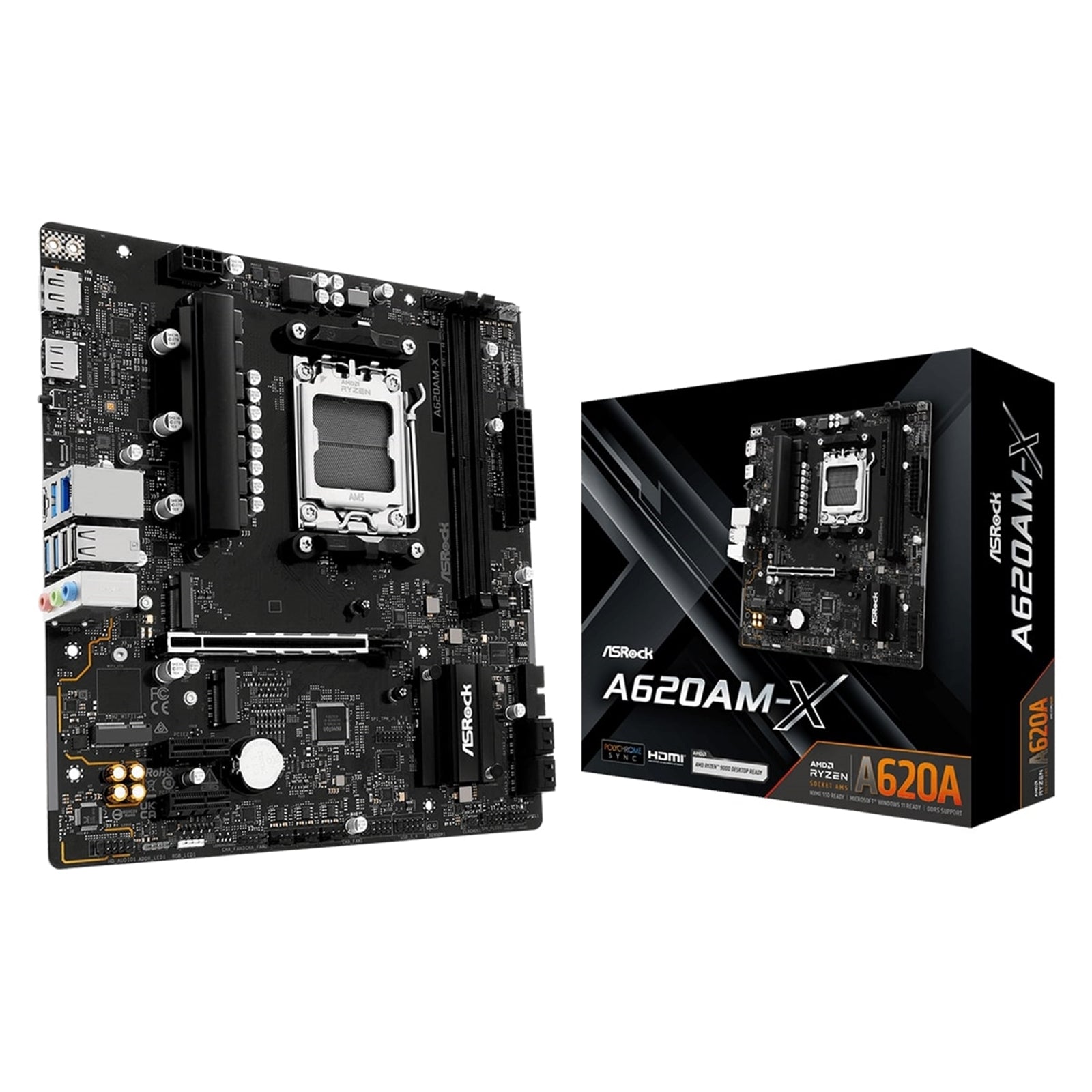

ASRock A620AM-X AMD AM5 Micro ATX Motherboard

The ASRock A620AM-X delivers reliable performance for AMD Ryzen 9000, 8000, and 7000 series processors in a compact Micro ATX form factor. Built on the AMD A620 chipset, this motherboard provides essential features for gaming builds and productivity workstations without unnecessary overhead.

Power Delivery and Stability

The 6+1+1 power phase design with Dr.MOS technology ensures stable power delivery to your CPU. The 6-layer PCB construction provides clean signal traces and efficient power distribution, supporting demanding workloads while maintaining thermal efficiency. The Hi-Density power connectors handle higher current loads compared to traditional connectors, ensuring system stability during intensive tasks.

DDR5 Memory Support

Two DDR5 DIMM slots support up to 128GB of memory with speeds reaching 8000MHz+ through overclocking. Intel XMP and AMD EXPO profile support enables one-click memory optimization. The enhanced PCB design ensures stable signal integrity for reliable memory performance across all speed ranges.

Storage and Expansion

Two Hyper M.2 sockets support PCIe Gen 4.0 x4 NVMe SSDs in 2280 form factor, delivering up to 64 Gb/s transfer speeds. Four SATA3 6.0 Gb/s ports provide additional storage connectivity. The single PCIe 4.0 x16 slot accommodates modern graphics cards, while two PCIe 3.0 x1 slots offer expansion flexibility. An M.2 Key E socket supports WiFi 6E modules for wireless connectivity.

Connectivity Features

The Dragon 2.5 Gigabit LAN delivers up to 2.5X faster networking performance compared to standard gigabit Ethernet, with intelligent bandwidth management for gaming, streaming, and file transfers. WiFi 6E support extends to the 6GHz spectrum band for reduced latency and improved wireless performance. USB connectivity includes three USB 3.2 Gen1 Type-A ports, two USB 3.2 Gen1 Type-C ports (rear and front panel), and six USB 2.0 ports.

Display and Audio

Integrated AMD RDNA graphics output through HDMI 2.1 and DisplayPort 1.4, both supporting 4K 120Hz resolution with HDR and HDCP 2.3. The Realtek ALC897 audio codec with Nahimic Audio enhancement provides 7.1 channel HD audio with noise suppression, echo cancellation, and Sound Tracker for immersive gaming audio.

Cooling and Customization

Aluminum heatsinks manage thermal loads during extended operation. Four fan headers with smart speed control support CPU and chassis cooling configurations. RGB and addressable RGB headers enable lighting customization through Polychrome RGB Sync and SignalRGB software. The Post Status Checker LED system displays real-time boot status for CPU, DRAM, VGA, and storage devices.

Specifications Summary

• Socket: AM5
• CPU Compatibility: AMD Ryzen 9000/8000/7000
• Chipset: AMD A620
• Form Factor: Micro ATX
• Memory Slots: DDR5 - 2 Slots
• M.2 Compatibility: PCIe 4.0 x4
• USB C: Yes

The ASRock A620AM-X includes BIOS Flashback functionality for easy firmware updates, ASRock Auto Driver Installer for simplified setup, and supports Microsoft Windows 10/11 64-bit operating systems. FCC and CE certified with ErP/EuP ready compliance.
