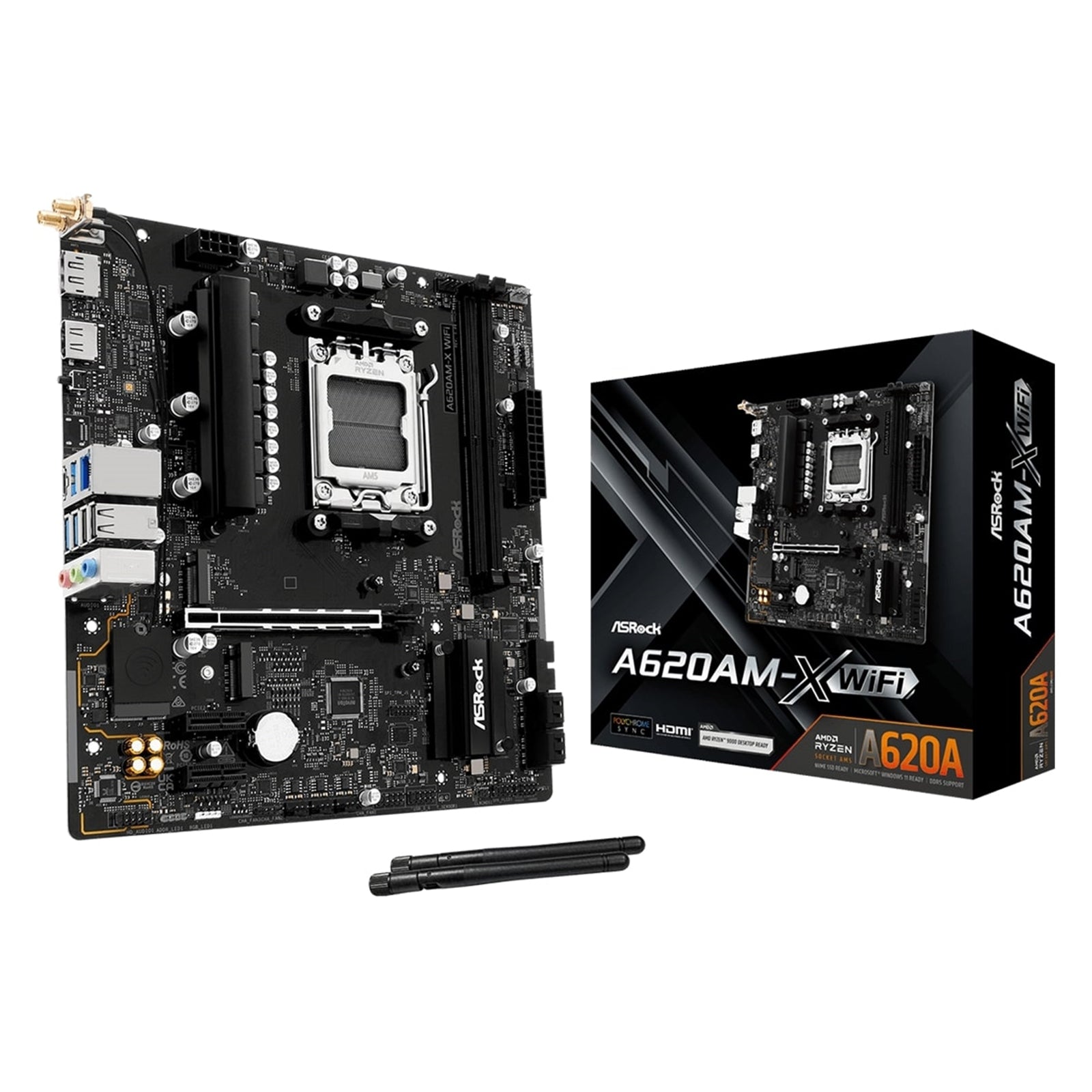

ASRock A620AM-X WiFi AM5 Motherboard

The ASRock A620AM-X WiFi delivers a compact Micro ATX solution for AMD Ryzen 7000, 8000, and 9000 series processors. Built on the AMD A620 chipset, this motherboard balances performance and value for both productivity and gaming builds.

Power Delivery and Stability

Featuring a 6+1+1 power phase design with Dr.MOS technology, the A620AM-X WiFi provides stable power delivery to your AMD AM5 processor. The integrated power stage delivers higher current and better thermal efficiency than traditional MOSFETs. The 6-layer PCB design ensures stable signal traces and power delivery, supporting extreme memory performance and overclocking capabilities.

DDR5 Memory Support

Two DDR5 DIMM slots support up to 128GB of memory with speeds reaching 8000+ MHz (OC). Compatible with both Intel XMP and AMD EXPO profiles, the motherboard enables easy memory overclocking for enhanced system performance. Dual-channel DDR5 technology provides the bandwidth needed for demanding applications and multitasking.

High-Speed Storage Options

The motherboard includes two Hyper M.2 sockets supporting PCIe Gen4 x4 (64 Gb/s) for NVMe SSDs, delivering twice the speed of PCIe 3.0. Four SATA3 6.0 Gb/s connectors provide additional storage expansion. RAID 0, 1, and 10 support is available for both M.2 NVMe and SATA devices.

Connectivity Features

Dragon 2.5 Gigabit LAN delivers 2.5X the bandwidth of standard gigabit Ethernet, with intelligent software for optimized gaming, streaming, and file transfers. The 802.11ac WiFi module supports dual-band (2.4/5 GHz) wireless connections up to 433Mbps with Bluetooth 5.0. USB connectivity includes two USB 3.2 Gen1 Type-C ports (one front, one rear), four USB 3.2 Gen1 Type-A ports, and six USB 2.0 ports.

Display and Graphics

Integrated AMD RDNA graphics support includes one HDMI 2.1 port and one DisplayPort 1.4, both capable of 4K 120Hz output with HDR and HDCP 2.3 support. The PCIe 4.0 x16 slot accommodates dedicated graphics cards for enhanced gaming performance.

Cooling and Audio

Aluminum heatsinks manage thermal performance during intensive workloads. Six fan connectors (two CPU, three chassis, one AIO pump) with smart fan speed control provide flexible cooling options. Realtek ALC897 7.1 CH HD Audio with Nahimic Audio technology delivers immersive sound with noise suppression and voice stabilization for gaming and communication.

User-Friendly Features

The ASRock Post Status Checker displays real-time CPU, DRAM, VGA, and BOOT status with colored LEDs during startup. BIOS Flashback button enables easy firmware updates. Polychrome RGB headers support synchronized lighting effects across compatible devices. The motherboard includes ASRock Auto Driver Installer and A-Tuning utility for simplified setup and optimization.

ASRock A620AM-X WiFi

X Series motherboard offers a compact, high-value solution, balancing performance, versatility, and reliability for both professional and daily tasks.

Optimized VRM Design
Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.

Dr. MOS
Dr.MOS is an integrated power stage optimized for synchronous buck-set down voltage applications, delivering higher current and better thermal efficiency than traditional MOSFETs, ensuring enhanced stability.

Power Connector
Hi-Density Power Connector
CPU overclocking requires higher current. ASRock Hi-Density Power Connectors are designed to withstand higher currents compared to traditional CPU and ATX power connectors, providing a more stable system and reducing the risk of fire during heavy overclocking.

6 Layer PCB
The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance!

DDR5 XMP & EXPO Support
Derived from the 'built for stable and reliable' designing concept, ASRock does not compromise on any details. This motherboard is built with high quality materials, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel XMP/AMD EXPO capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.

High Speed M.2 Solution
Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

Intelligent Cooling Design
Aluminum Heatsink
The first thing that catches the eye is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly.

Wi-Fi 6E 802.11axe
WiFi 6E technology has extended to the whole new 6GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to deliver higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks.

Dragon 2.5 Gb/s LAN
The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you'll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

Front USB 3.2 Gen1 Type-C
Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.

Nahimic Audio
Audio That Matters
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.

Enhance Communication Quality
The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue.
Static Noise Suppression
Echo Cancellation
Lateral Sound Cancellation
Voice Stabilizer

Ultimate Gaming Experience
Sound Tracker
The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360 degrees on a radar for a full immersion during the game.
Works on any devices!
Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience.

POLYCHROME RGB
This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

Signal RGB
Signal RGB unifies your RGB devices, offering seamless customization, game-reactive effects, macro automation, and system monitoring. The official partnership empowers ASRock motherboards with advanced lighting control, enhances compatibility with a diverse range of RGB devices, and provides greater customization flexibility.

Post Status Checker
Displays the real-time status of CPU, DRAM, VGA, and BOOT device with colored LEDs during startup. A simple and efficient way to check system operation at a glance.

Specifications

Unique Feature

Superb Productivity
Dual Channel DDR5
Rock-Solid Durability
6+1+1 Power Phase, Dr.MOS for VCore

Ultrafast Connectivity
2.5G LAN, 802.11ac Wi-Fi Module

EZ Update
BIOS Flashback Button
ASRock Auto Driver Installer
EZ Troubleshooter
ASRock Post Status Checker

CPU
Supports AMD Socket AM5 Ryzen 9000, 8000 and 7000 Series Processors

Chipset
AMD A620A

Memory
Dual Channel DDR5 Memory Technology
2 x DDR5 DIMM Slots
Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)
Max. capacity of system memory: 128GB
Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

BIOS
256Mb AMI UEFI Legal BIOS with GUI support

Graphics
Integrated AMD RDNA graphics (Actual support may vary by CPU)
1 x HDMI 2.1 TMDS/FRL 8G Compatible, supports HDR, HDCP 2.3 and max. resolution up to 4K 120Hz
1 x DisplayPort 1.4 with DSC (compressed), supports HDCP 2.3 and max. resolution up to 4K 120Hz

Audio
7.1 CH HD Audio (Realtek ALC897 Audio Codec)

LAN
2.5 Gigabit LAN 10/100/1000/2500 Mb/s
Dragon RTL8125BG
Supports Dragon 2.5G LAN Software
Smart Auto Adjust Bandwidth Control
Visual User Friendly UI
Visual Network Usage Statistics
Optimized Default Setting for Game, Browser, and Streaming Modes
User Customized Priority Control

Wireless LAN
802.11ac Wi-Fi Module
Supports IEEE 802.11a/b/g/n/ac
Supports Dual-Band (2.4/5 GHz)
Supports high speed wireless connections up to 433Mbps
Supports Bluetooth 5.0

Slots
CPU:
1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode
Chipset:
2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)
1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
15µ Gold Contact in VGA PCIe Slot (PCIE1)

Storage
CPU:
1 x Hyper M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
1 x Hyper M.2 Socket (M2_2, Key M), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode
Chipset:
4 x SATA3 6.0 Gb/s Connectors

RAID
Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

USB
CPU:
1xx USB 3.2 Gen1 Type-A (Rear (USB32_3))
Chipset:
2 x USB 3.2 Gen1 Type-C (1 Rear, 1 Front)
4 x USB 3.2 Gen1 Type-A (2 Rear (USB32_1 and USB32_2), 2 Front)
6 x USB 2.0 (2 Rear, 4 Front)

Connector
1 x SPI TPM Header
1 x Power LED and Speaker Header
1 x RGB LED Header
3 x Addressable LED Headers
2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)
3 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
1 x Front Panel Audio Connector
2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)
1 x Front Panel Type C USB 3.2 Gen1 Header

Rear Panel I/O
2 x Antenna Ports
1 x HDMI Port
1 x DisplayPort 1.4
1 x USB 3.2 Gen1 Type-C Port
3 x USB 3.2 Gen1 Type-A Ports
2 x USB 2.0 Ports
1 x RJ-45 LAN Port
1 x BIOS Flashback Button
HD Audio Jacks: Line in / Front Speaker / Microphone

Software and UEFI
Software
ASRock Motherboard Utility (A-Tuning)
ASRock Dragon 2.5G LAN Software
ASRock Polychrome SYNC
UEFI
ASRock Full HD UEFI
ASRock Auto Driver Installer
ASRock Instant Flash

Accessories
1 x I/O Shield
2 x SATA Data Cables
2 x ASRock WiFi 2.4/5 GHz Antennas

Form Factor
Micro ATX Form Factor: 9.6-in b 8.9-in, 24.4 cm x 22.6 cm

OS
Microsoft Windows 10 64-bit / 11 64-bit

Certifications
FCC, CE
ErP/EuP ready (ErP/EuP ready power supply is required)

• Socket: AM5
• CPU Compatibility: AMD Ryzen 9000/8000/7000
• Chipset: AMD A620
• Form Factor: Micro ATX
• Memory Slots: DDR5 - 2 Slots
• M.2 Compatibility: PCIe4.0 x 4
• USB C: Yes
