ASRock B450 PRO4 R2.0 ATX Motherboard AM4 DDR4 Dual M.2 USB 3.2
ASRock B450 PRO4 R2.0 ATX Motherboard AM4 DDR4 Dual M.2 USB 3.2
ASRock B450 PRO4 R2.0 ATX Motherboard AM4 DDR4 Dual M.2 USB 3.2
ASRock B450 PRO4 R2.0 ATX Motherboard AM4 DDR4 Dual M.2 USB 3.2
ASROCK

ASRock B450 PRO4 R2.0 ATX Motherboard AM4 DDR4 Dual M.2 USB 3.2

Product SKU: ASMBB450PRO4R2
Available:
Only 0 item in stock
0 item in stock
In stock
Pre-order
Out of stock
£71.95
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Shipping & Returns

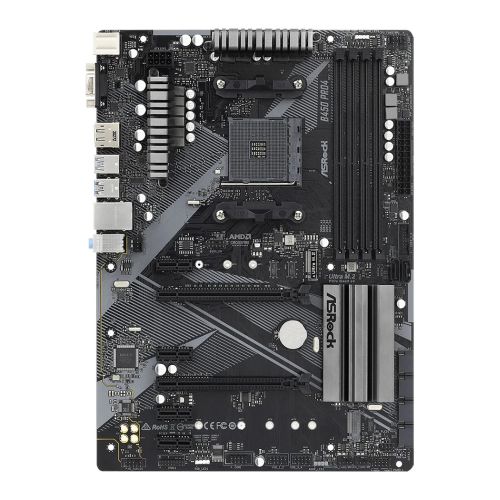

ASRock B450 PRO4 R2.0 AMD AM4 ATX Motherboard

The ASRock B450 PRO4 R2.0 is an ATX motherboard designed for AMD Ryzen processors on the AM4 socket. Compatible with Ryzen 2000, 3000, and 5000 series desktop processors, this motherboard delivers reliable performance for gaming and productivity builds.

Memory and Expansion

Supporting up to 128GB of DDR4 memory across four DIMM slots with speeds up to 3200MHz (overclocked), the B450 PRO4 R2.0 provides ample capacity for demanding applications. The board features two PCIe 3.0 x16 slots and four PCIe 2.0 x1 slots, with AMD Quad CrossFireX support for multi-GPU configurations.

Storage Options

This motherboard includes six SATA III ports and dual M.2 slots for high-speed storage. The first M.2 slot supports PCIe Gen3 x4 with transfer speeds up to 32Gb/s, while the second supports both PCIe Gen3 x2 and SATA3 M.2 modules. RAID 0, 1, and 10 configurations are supported for enhanced data protection and performance.

Connectivity

The rear I/O panel provides comprehensive connectivity including dual USB 3.2 Gen2 ports (Type-A and Type-C) delivering 10Gbps transfer rates, four USB 3.2 Gen1 ports, and two USB 2.0 ports. Additional USB headers on the board support two more USB 2.0 and one USB 3.2 Gen1 front panel connection. Gigabit Ethernet via Realtek LAN ensures reliable network connectivity.

Graphics Output

Three display outputs (D-Sub, HDMI, and DisplayPort 1.2) support triple monitor setups when using Ryzen processors with integrated graphics. The HDMI port supports 4K resolution for high-definition displays.

Power Delivery and Build Quality

The 10-phase power design ensures stable voltage delivery to the CPU with enhanced overclocking capabilities. ASRock's Super Alloy design incorporates premium power chokes, solid capacitors, and 2oz copper PCB layers for improved thermal performance and durability. The digital PWM design provides more efficient CPU Vcore voltage regulation compared to analog power delivery.

Audio and Software

7.1 channel HD audio powered by Realtek ALC892/897 codec delivers quality sound output. ASRock's A-Tuning software provides system monitoring and optimization tools, while Full Spike Protection safeguards sensitive components from voltage surges. AMD StoreMI technology combines SSD speed with HDD capacity for intelligent storage management.

Package Contents

Includes two SATA data cables, M.2 mounting screws, and comes with a 2-year replacement warranty.

  • Supports AMD AM4 Socket Ryzen™ 2000, 3000 and 5000 Series Desktop Processors
  • Supports DDR4 3200+ (OC)
  • 2 PCIe 3.0 x16, 4 PCIe 2.0 x1
  • AMD Quad CrossFireX™
  • Graphics Output: HDMI, Display Port, D-Sub
  • 7.1 CH HD Audio (Realtek ALC892/897 Audio Codec)
  • 6 SATA3, 1 Ultra M.2 (PCIe Gen3 x4), 1 M.2 (PCIe Gen3 x2 & SATA3)
  • 2 USB 3.2 Gen2 (Rear Type A+C)
  • 6 USB 3.2 Gen1 (2 Front, 4 Rear)
  • Realtek Gigabit LAN




10 Power Phase Design

Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.

Dual M.2 For SSD

One PCIe Gen3 x4 Ultra M.2 interface that pushes data transfer speeds up to 32Gb/s. The other one supports PCIe Gen3 x2 & SATA3 M.2 modules.

Dual USB 3.2 Gen2 (Type-A + Type-C)

This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates.

2oz Copper

It comes with 2 ounces copper inner layers, using only carefully selected copper materials for PCB layers, delivering lower temperature and higher energy efficiency for overclocking.

AMD StoreMI Technology

A powerful tool that combines the speed of your SSD with the capacity of your hard disk into a single, fast, easy-to-manage drive, AMD StoreMI technology "combines" these two types of storage into a single drive and automatically moves the data you access the most to the SSD, so you get the best of both worlds.





Super Alloy Motherboard
Premium Power Choke
Compared to traditional chokes, ASRock's premium power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.
2oz Copper PCB
Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.



3 Graphics Outputs

Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo. Plus the HDMI port supports 4K resolution.
*Supported only with processors with integrated graphics. Please check CPU support list from each motherboard webpage.



Triple Monitor

Graphics, graphics and even more graphics! You've demanded for more eye candy, so this motherboard supports Triple Monitor. You may choose up to three display interfaces from the rear i/o to connect monitors and use them simultaneously without installing another graphics card.
*Supported with processors with integrated graphics only.



Solid Capacitor Design

ASRock applied solid capacitors on this motherboard. With these solid caps, this motherboard is allowed to perform more stably and ensure longer lifetime.




Digi Power

Unlike traditional motherboards that use analog power, this motherboard uses a next generation digital PWM (Pulse-Width Modulation) design, which provides CPU Vcore voltage more efficiently and smoothly, so that the stability and lifespan of the motherboard is greatly enhanced.




A-Tuning

A-Tuning is ASRock's multi purpose software suite with a new interface, more new features and improved utilities.




Full Spike Protection

Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard's components from being damaged by these unexpected voltage spikes.




Live Update & APP Shop

ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop

Description

Specification

  • Motherboard Type: Desktop
  • Form Factor: ATX
  • Socket: AMD AM4
  • Chipset: AMD B450
  • #Hide#DDR Type: DDR4
  • CPU Support: Click here for CPU support
  • RAM Technology: DDR4 (Dual Channel)
  • RAM Slots: 4 x DIMM
  • RAM Speeds: Up to 3200 MHz
  • Maximum Memory: 128GB
  • Graphics: Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU
  • Graphics Ports: 1 x VGA
    1 x HDMI
    1 x DisplayPort 1.2
  • Multi-GPU Support: Supports AMD Quad CrossFireX
  • PCI/PCI Express: 2 x PCIe 3.0 x16
    4 x PCIe 2.0 x1
  • Storage: 6 x SATA III
    1 x Ultra M.2 (2242/2260/2280) - PCIe
    1 x M.2 (2230/2242/2260/2280/22110) - SATA & PCIe
  • RAID: "RAID 0, 1, 10 "
  • Wireless: -
  • LAN: GB LAN
  • Audio: 7.1 CH HD Audio with Content Protection (Realtek ALC892/897 Audio Codec)
  • USB Ports Supported: "2 x USB 3.2 Gen2 (Type A & C at back)
    6 x USB 3.1 Gen1 (4 at back, 2 at mid-board)
    6 x USB 2.0 (2 at back, 4 at mid-board)"
  • Back Panel I/O Ports: 1 x PS/2 Mouse/Keyboard
    1 x D-Sub
    1 x HDMI
    1 x DisplayPort 1.2
    2 x USB 2.0
    1 x USB 3.2 Gen2 Type-A
    1 x USB 3.2 Gen2 Type-C
    4 x USB 3.2 Gen1
    1 x RJ-45 LAN
    HD Audio Jacks
  • Internal I/O Connectors: 1 x COM Port
    1 x TPM
    1 x Power LED and Speaker
    1 x RGB LED
    1 x Addressable LED
    1 x AMD Fan LED
    1 x CPU Fan
    1 x CPU/Water Pump Fan
    3 x Chassis/Water Pump Fan
    1 x 24 pin ATX
    1 x 8 pin 12V
    1 x Front Audio
  • .: 2 x USB 2.0
    1 x USB 3.2 Gen1
  • Accessories: 2 x SATA Data Cables
    2 x Screws for M.2 Sockets
  • Additional Features: See Overview
  • Package Type: Retail
  • Package Weight: 1.3020 kg
  • Warranty: 2 Year Replacement Warranty
  • #Hide#M.2 Slot(s): Yes (M.2)
  • #Hide#No. LAN Ports: 1 x LAN
  • #Hide#Max LAN Speed: GB LAN
