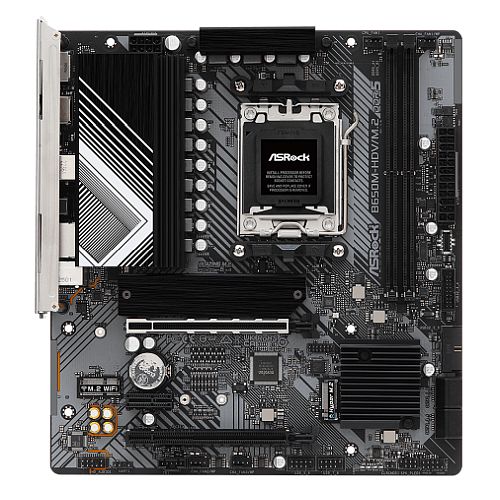

Asrock B650M-HDV/M.2, AMD B650, AM5, Micro ATX, 2 DDR5, HDMI, DP, 2.5G LAN, PCIe4, 2x M.2
Asrock B650M-HDV/M.2, AMD B650, AM5, Micro ATX, 2 DDR5, HDMI, DP, 2.5G LAN, PCIe4, 2x M.2
Asrock B650M-HDV/M.2, AMD B650, AM5, Micro ATX, 2 DDR5, HDMI, DP, 2.5G LAN, PCIe4, 2x M.2
Asrock B650M-HDV/M.2, AMD B650, AM5, Micro ATX, 2 DDR5, HDMI, DP, 2.5G LAN, PCIe4, 2x M.2
ASROCK

Asrock B650M-HDV/M.2, AMD B650, AM5, Micro ATX, 2 DDR5, HDMI, DP, 2.5G LAN, PCIe4, 2x M.2

Product SKU: ASMBB650MHDVM.2
Available:
Only 90 items in stock
90 items in stock
In stock
Pre-order
Out of stock
£109.79
Notify me When Available
You will receive an email when the product is available.
Want it delivered by
  • Description
  • Shipping & Returns





B650M-HDV/M.2


  • Supports AMD Socket AM5 Ryzen™ 7000 Series Processors
  • 8+2+1 Power Phase, Dr.MOS
  • Supports DDR5 6400+ MHz (OC)
  • 2 PCIe 4.0 x16, 1 PCIe 4.0 x1, 1 M.2 Key E for WiFi
  • Integrated AMD RDNA™ 2 Graphics*
  • Graphics Output Options: HDMI, DisplayPort
  • Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
  • 4 SATA3, 1 Blazing M.2 (PCIe Gen5x4),
  • 1 Hyper M.2 (PCIe Gen4x4)
  • 1 USB 3.2 Gen2 Front Type-C,
  • 7 USB 3.2 Gen1 (2 Rear, 1 Rear Type-C, 4 Front)
  • Dragon 2.5G LAN
  • Supports ASRock Auto Driver Installer, BIOS Flashback
  • Pre-Installed I/O Shield





Optimized VRM Design
  • Dr. MOS - Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.
  • 8+2+1 Power Phase Design - Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.
  • 2oz Copper PCB - 2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.




DDR5 Memory with Protection Circuit

Due to the unique electrical architecture of DDR5 DIMM, there’s a high risk of damaging the memory module if AC power isn’t disconnected properly during removal or installation. To prevent this, ASRock has implemented a trouble free protection circuit on every DDR5 motherboard, lowers the risk of damaging your memory module.





Reinforced Steel Slot [PCIe 4.0 Version]

The reinforced steel slot is capable of supporting PCI Express 4.0 standard. The various benefits include:
  • Extra anchor points
  • Stronger latch
  • Ensure signal stability
  • Make sure heavy graphics cards to be well-installed.




Nahimic Audio
  • Audio That Matters - Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.
  • Enhance Communication Quality - The Powerful algorithms to ensure the best noise-free conversation, giving a constant vocal level no matter the distance from your mic. The Nahimic audio engine dynamically clear the sound and remove interference noise and lower the voice variation. Result is a better comprehension and less fatigue.
  • Sound Tracker - The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.
  • Works on any devices - Enjoy the vibrant and high-quality Surround Sound on all your favorite audio devices: Jack, USB, Bluetooth, HDMI, S/PDIF. Nahimic is compatible with all of your favorite audio tools and ensures the best sound with any of them. Nahimic measure and improve to optimize our technology and offer you the best experience.




PCIe Gen5 Blazing M.2

The Blazing M.2 accommodates the latest PCI Express 5.0 standard to perform twice the bandwidth compared to previous generation, with a breathtaking 128Gb/s transfer speed, it is ready to unleash the full potential of future ultrafast SSDs.





Dragon 2.5 Gb/s LAN

The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.





Front USB 3.2 Gen2 Type-C

Front USB 3.2 Gen2 Type-C header delivers up to 10 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.





M.2 (KEY E) For WiFi

Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.
*Wi-Fi module is not included.





EZ Setting
  • Auto Driver Installer - Optical drive or driver DVD is no longer needed! ASRock motherboard already has its Ethernet driver prepacked in BIOS ROM, once finish installing the operation system, simply follow the instructions and allow ADI to download and install all necessary drivers automatically!
  • BIOS Flashback - Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and power supply, No CPU, RAM or other components required.
  • Pre-Installed IO Shield - ASRock strives offer only the cutting edge technology with the most user-friendly design. The pre-installed IO Shield design makes motherboard to be well-installed in the chassis precisely for preventing any interferences and speed up the set-up process.





Description

Specification

  • Motherboard Type: Desktop
  • Form Factor: Micro ATX
  • Socket: AMD AM5
  • Chipset: AMD B650
  • #Hide#DDR Type: DDR5
  • CPU Support: Click here for CPU support
  • RAM Technology: DDR5 (Dual Channel)
  • RAM Slots: 2 x DIMM
  • RAM Speeds: Up to 6400+(OC)
  • Maximum Memory: 128GB
  • Graphics: Integrated Graphics*

    *Graphics specifications may vary between CPU types
  • Graphics Ports: 1 x HDMI
    1 x DisplayPort
  • Multi-GPU Support: Supports AMD CrossFire
  • PCI/PCI Express: 1 x PCIe 4.0 x16 (supports x16 mode)
    1 x PCIe 4.0 x16 (supports x4 mode)
    1 x PCIe 4.0 x1
  • Storage: 4 x SATA III
    1 x M.2 (2280) - PCIe
    1 x M.2 (2260/2280) - PCIe
  • RAID: "Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
    Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices"
  • Wireless: -
  • LAN: 2.5GB LAN
  • Audio: 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
  • USB Ports Supported: "1 x USB 3.2 Gen1 Type-C (at back)
    6 x USB 3.2 Gen1 Type-A (2 at back, 4 at mid-board)
    8 x USB 2.0 (4 at back, 4 at mid-board)
    1 x Front USB 3.2 Gen2 Type-C connector"
  • Back Panel I/O Ports: 2 x Antenna Mounting Points
    1 x HDMI
    1 x DisplayPort 1.4
    1 x USB 3.2 Gen1 Type-C
    2 x USB 3.2 Gen1 Type-A
    4 x USB 2.0
    1 x RJ-45 LAN
    1 x BIOS Flashback Button
    HD Audio Jacks
  • Internal I/O Connectors: 1 x SPI TPM
    1 x Power LED and Speaker
    1 x CPU Fan
    3 x Chassis/Water Pump Fan
    1 x 24 pin ATX
    1 x 8 pin 12V
    1 x Front Panel Audio
    1 x Thunderbolt AIC
    2 x USB 2.0
    2 x USB 3.2 Gen1
    1 x Front Panel Type-C USB 3.2 Gen2
  • Accessories: 1 x User Manual
    2 x SATA Data Cables
    2 x Screws for M.2 Sockets
  • Additional Features: See Overview
  • Package Type: Retail
  • Package Weight: 1.3500 kg
  • Warranty: 3 Year Replacement Warranty
  • #Hide#M.2 Slot(s): Yes (M.2)
  • #Hide#No. LAN Ports: 1 x LAN
  • #Hide#Max LAN Speed: 2.5GB LAN
